Do I need to solder with this connector?

No, this is a completely solderless connector. It uses a piercing mechanism that requires a pair of pliers to clamp down and secure the connection.

Will this work with my regular SMD 5050 RGB+CCT strip?

No, this connector is specifically engineered for the unique board layout of 12mm wide COB RGBCCT LED strips and will not align correctly with standard SMD strips.

What is the difference between the 'Connector Only' and '15CM Extension' options?

The 'Connector Only' option provides a direct, rigid connection between two strip ends for a seamless look. The '15CM Extension' has two connectors linked by a flexible 15cm wire, perfect for bridging gaps or going around corners.

Is this connector waterproof?

No, this is an IP20-rated connector and is designed for use in dry, indoor locations only.

How do I ensure a good, reliable connection?

Make sure the strip is fully inserted and the copper pads are aligned under the pins. Use pliers to apply firm, even pressure until the contacts are fully seated and you feel them click into place.

Can I reopen the connector after it has been clamped down?

While it may be possible to carefully pry it open, the connector is designed for a single, permanent connection. Reopening and reusing it may result in a less reliable connection.

Spec Sheet - RGBCCT-COB-6Pin

Select Connector Type:	1*Strip to Strip Connector Only (Base), Strip to Strip 15CM Extension Connector
Availability	In Stock
Condition	Brand New

Achieve clean, secure, and solder-free connections for your lighting projects with the 6-Pin 12mm Board-to-Board Connector, engineered specifically for COB RGBCCT LED strips. This connector utilizes a unique clamp-down piercing method to create a robust electrical and mechanical bond. Simply insert the strip and use pliers to press the contacts, which pierce the PCB for a lasting connection.

Available in two convenient styles: a compact board-to-board joiner for creating perfectly seamless long runs, or a version with a flexible 15cm extension wire to easily navigate corners, bridge gaps over appliances, or create custom-length jumpers. This design eliminates the need for soldering, making it ideal for both professional installers and DIY enthusiasts looking to customize their COB LED strip lights installations quickly and reliably.

6 Pin Board to Board COB RGBCCT LED Strip Light Connector

Key Features

Solderless Piercing Connection

Features sharp metal pins that pierce the strip's PCB using pliers, ensuring a highly reliable connection without any soldering.

Engineered for COB Strips

Specifically designed to match the unique circuit layout of 12mm wide, 6-pin COB RGBCCT LED strip lights for perfect alignment.

Two Connection Styles

Choose between a direct board-to-board connector for seamless extensions or a 15cm flexible wire version for navigating corners and gaps.

Durable & Secure

Constructed from high-quality plastic and metal components to provide a stable, long-lasting connection for your lighting system.

Technical Highlights

Transparent housing allows for visual confirmation of proper strip alignment before closing.
Designed to maintain the full functionality of RGBCCT lighting, transmitting all 6 channels accurately.

Product Specifications

Parameter	Details
Product Model	RGBCCT-COB-6Pin
Product Type	COB LED Strip Connector
Pin Count	6-Pin
Compatible PCB Width	12mm (0.47")
Compatible Strip Type	COB RGBCCT LED Strip Lights
Connection Method	Solderless, Insulation Piercing (Pliers required)
Available Options	Strip to Strip (Direct), Strip to Strip (15cm Extension)
Material	Plastic + Metal
IP Rating	IP20 (Non-waterproof)
Application	Indoor, dry locations only

Application Scenarios

Extending Under-Cabinet & Cove Lighting Seamlessly join two sections of a COB RGBCCT strip to create a long, continuous run of dotless light. The direct board-to-board connector is perfect for making cut strips appear as a single, uninterrupted fixture.

Navigating Corners and Obstacles Use the 15cm extension connector to bridge gaps around kitchen appliances, cabinet frames, or wall corners. This flexibility allows you to maintain a continuous lighting circuit without needing to awkwardly bend the LED strip itself.

Custom LED Projects & Repairs Ideal for DIY lighting enthusiasts and professionals who need to repair a damaged section or modify an existing installation. Quickly add or replace segments of COB RGBCCT LED strips without the hassle of a soldering iron.

How to Use This COB Strip Connector

Ensure all power to the LED strip is disconnected before installation.

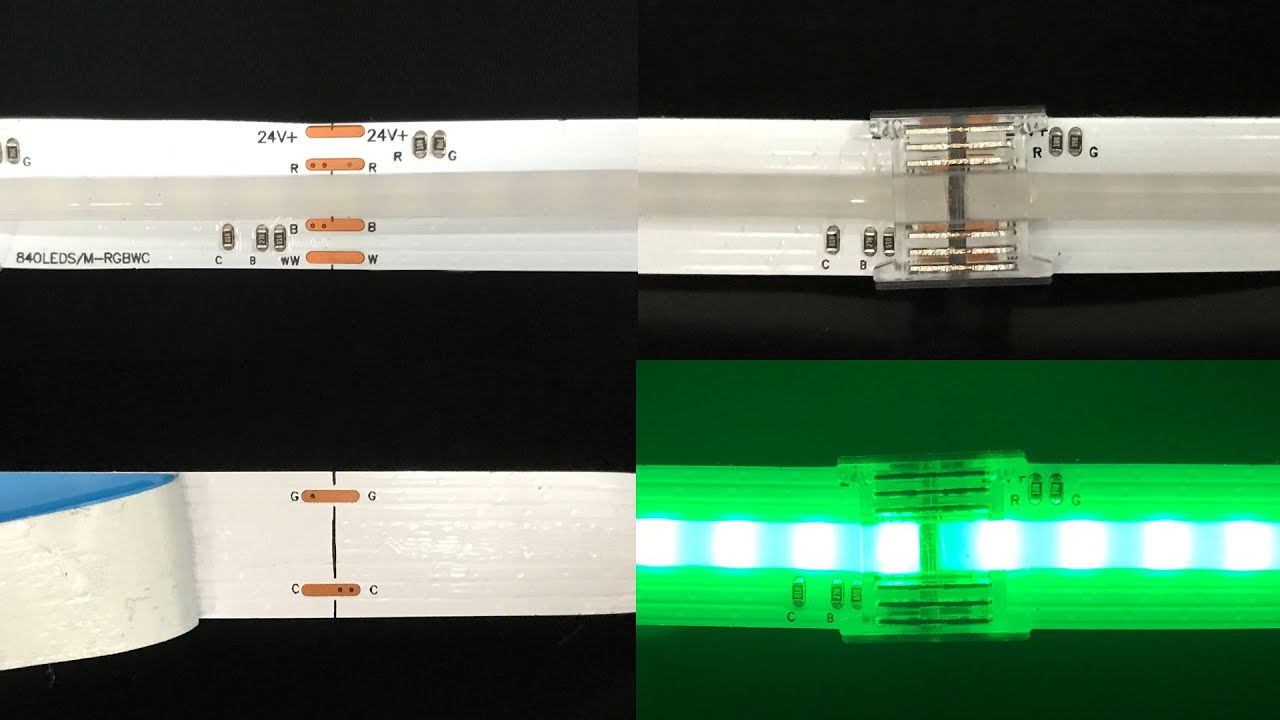

Carefully slide the end of your 12mm COB RGBCCT LED strip into the connector. Ensure the strip is fully seated and the 6 copper pads on the strip align with the 6 metal pins inside.
Using a pair of pliers, apply firm and even pressure across the metal contacts on the connector. The pins will pierce through the strip's PCB, securing the connection.
Repeat the process for the second strip end.
Once both sides are secured, you can reconnect power and test your lighting connection.

[ VIDEO: Watch on YouTube ]

⚠ Precautions

This connector is designed exclusively for 12mm wide, 6-pin COB RGBCCT LED strips. It is not compatible with SMD strips or other widths/pin counts.
A firm press with pliers is essential. An incomplete connection may result in flickering or non-functioning color channels.
Verify the polarity and channel alignment of the strips before clamping the connector to ensure correct color output.
This is an IP20 rated connector intended for use in dry, indoor environments only.

What's in the Box

✓1x Selected 6-Pin 12mm COB RGBCCT LED Strip Connector (Direct or 15cm Extension)

6-Pin 12mm Board to Board COB RGBCCT LED Strip Light Connector
