| Select Input Voltage: | DC24V (Base), DC12V (Base) |
|---|---|
| Select Kit: | LED Strips (Base), LED Strips + Power Adapter, LED Strips + IP67(Power Supply), LED Strips + Power Supply |
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | Warm White(3000K) (Base), Natural White(4000K) (Base), Daylight White(6000K) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base) |
| Availability | In Stock |
| Condition | Brand New |

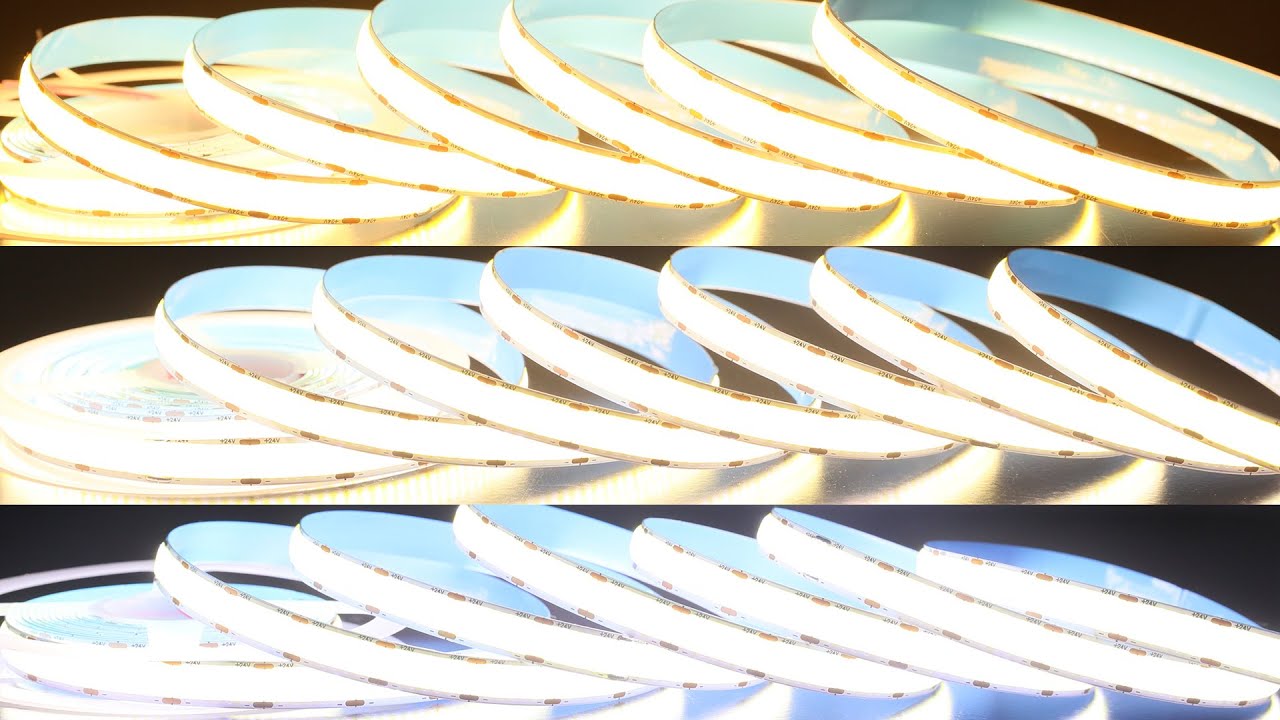

Another version of the Super Bright Double Row COB LED Strip series. The light emitting layer of this led COB strip evenly covers two rows of white light on-board LED chips to achieve higher brightness on a 12mm PCB width. Compatible with 3000K warm white, 4000K natural white, and 6000K daylight white, the 12V/24V chip on board led strip brings bright ddotless illumination to your bedroom and other indoor home locations.
Every 22.74mm/0.9inch can be cut, there is no 12mm wide cob led connector for the time being, so you can only connect the two cob light strips by soldering. 12-volt or 24-volt DC power injection, easy to use 5 meters distance. Please supply extra power if there is a color inconsistency when using multiple dual row cob strip lights.
Kit: power adapter PSPS-24V-120W, power supply LRS-100-24, IP67 power supply PSWP-24V-150W.
Product Specification
| LED Strip Type: | Ultra Bright LED Dual COB Lighting Strip |
| Input Voltage: | DC12V/ 24V |
| LED Quantity: |
616 Chips/m for 24V; 624 Chips/m for 12V |
|
LED Color:
|
Warm White(3000K), Nature White(4000K), Daylight White(6000K) |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| Power: | 18W/m |
| Dimension: | L5000mm*W12mm*H1.6mm |
|
Cut Length:
|
22.74mm/0.9"
|
| Waterproof Rating: | IP20 For Indoor |
|
Lumen:
|
88 lm/W
|
| Beam Angle: | 180° |
| Color Rendering Index: | Ra>90 |
