Check out this ESP32 WLED controller equipped with over 100 color changing modes, suitable for controlling RGB and RGBW digital LED tape. There are black and white color versions for you to choose from, and this wled compatible controller also supports mott and home assistant automation. With cycling function, controller esp32 can control up to 800 ICs and is able to synchronize the various light stripe' lighting effects under the same wifi network. Segmented color control function allows you to freely decide the color and brightness of every part of LED strip, creating different room atmospheres.

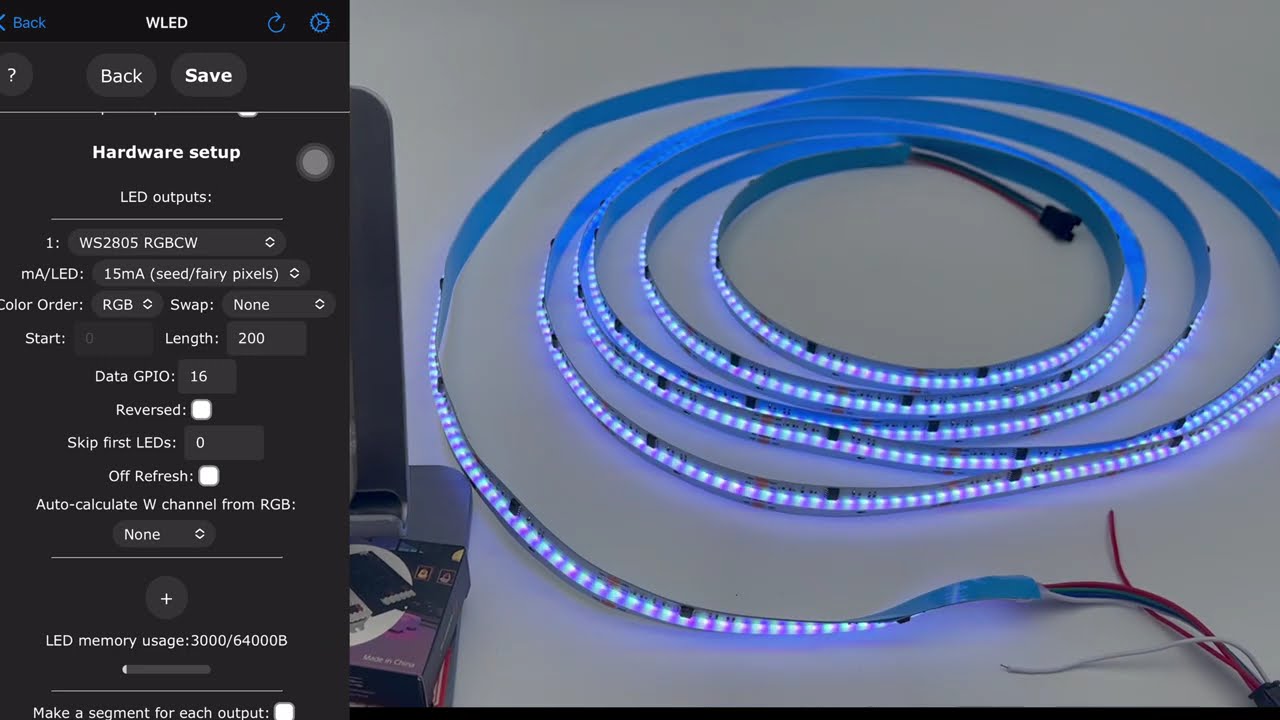

This WLED controller can support a total of three output channels. The output terminal connections "G D V" correspond to the "GND DATA VCC" pins of the digital LED strips. Among them, D refers to the default output group for GPIO16, so please prioritize using this group. The other group, D for GPIO2, can only be used after configuration in the APP. IO33 is an extended GPIO signal port that can be customized for use.
Its waterproof verison is GL-C-012WL model.
Compatible IC Chips: WS2811 2812B 2813 2814 2815/GS8208/SM16703P SK6812 /TM1814 etc. (All WLED digital controllers with version 0.15 or higher can control WS2805 RGBCCT led IC lights.)
WLED Controller Manual
| Product Name: |
WIFI ESP32 WLED Controller to Control RGB and RGBW Pixel LED Tape |
| Model: | GL-C-015WL |
| Input Voltage: | DC5-24V |
| Output Current/Channel: | Max 10A |
| Total Output Current: | Max 15A |
| Wireless Connection: | Wifi |
| Dimensions: | L108mm*W45mm*H18mm |
| Working Temperature: | -20℃ ~ 45℃ |
| IP rating: | IP20 |
| Control Chip Quantity: | 800 IC Max |
