| Availability | In Stock |
|---|---|
| Condition | Brand New |

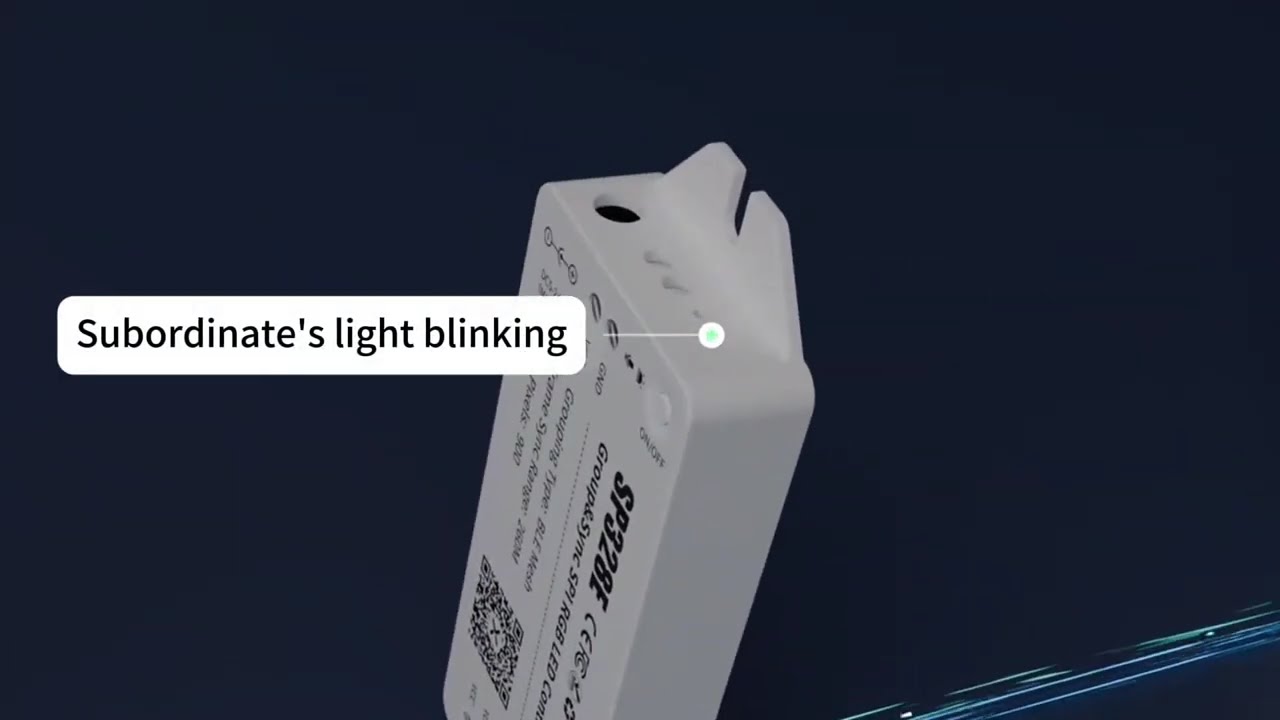

The SP328E is an RGB addressable LED strip controller designed to control SPI RGB LED strips. Utilizing Bluetooth mesh technology, this RGB LED controller features grouping and unified management of devices. It supports control via the BanlanX App, supporting user to add up to 200 devices through APP, such as the SP328E. These devices can be grouped together via the app, which ensures synchronized lighting effects across all devices. The RF amplification technology expands the synchronization signal transmission distance in a straight line within 260 meters.
The BanlanX App provides visual preview of lighting effects. You can create and switch different lighting scenes through the App. In addition, our addressable RGB LED controller support adjusting the light on/off, color temperature and color via App. The RGB LED controller has built-in dynamic lighting effects, facilitating the user's operation. If you want to have a unique visual experience, you can also create lighting effects freely. The SPI LED controller features a music mode that allows the lighting effects to synchronize with the rhythm of the music, creating a vibrant and dynamic atmosphere.
| Model: |
SP328E
|
| Working Voltage: |
5-24VDC
|
| Working Current: |
15mA-60mA
|
| Maximum Control Points: |
900
|
| Digital Type: |
SPI
|
| Working Temperature: |
-10℃~ +60℃
|
| IC Type: | Conventional return-to-zero code three-channel LED driver IC |
| Weight: | 0.1KG |
| Size: |
L118x W45 x H15mm (L4.64'' x W1.77'' x H0.59'')
|
| Control: | Bluetooth mesh |
Connection Diagram
