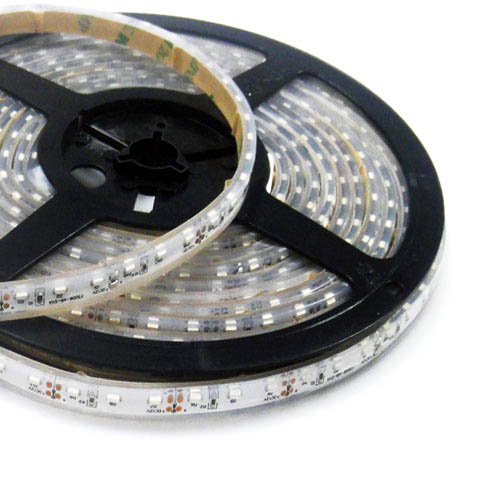

Side Emitting Series DC12/24V 3014SMD 480LEDs Flexible LED Strip Lights BackLighting Waterproof IP68 16.4ft Per Reel By Sale

Side Emitting series super slim super narrow single color super bright 3014 SMD(SMD:Surface Mounted Devices) Highest level Waterproof IP68 Flexible LED Tape strips, Epistar chip, 480LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP68 flexible light strips with adhesive backing and can be stuck just about anywhere (IP67 IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12/24V DC operation. Dimmable - See compatible LED dimmers.

Standards and Certifications

Product Specification

LED Strip Type:   SMD 3014  480PCS/16.4ft

LED Chip:   Super brights Chip

Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

Light Color:   Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

Dimension:   16.4ft/roll, every 3 PCS LED can be cut

LED Quantity:   96 LEDs per 1meter (3.28 ft)

Lifespan:   50,000+hours

Warantty:   3 years

Dimensions:     L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )

Input Voltage(V):   12/24VDC

Working Power:   3.2A 38.4W/16.4ft  Max

Lamp Luminous Flux(lm):   10~12lm/LEDs   5760lm/16.4ft

Color Temperature CCT(White):  Warm White(2800-3200k), Daylight White(5500-6500k), Cool White(7500-8000k)

Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

Beam Pattern:   120 degree

Water Proof:   Non-Waterproof ; waterproof IP65; waterproof IP67; waterproof IP68 optional

CRI (Ra>):  82

Color Temperature

Applications

1. Back/task lighting

2. Cove LED lighting

3. Retail LED lighting

4. Display case LED lighting

5. Accent LED lights

6. Under cabinet lighting

Waterproof Level Description

 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

 IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

 IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

 IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
