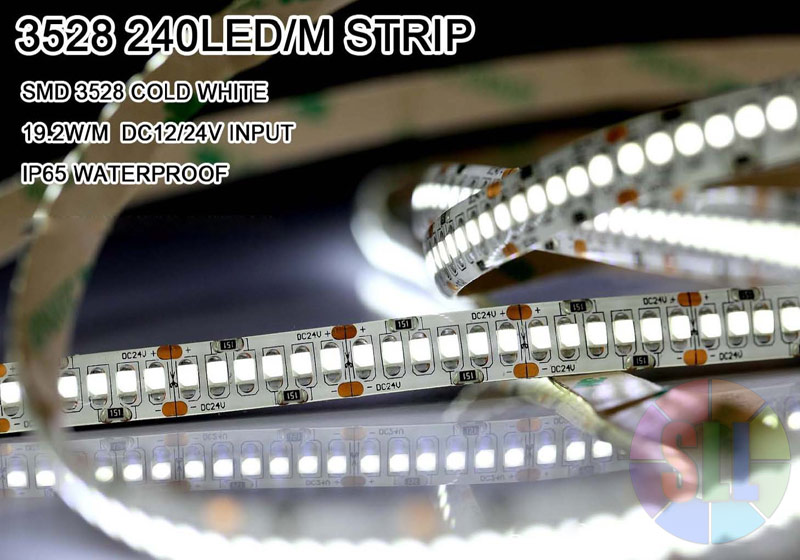

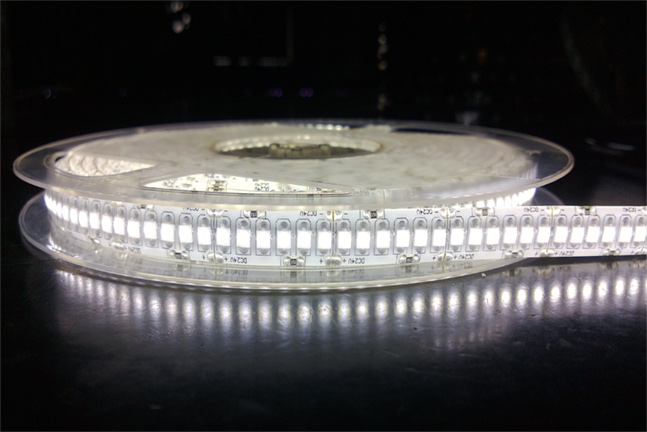

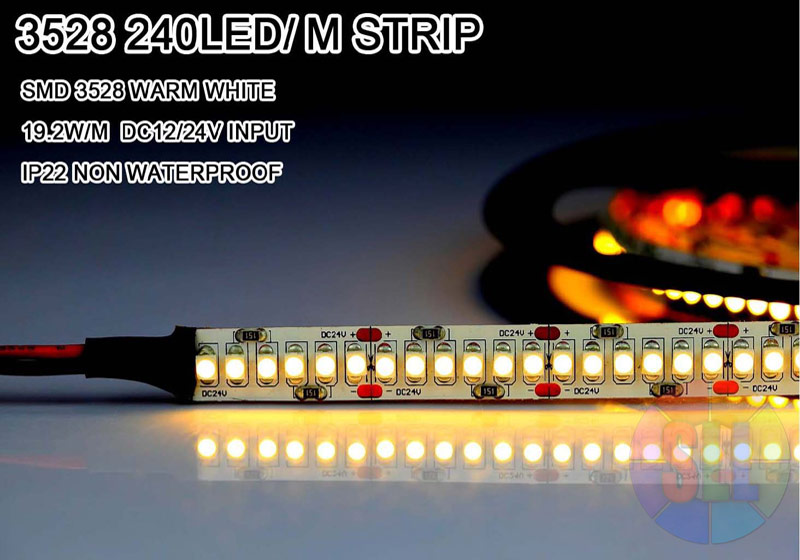

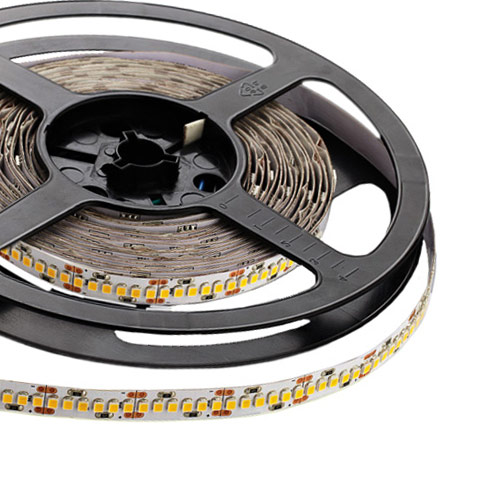

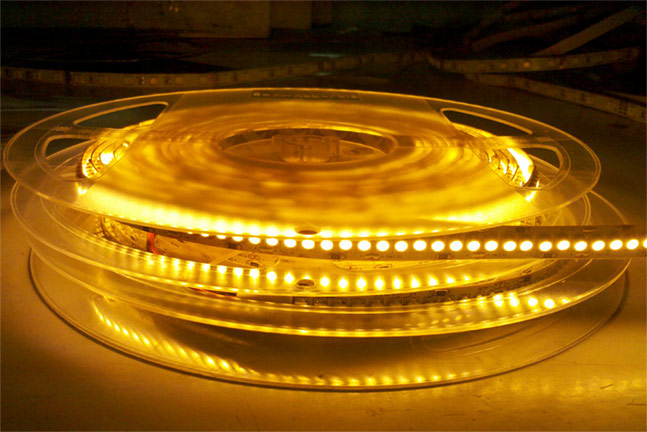

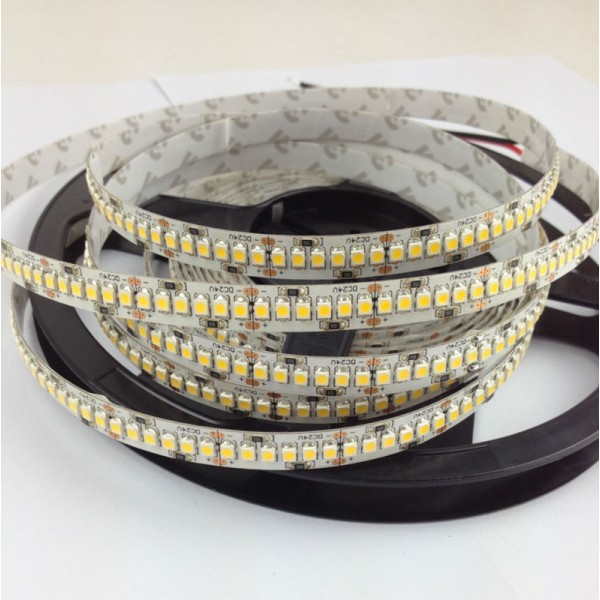

Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale

Model: FSLSR-24V-3528X1200
Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale
  • Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale

Select Specifications:

Select PCB Width:

Select PCB Color :

Starting at: $45.00 $29.9833% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$29.98
20-49
$29.38
50-99
$28.78
100+
$27.88
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Check our single row high density 240LEDs/m full spectrum light strip with super high CRI 98. Universal Single row single color super bright high density 3528 SMD(SMD:Surface Mounted Devices) Waterproof optional Flexible LED Tape strips, Epistar chip, 1200LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

    Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP65 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3/6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12/24VDC operation. Dimmable - Connect LED Smart Dimmers



    3528 240D Full Spectrum LED Strip Test Report



    Standards and Certifications

    DC12/24V CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof


    Product Specification

    LED Strip Type:   SMD 3528  1200PCS/16.4ft

    LED Chip:   Epistar Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

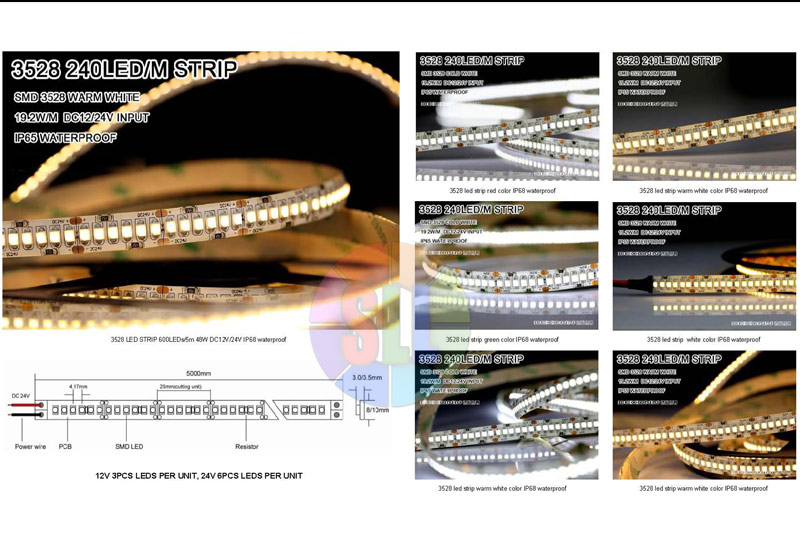

    Dimension:   16.4ft/roll, every 3/6 PCS LED can be cut

    LED Quantity:   240 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )

    Input Voltage(V):   12/24VDC

    Working Power:   96W /16.4ft  Max

    Lamp Luminous Flux(lm):   7~8lm/LEDs    9600lm/16.4ft

    Color Temperature CCT(White):  Warm White(2800-3200k), Daylight White(4500-6500k), Cool White(7000-9000k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

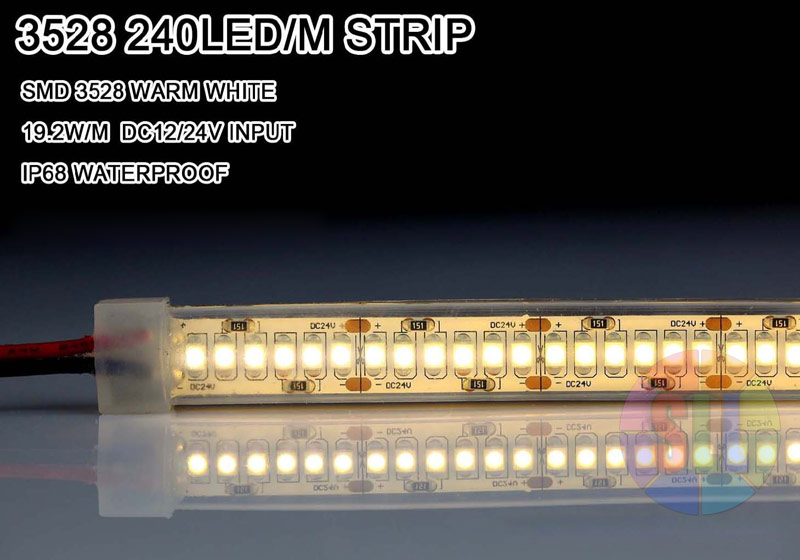

    Water Proof:   Non-Waterproof , Waterproof IP65,IP67,IP68 optional

    CRI (Ra>):  95



    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?

    LED strip color temperature



    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

    CRI led strip



    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.led strip waterproof level





    Installation Instruction

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will need

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements                 to many different surfaces.



    We sell led strips in spools of 32.8 Ft (10 meters). If you want to use with more than 32.8 Ft length, we recommend the following instruction:

    arrow Direct connecting

    arrow Multiple connecting

    arrow Two-way connecting



    1. LED Strips with a direct connecting diagram

    how to connect single color led strips

    2. Multiple Strips connecting diagram

    how to connect single color led strips

    3. Strips with a two-way connecting diagram

    how to connect single color led strips

    4.  You can also use our wireless controller,  Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring

    single color led strip light wiring diagram



    5. How does it work

    choose your led light stripsled power supplyled connectorled strip light dimmers

    The basics are all the similar. You will need a led strip light, a power supply, and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know:  sales@superlightingled.com



    Applications

    1. Channel letters

    2. cabinet lighting

    3. Concealed lighting

    4. Indoor Decorative

    5. Commercial lighting

    6. Shop window

    7. Display case lighting

    8. Accent lighting

    9. Cove lighting

    10. Back Lighting

    11. Architectural lighting



    white led strip light wiring diagram





    Single Row Super Brightest Series DC12/24V 3528SMD 1200LEDs Flexible LED Strip Lights, Decorative lighting, Waterproof Optional, 16.4ft Per Reel By Sale

    By : Michael Rebustillo Date Added: 11/01/2015

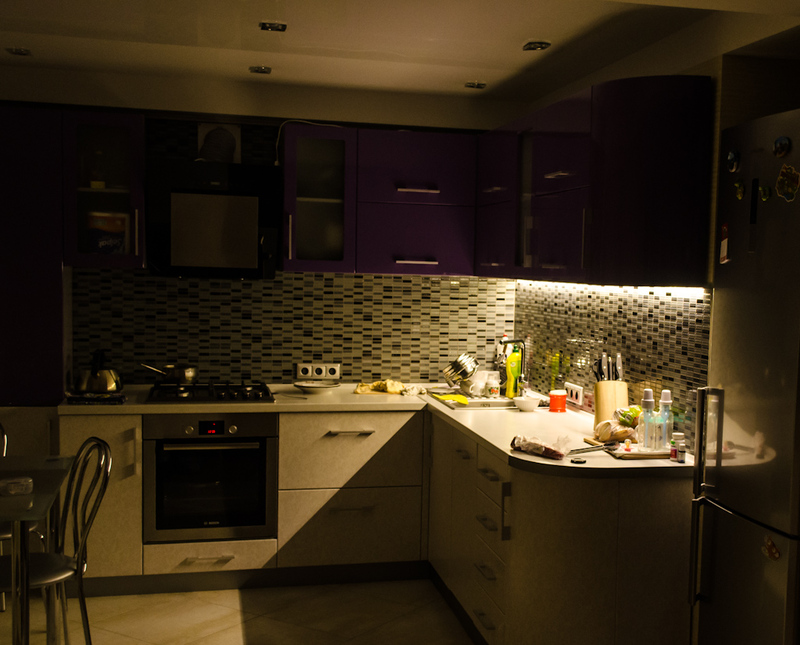

    I added this to my existing cabinet lighting and it made my backsplash really pop. I am very pleased with this strip.
    Rating: 5 or 5 stars

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
