SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E

Model: CONFULL-SP601E
SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E
  • SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E
  • SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E
  • SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E
  • SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E
  • SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E

Select Specifications:

Starting at: $20.98 $12.9838% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$12.98
5-9
$12.33
10-19
$11.68
20+
$10.38
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features

    1. The SP601E is one of the most powerful SPI controllers on the market. It has two output channels, each channel supports 600 pixels, you can control the two channels in sync or individually, very smart, suitable for various LED lighting projects, more details please watch the test video below.

    2. Phone APP via Bluetooth + 16Keys RF remote dual control methods, more convenient for the user.

    3. Supports many Addressable IC on the market, such as WS2811WS2812B, WS2813, WS2815, WS2818, GS8206, UCS1903, SK6812RGB/WWA, and so on.

    4. The controller has music functions, built-in mic, the lights will dance with the rhythm, like rhythm spectrum, rhythm of stars, beat ejection, gradient energy, pulse, ripple. You can also get the effects of rainbow, twinkle stars, fire, stacking, comet, wave, chasing, gradient, wiping, breath, pixel dot wiping, meteor rain, color dots, color block. The speed and length of the effects can be adjustable according to your needs.

    5. DC5-24 wide voltage range, reverse input protection

    6. User setting saving, memory function.

    7, Control pixel QTY:Each port control 600 IC . Two ports control 1200 IC . 600pixels/port



    Product Specification

    Product name:   SP601E WIFI LED controller

    Input Voltage:   DC5V-24V

    Can Be Control:  DC5V/12V/24V Addressable RGB LED Strips

    Support Pixels:   600 pixels/channel  max

    Support IC:   WS2811(WS2812/WS2813/WS2815/WS2818)/WS2801/UCS1903/SM16716/LPD6803/LPD8806/LPD9813 etc

    Remote distance:   30meters( 98feet)

    Control mode:   APP (iOS or Android)

    APP name:   BanlanX

    Music Control:   Built-in MIC

    Effect:   more than 36 dynamic effect

    Memory:   Automatic memory function

    Speed Control:   adjustable

    Size:   L85*W45*H22mm



    App control

    Both IOS version and Android OS version

    Requires IOS version 10.0 or later;

    Requires Android OS version 4.4 or later;

    Search ”BanlanX” in the App Store or Google Play or scan this QR code to download and install the App.

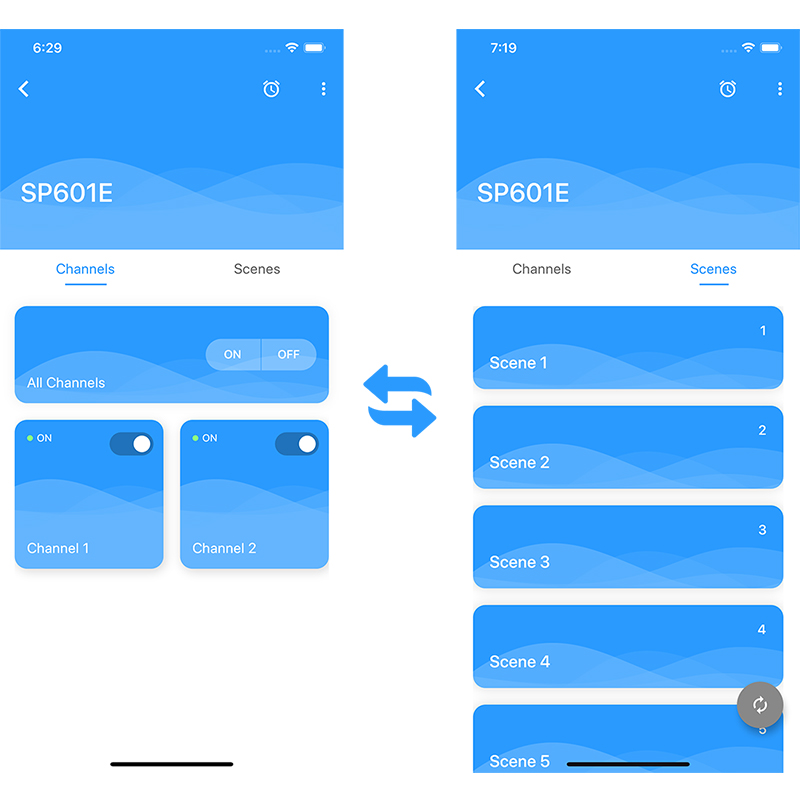

    SP601E WIFI LED controller operating instructions


    1. Connect to a new SP601E controller.

    2. SP601E can output two different signals, and supports 9 scenes.

    3. You save the current lighting effect settings to these scenes.

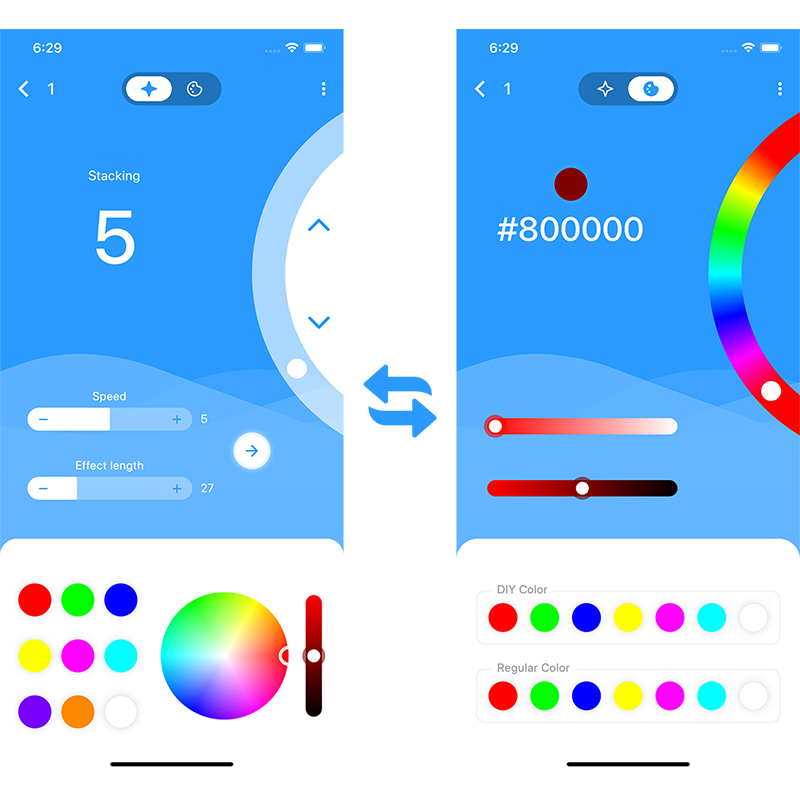

    4. 36 built-in dynamic effects (1-24: general dynamic effects,25-36: music effects) and solid color effect.

    5. You can enter the RGB value of the color directly in solid color effect,

    6. You can save your favorite colors.

    7. SP601E can be set up to 5 timers.



    Supported chip

    WS2811、WS2812、WS2813、WS2801、SK6812-RGB、SK6812-WWA、LPD6803、LPD8806、UCS1903、UCS9812、APA102、APA104、TM1803、TM1804、TM1809、TM1812、TM1914、SM16703


    Note:
    1, Power supply/phone/controller/led strip not include.
    2, This phone only support 2.4G WiFi network.Can't support 5.0G WiFi network.
    3, This app support Android 4.4 or above, IOS 10.0 or above.

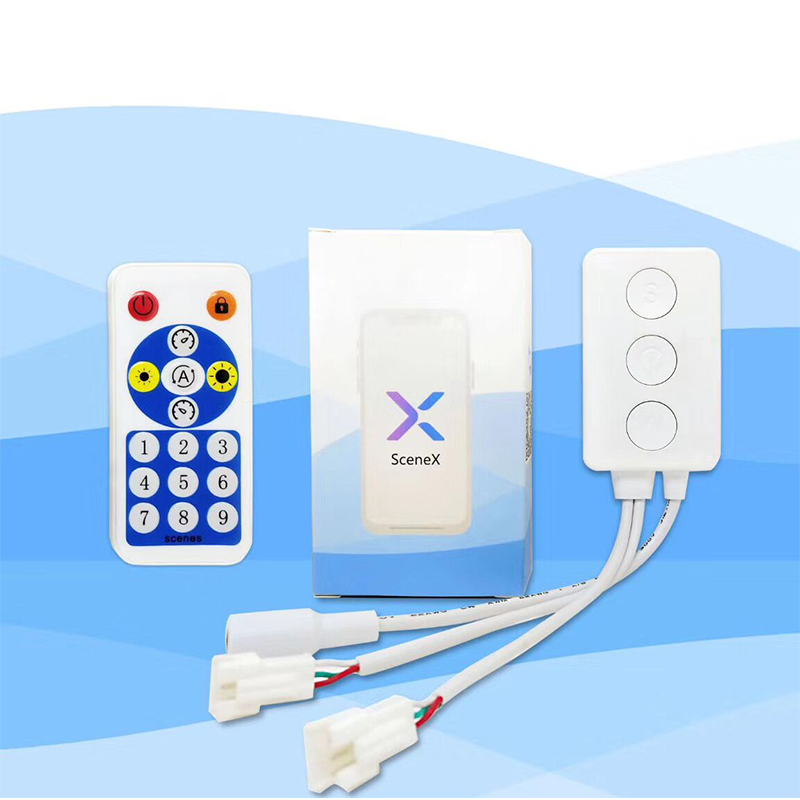

    Package included:

    1* SP601E WiFi LED strip light controller (power and strip light not include)

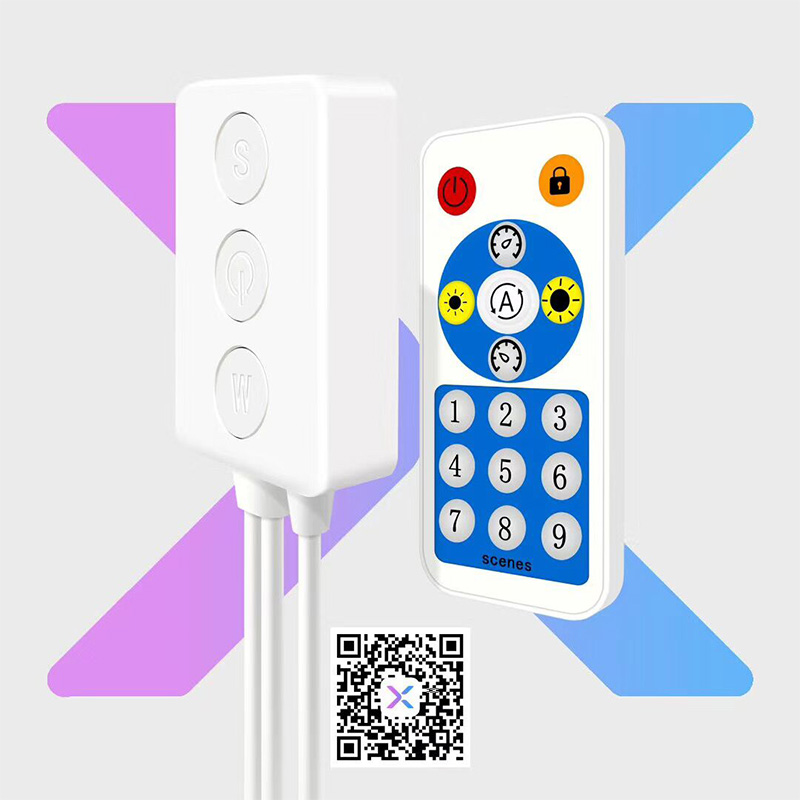

    1* 16Key RF remote



    How to connect the WS2813 WS2815 WS2818 led strip lights

    Applications

    1.Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.

    2.Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc



    Safety

    Supply voltage of this product is 5~24 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    SP601E DC5-24V Music Bluetooth LED Controller Dual Output Channels Individually Control Works with 16 Keys RF Remote for Addressable LED Strips - Upgraded Version of SP107E

    By : Callum Smith Date Added: 05/18/2020
    I waited a long time and was finally listed. Music Bluetooth, SPI dual-channel, independent control, I have been waiting for a long time.
    Rating: 5 or 5 stars
