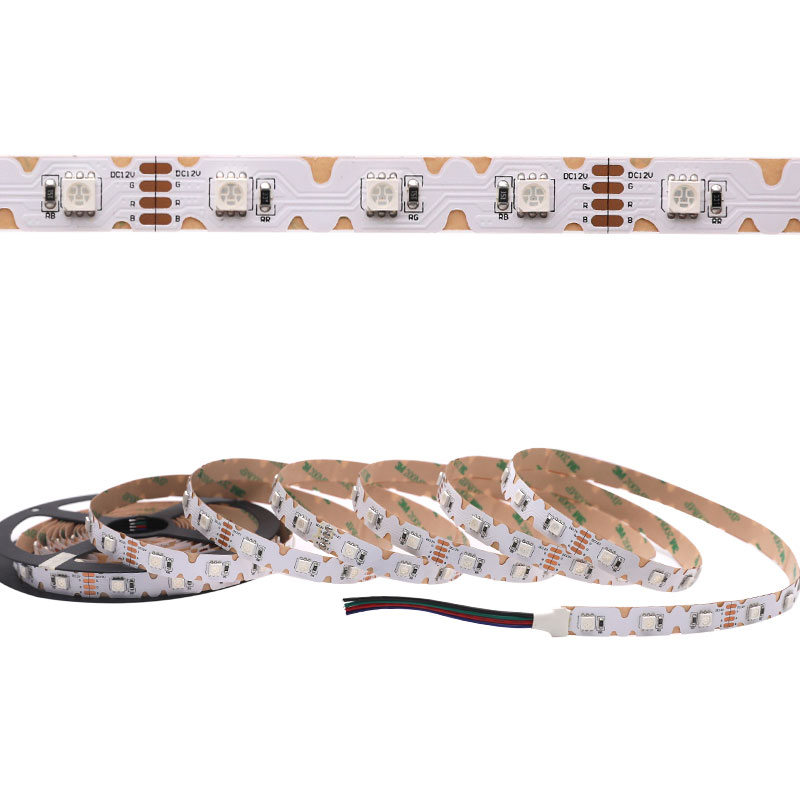

S Shape RGB Color Change Bendable LED Strip - 12mm 12V 5050 RGB Lights - 42LEDs/m High Density
S Shape RGB Color Change... $39.98 $23.9840% off
4 Zones RF 2.4G LED RGB... $14.98
3CH 4A Constant Voltage... $10.98
Mean Well LRS-200-12... $45.00 $37.9816% off
WiFi Gateway WiFi-Relay... $24.98
$39.98 $23.9840% off
S Shape RGB Color Change...
4 Zones RF 2.4G LED RGB...
3CH 4A Constant Voltage...
Mean Well LRS-200-12...
WiFi Gateway WiFi-Relay...

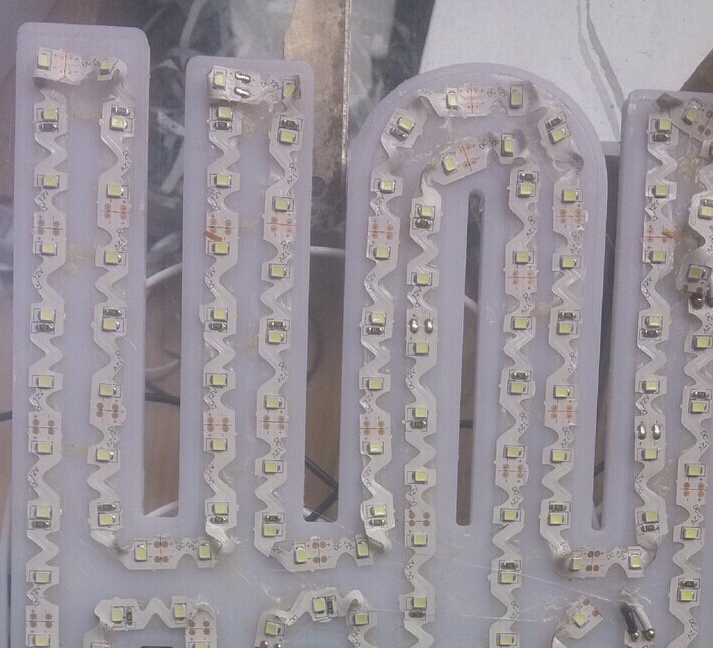

LED color changing RGB light strips use 3-in-1 RGB LEDs, with S-shape FPCB, more flexible 90-degree bend, suitable for advertising lighting, light box, channel letter lighting, and other atmosphere lighting. RGB led strip lights can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 12V safe low voltage and needs to be driven by an 12V LED power supply.

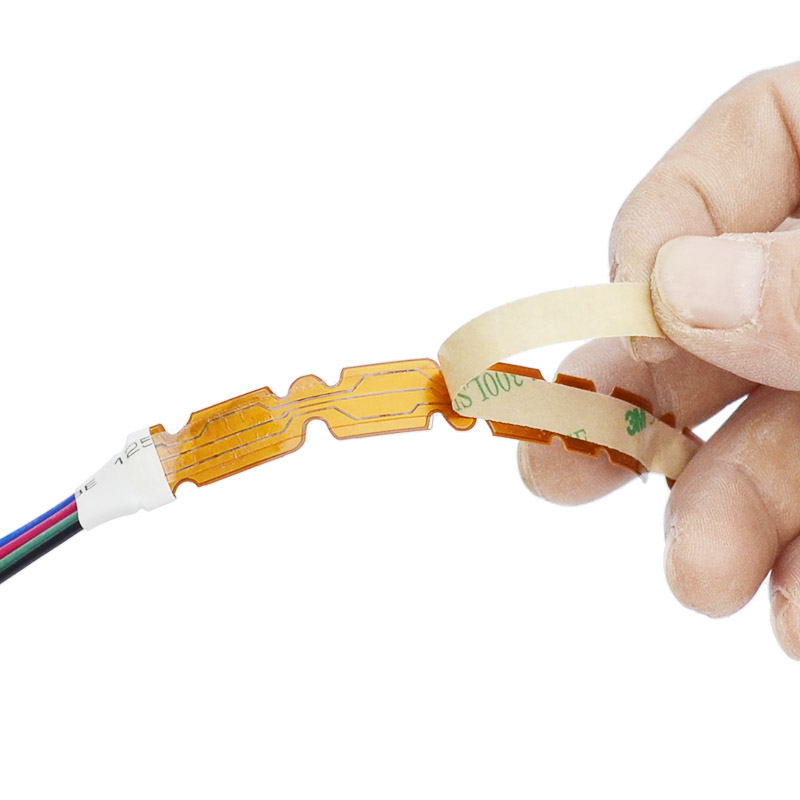

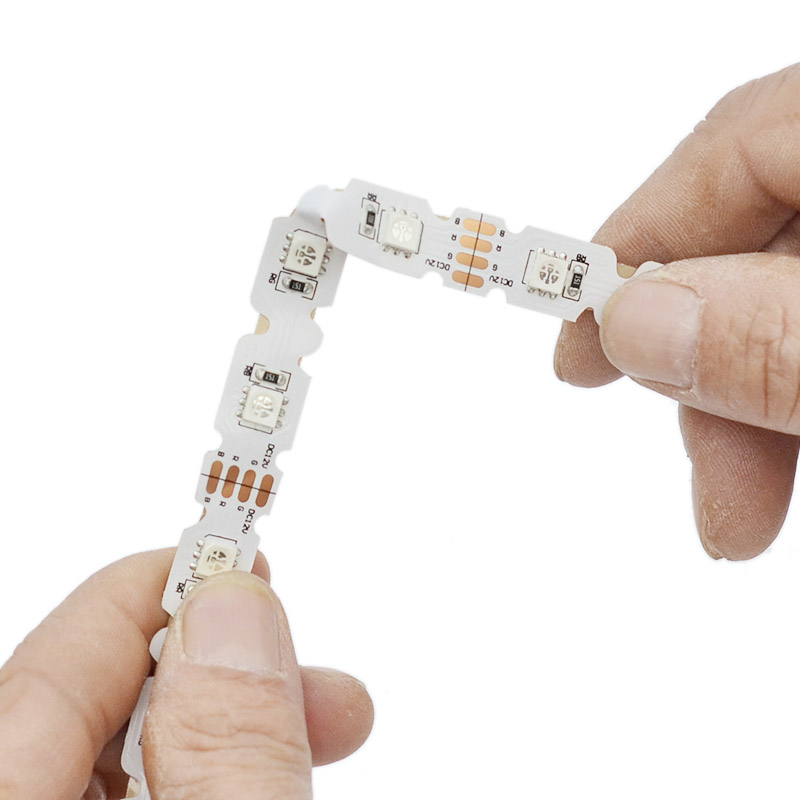

S shape FPCB, more flexible bend

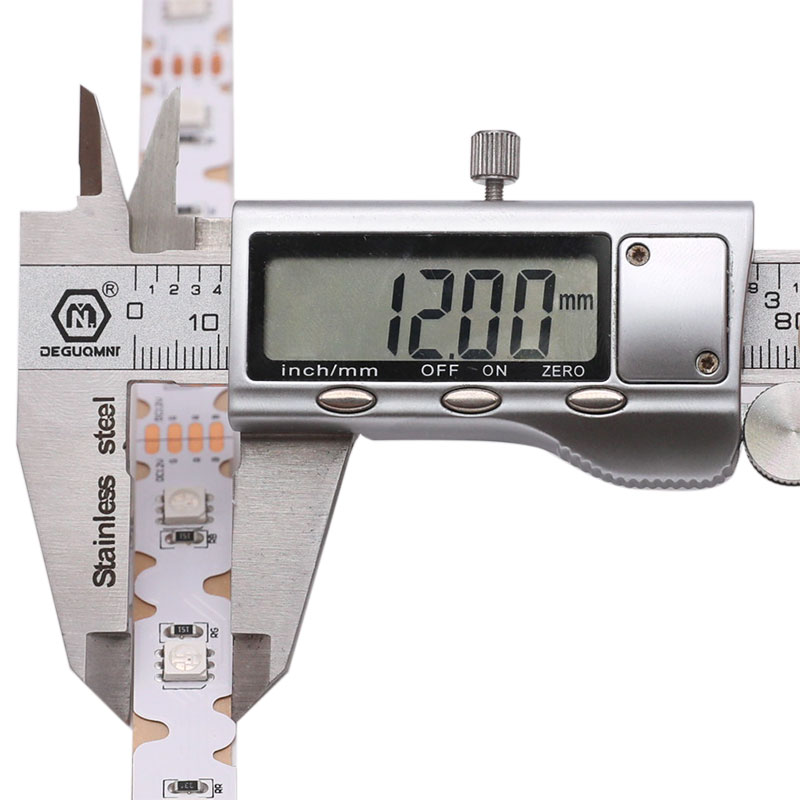

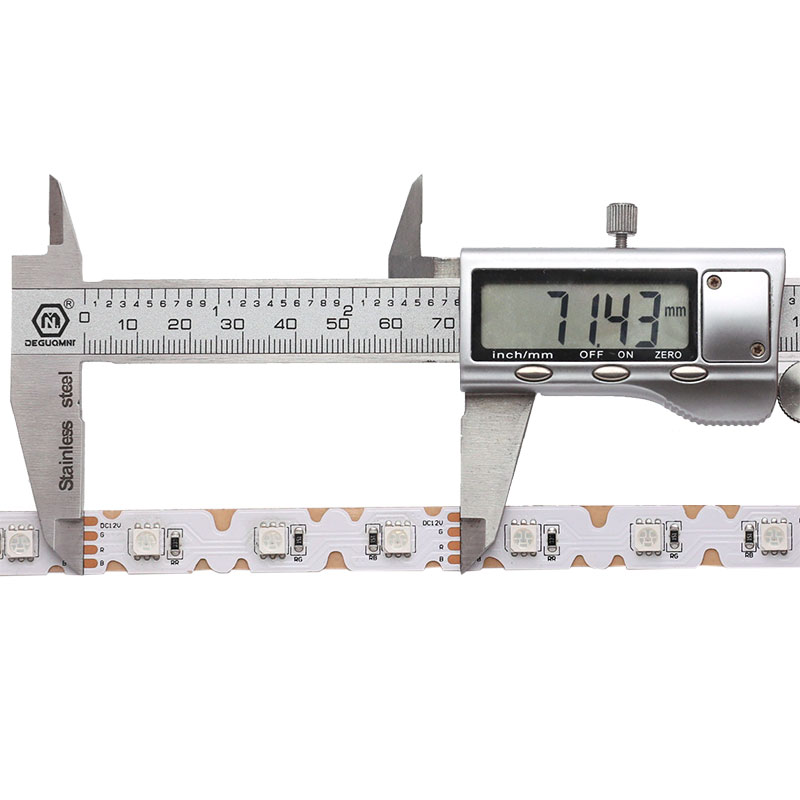

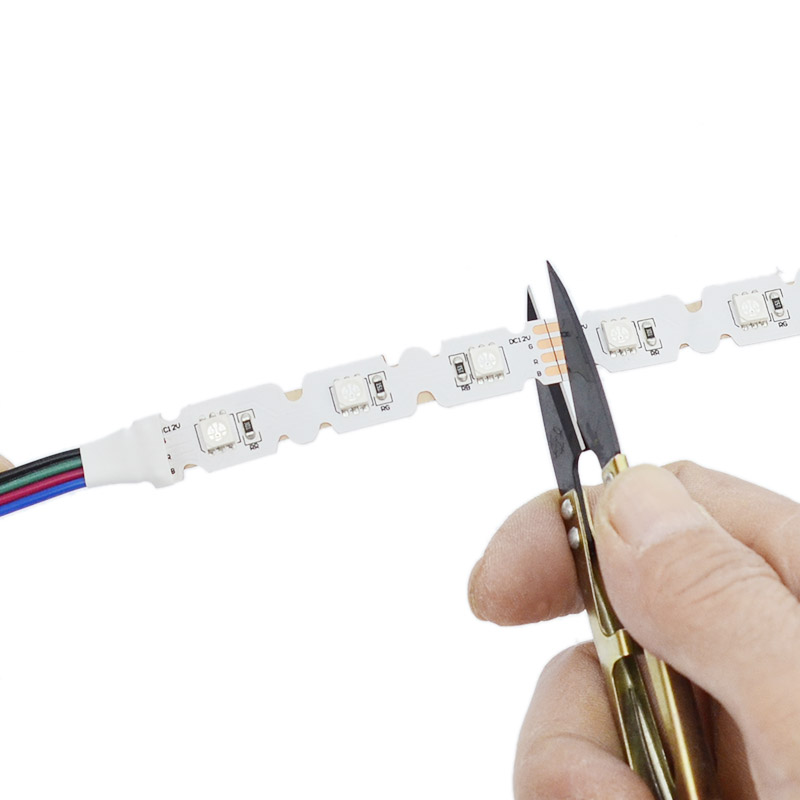

12V drive, cut 3 lights per time, 12mm wide
Multiple light colors optional, RGB color, 3000K warm white, 6000K daylight white, 7000K cool white, red, green, blue, yellow color
Provide light kit
Standards and Certifications
|LED Strip Type:||S Shape SMD 5050 RGB 210LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB color, 3000K warm white, 6000K daylight white, 7000K cool white, red, green, blue, yellow|
|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||42 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12 VDC|
|Working Power:||50W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||24~26Lumen 5040lm Max /16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20|
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:
1.1 Single color led strip wiring diagram: - How To Wire Single Color LED Strip Lights?
2. LED light strip accessories: RGB light led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
3. Installing RGB led strip lights: - How To Install LED Strip Lights?
