Super Narrow 4mm WS2812B DC5V 2020SMD 120LEDs/m Addressable Full Color Chasing Flexible LED Strip Lights, 1m/3.28ft for sale

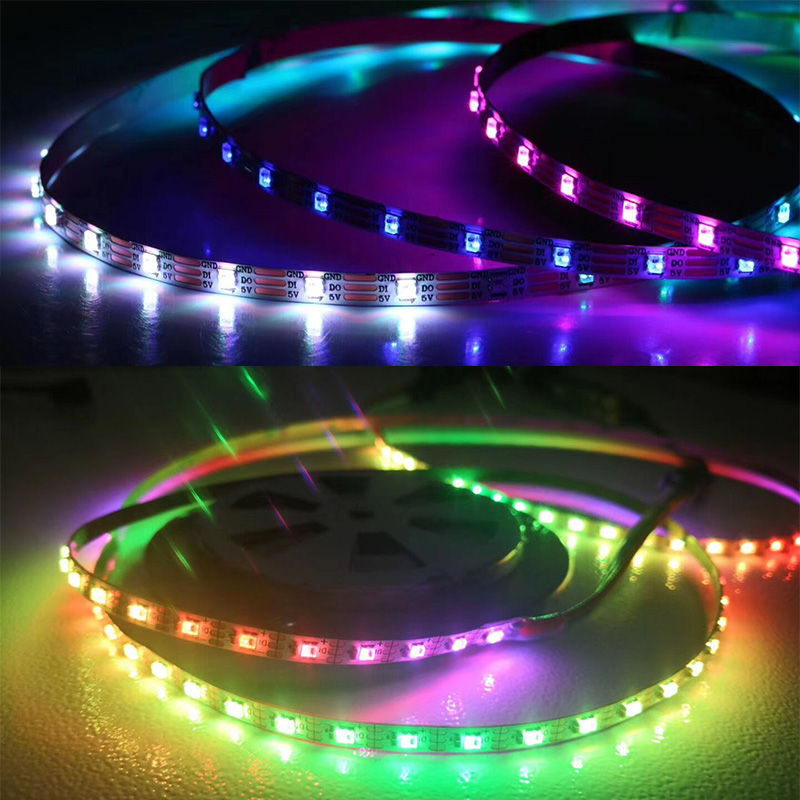

1. Individually addressable LEDs allow for sequencing modes. Non-waterproof flexible LED light strip with 120 LEDs high-quality 2020SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2812B IC chip control. 1meter(3.28ft) for sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 2020 components. It internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receives data from the controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopts auto reshaping transmit technology, making the pixel cascade number is not limited to the signal transmission, only depend on the speed of signal transmission.

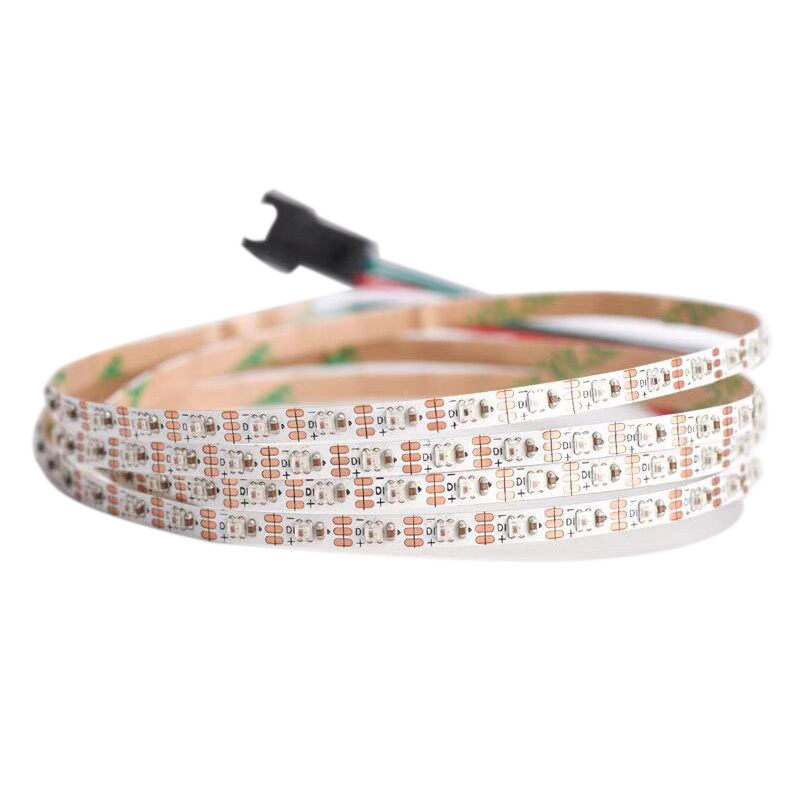

3. This strips soft and easy bent for installation. Available in 1 meter (39.37 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 1-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
4. The 5VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration.
Standards and Certifications
LED Strip Type: SMD 2020 DreamColor 120 LEDs/3.28ft
LED Chip: WS2812B IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

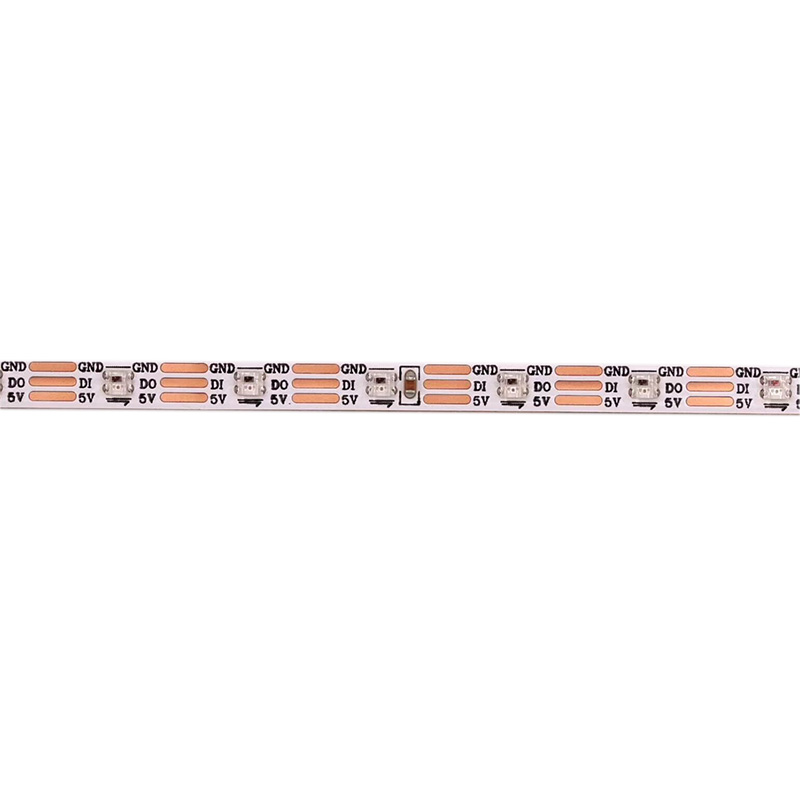

Dimension: 3.28ft/roll, every 1 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft)
IC Quantity: 120 LEDs per 1meter (3.28 ft)
Dimensions: L100cm(37.37 in ) x W0.4cm(0.16 in ) x H0.1cm(0.04 in )
Input Voltage(V): 5VDC
Working Power: 30W/3.28ft Max
Lumen Per LED: 20~22Lumen 2640 lm Max /3.28ft
PCB Color: White
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Non-waterproof
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
