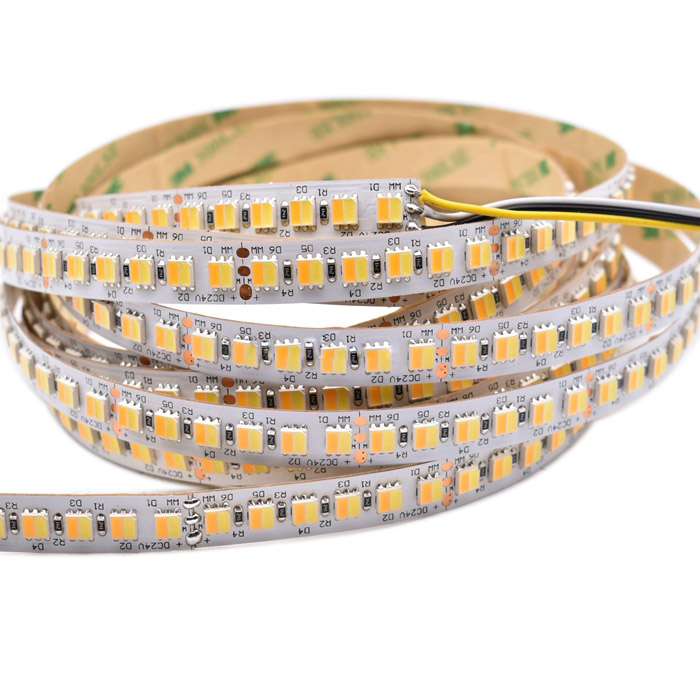

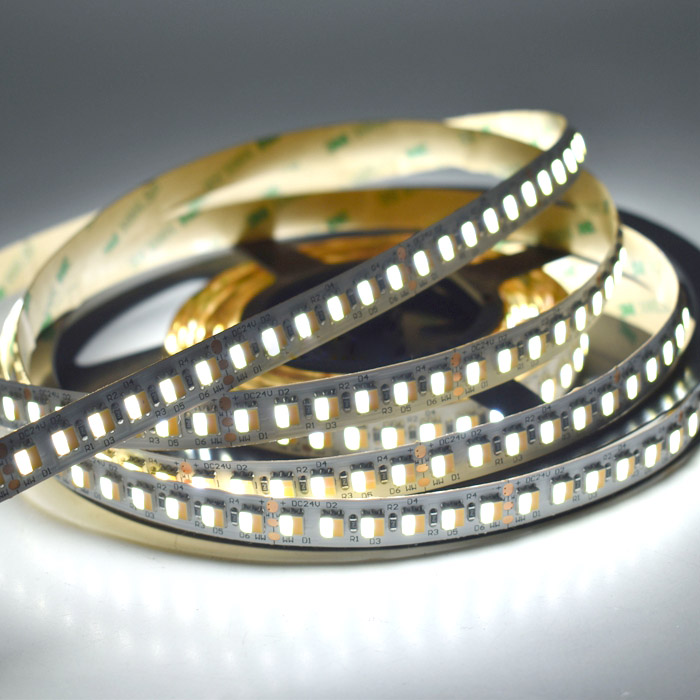

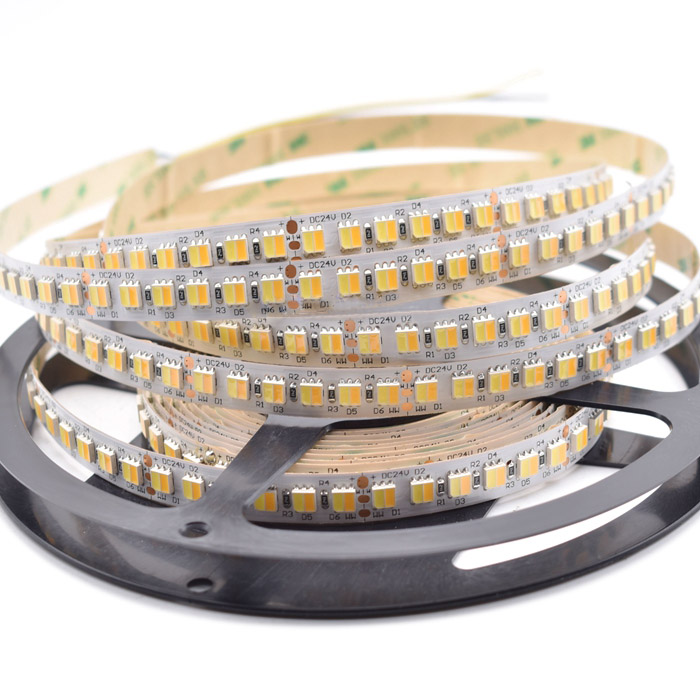

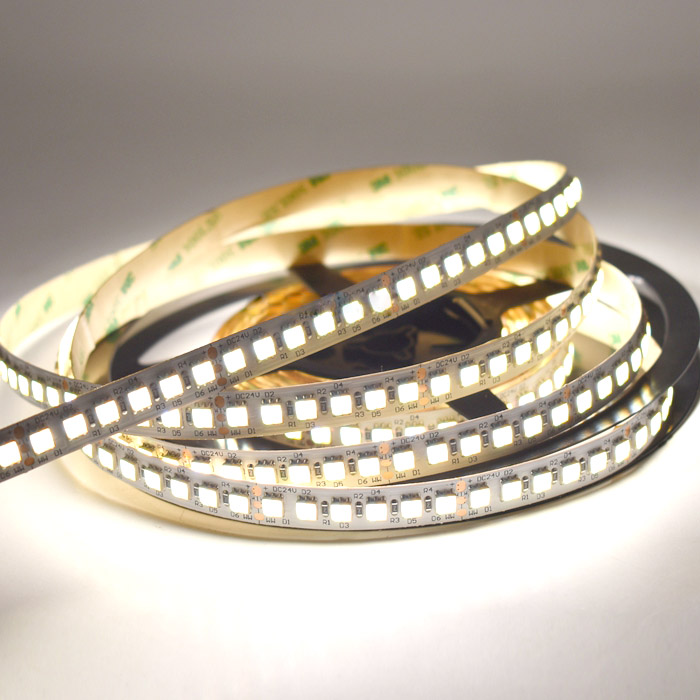

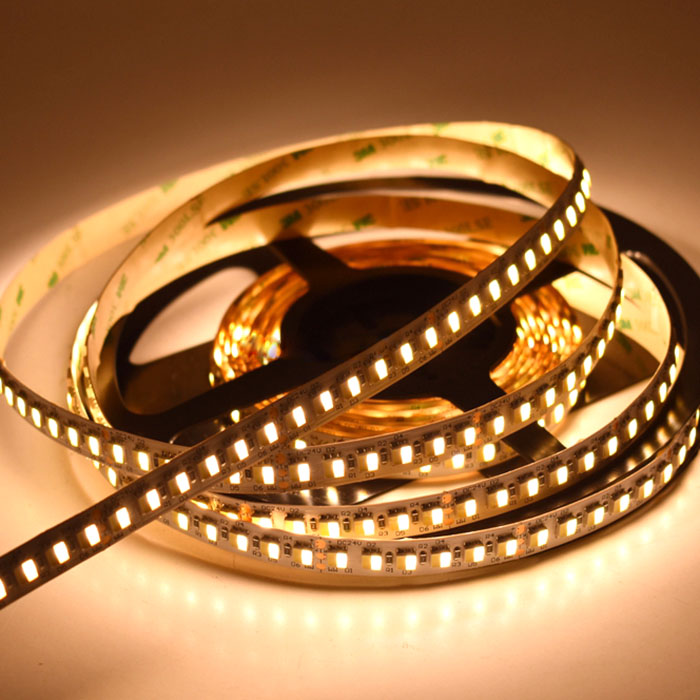

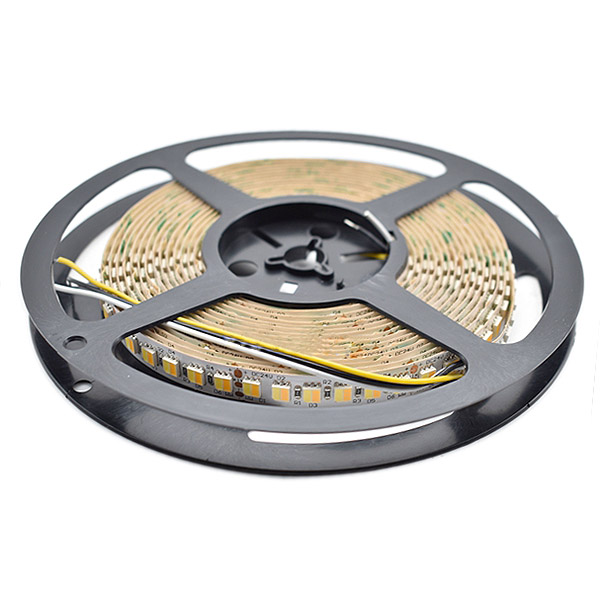

This flexible tunable white LED light strip is great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or for home indoor applications where space is limited. Using 1,200 LEDs (600 Daylight white 6000K and 600 warm white 3000K), the light strip emits up to 804 lumens of powerful illumination per foot. Color temperature can be adjusted from 2700K to 6000K with a tunable white controller (sold separately). The 5m (16.4') LED light strip is available with a white finish and can be easily cut into 6-LED segments and installed with its peel-and-stick adhesive backing. This non-weatherproof light strip has 24 VDC operation. See compatible LED dimmers. The light strip must be used with a class DC24V 200W power supply.
Standards and Certifications
LED Strip Type: SMD 5050 2in1
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 1,200 LEDs per 5meter (16.4 ft) [600 daylight white leds + 600 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.2cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 144W /16.4ft Max
Lamp Luminous Flux(lm): 20-22lm/LEDs 804lm/ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 90
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
16.4/32.8 feet (5/10meter) Connection diagram
65 feet (50meter) Connection diagram
