Tuya WiFi Wireless RGB+CCT LED Light Controller Works With Amazon Alexa Voice Control & Smart APP Control For RGB+CCT LED Strip Lighting
|Product Features||Product Details|
• 2.4 GHz WiFi control, no gateway required, easy to connect and use.
• Amazon Alexa voice control, you can adjust led lights on/of and led brightness through voice control which can free your hands.

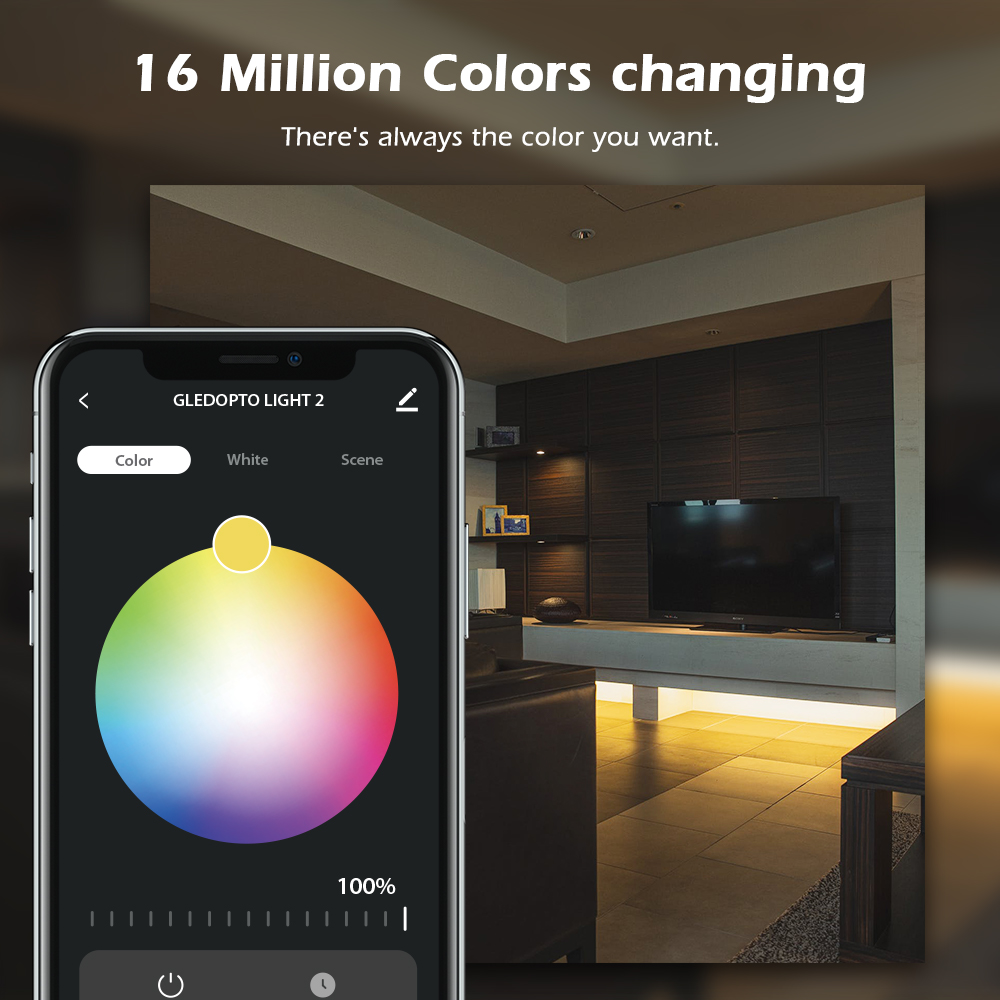

• 16 million LED colors changing, there's always the led light color you want.
• Color temperature adjustable, white light color temperature change from 2000K warm white to 6500K cool white.
• LED Brightness dimmable, choose the right LED light brightness according to your needs.

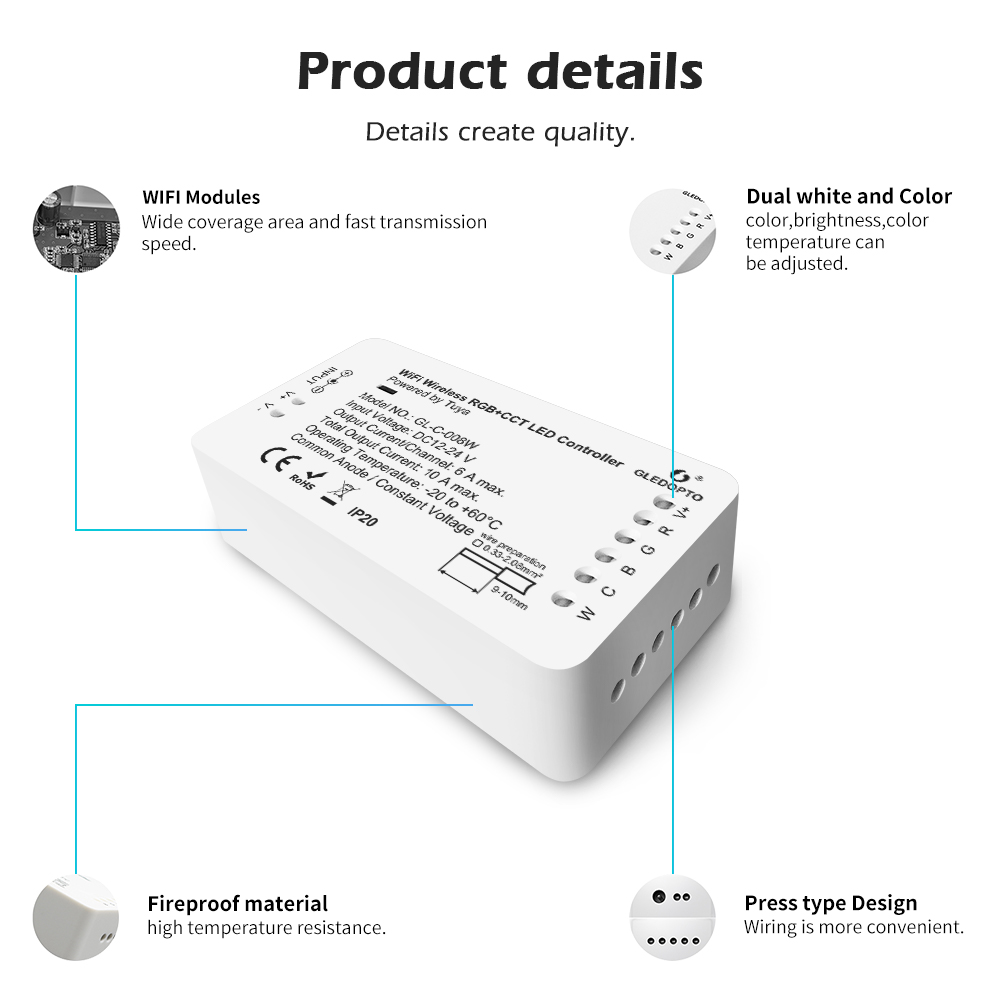

• WIFI modules, wide coverage area and fast transmission speed.
• Fireproof material, high tem[erature resistance.

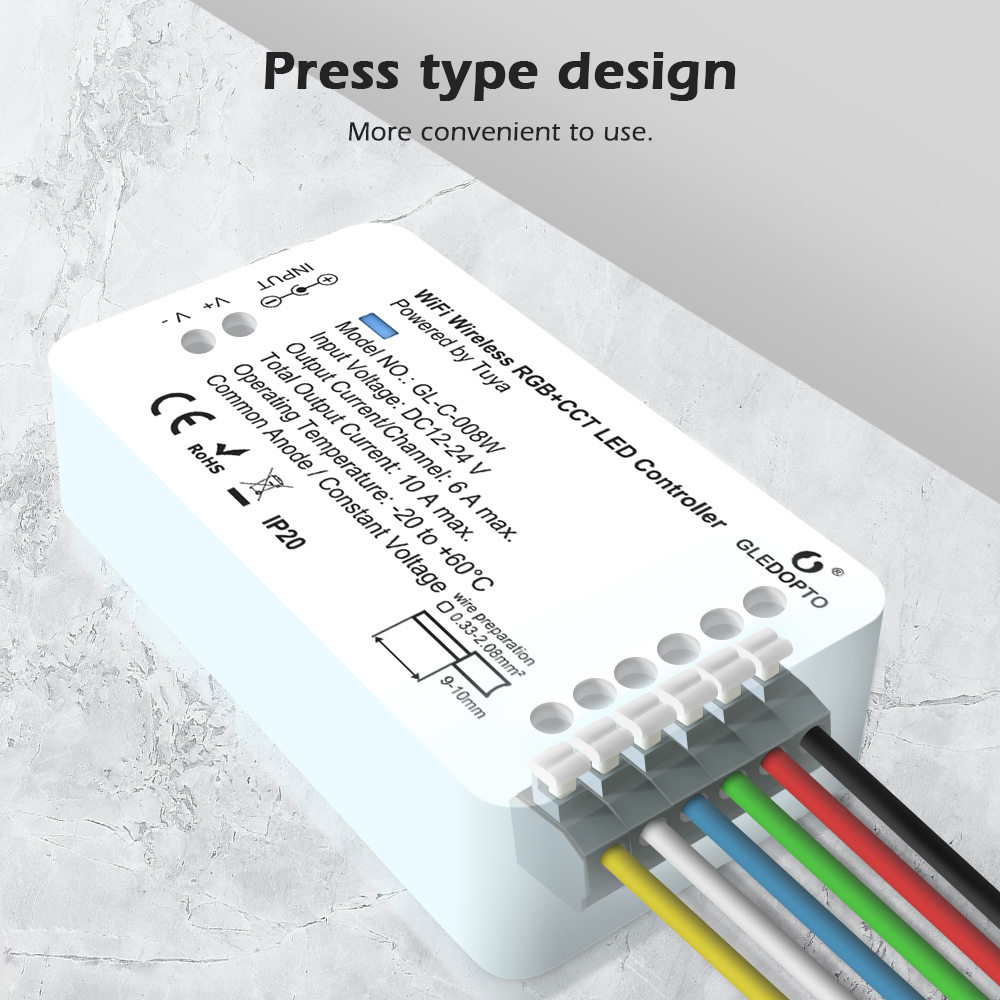

• Press type design, wiring is more convenient.
• Dual white and color, LED color, light brightness, white light color temperature can be adjusted.
Standards and Certifications

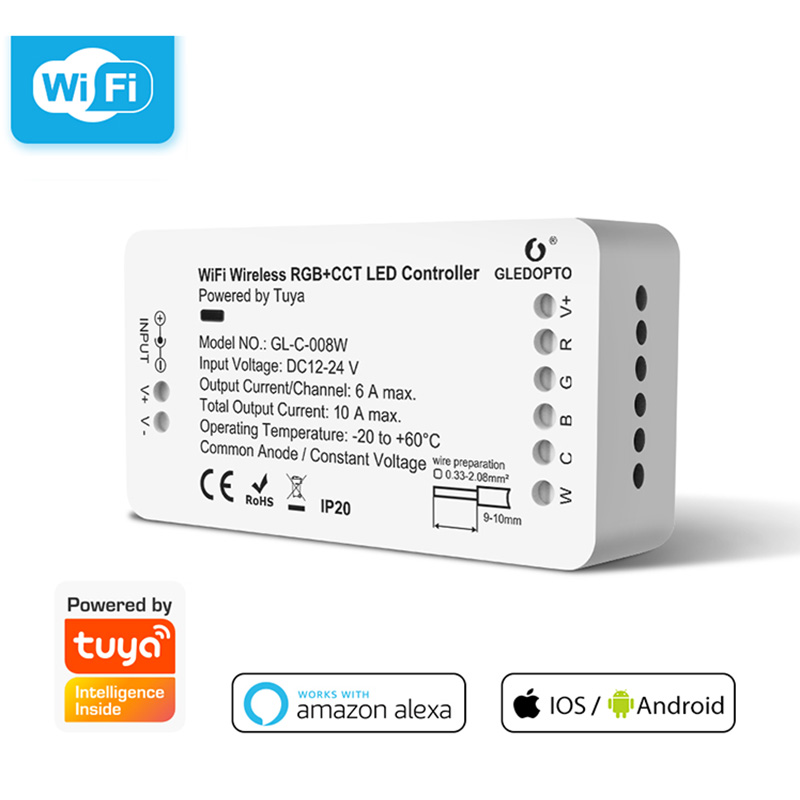

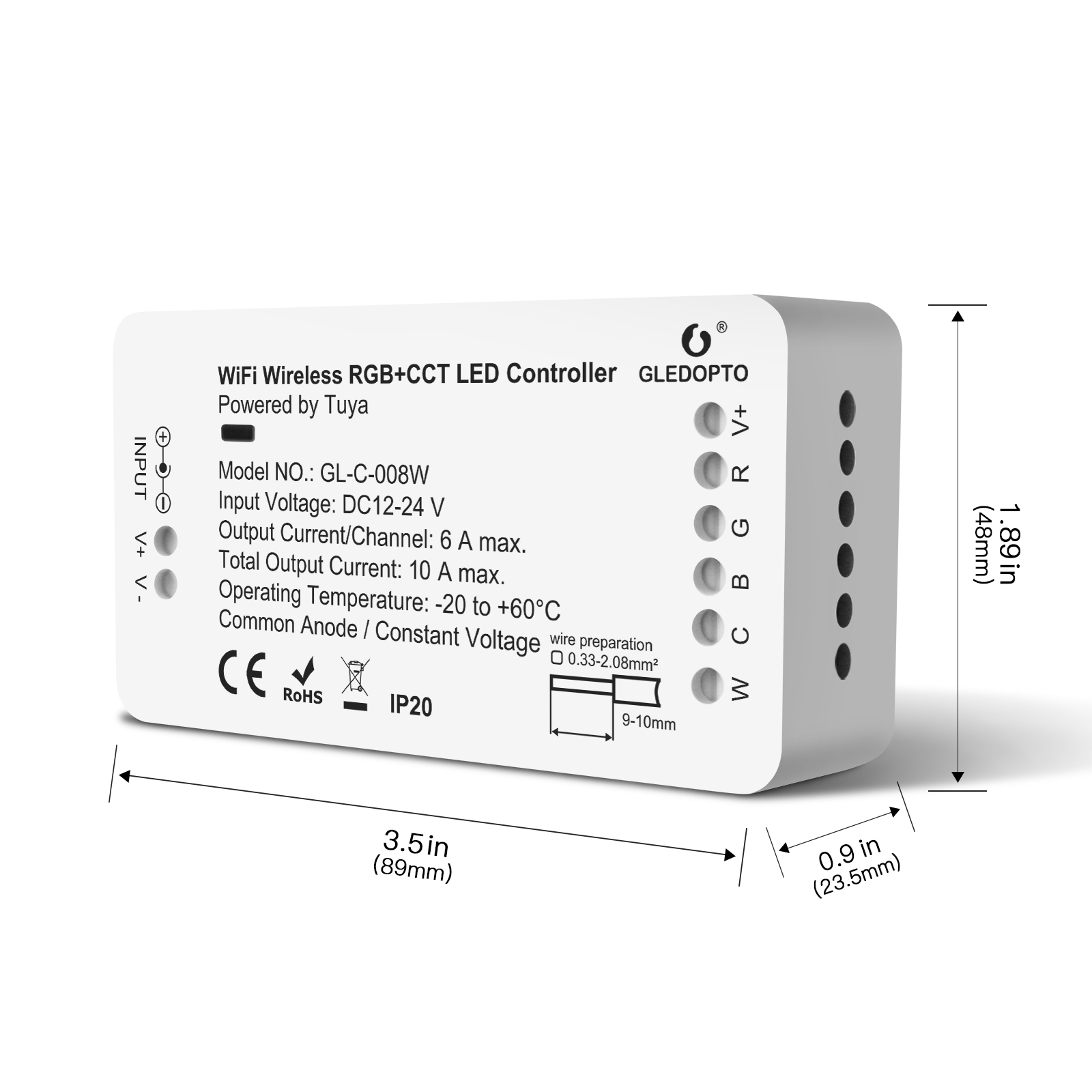

|Model||GL-C-008W (Tuya WiFi Wireless RGB+CCT LED Control)|
|Output Current/Channel||6A Max|
|Total Output Current||10A Max|
|Control Type||WiFi Tuya APP + Amazon Alexa Voice Control|
|Suitable LED Strip Lights||RGB+CCT|
How to use this WiFi Wireless RGB+CCT LED Light Controller?

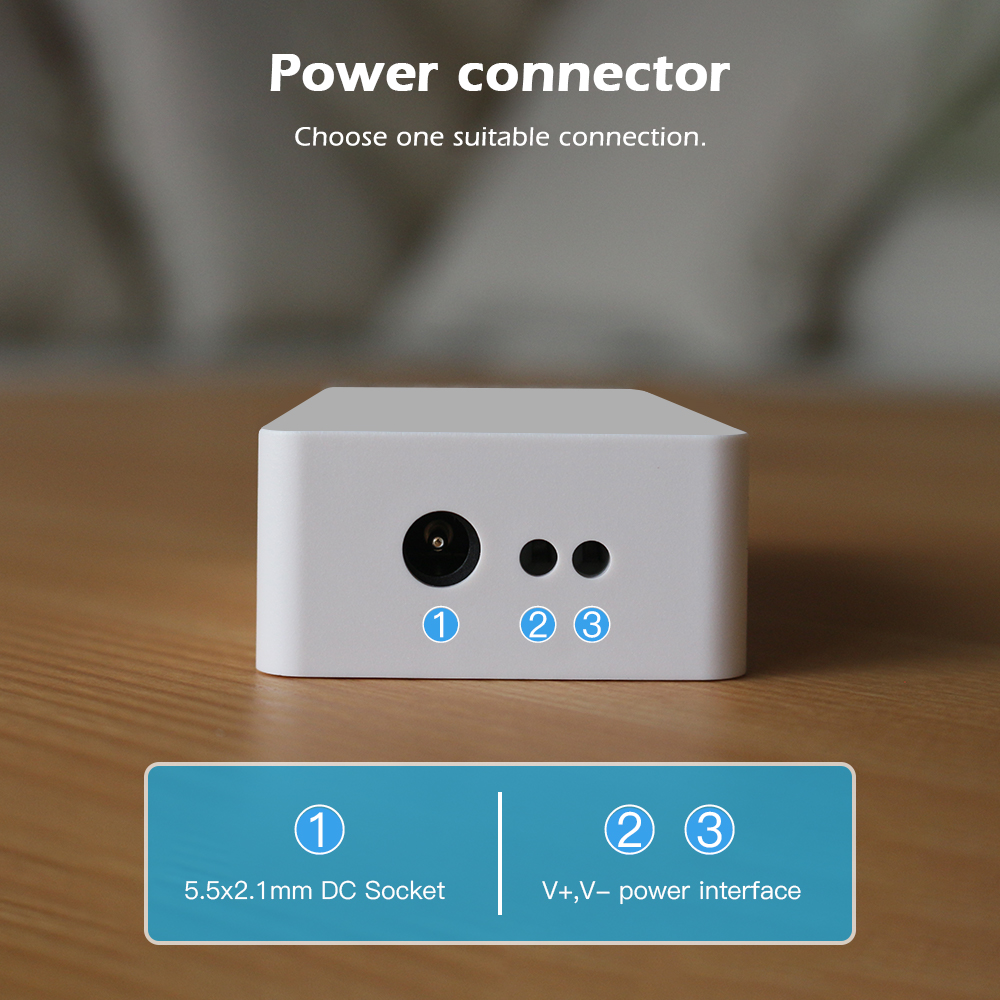

►Step 1. Power your LED light sources.
Connect the RGB+CCT led light strip and the RGB+CCT led controller. Supply power to the light strip and the controller.
►Step 2. Set up your WiFi.
►Step 3. Download the Tuya APP.
Start the device searching. It could take some time, if does not find the device, power on/off or make a reset.
►Step 4. Complete the setup and control your led lighting.
Suitable for various indoor led lighting applications like bedroom, living room, kitchen, desk, under cabinet, behind TV, stairs lighting, etc.
How to choose the right LED light strip and power supply?
1. First, this WiFi wireless RGB+CCT LED light controller supports RGBCCT LED rope lights, not available for addressable LED strips (there is an addressable digital led light guide you can learn if you want to know more).
2. Second, the input voltage of this LED light controller is DC12-24V, so the power supply and LED light strips must work under DC12-24V, which can be 12V LED light strips or 24V LED rope lights. However, if your LED strip lighting is 12V, your power supply must be 12V too.
|DC12-24V RGB+CCT LED controller|
|12V LED tape lights||12V power supply||DC12V Lithium Battery|
|DC12V Plastic Shell Power Adapter|
|DC12V MW UL-Listed Power Supply|
|DC12V Waterproof Power Supply|
|24V LED rope lights||24V power supply||DC24V Plastic Shell Power Adapter|
|DC24V MW UL-Listed Power Supply|
|DC24V Waterproof Power Supply|
3. Third, the power of the light strip cannot exceed the power of the LED controller. About calculating the power for your led strip lighting, you can read this to find a suitable transformer: How to calculate the power for your LED strip?
LED Controller Power ≥ 1.2*LED Strip Power
LED Power Supply ≥ 1.2*LED Strip Power
*Everything you should know before buying led strip lights:
How to install LED light strip with this RGB+CCT controller?
We have an article introducing the RGB+CCT led light strip installation in detail, you can read to get more wiring knowledge and solve the problems you may encounter: How to wire RGBCCT led strip lights?
