256 brightness display and 24-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.

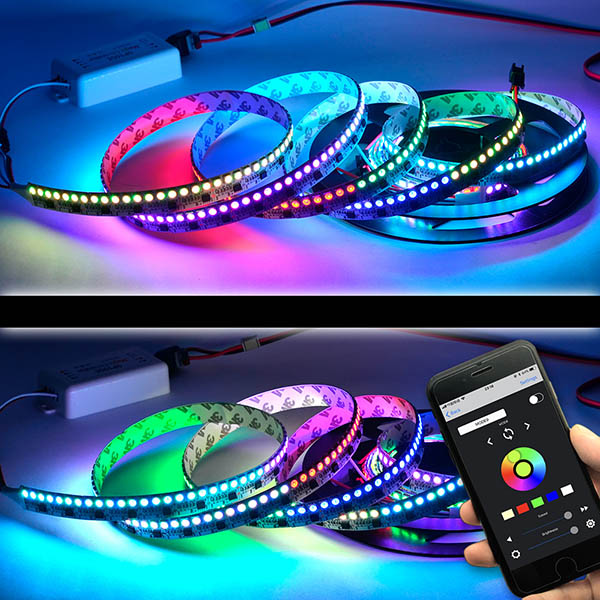

Work great with Arduino or SPI controller or programmable led controller, ready-to-go library, Fast LED library and Raspberry Pi, etc. It’s very easy to program.

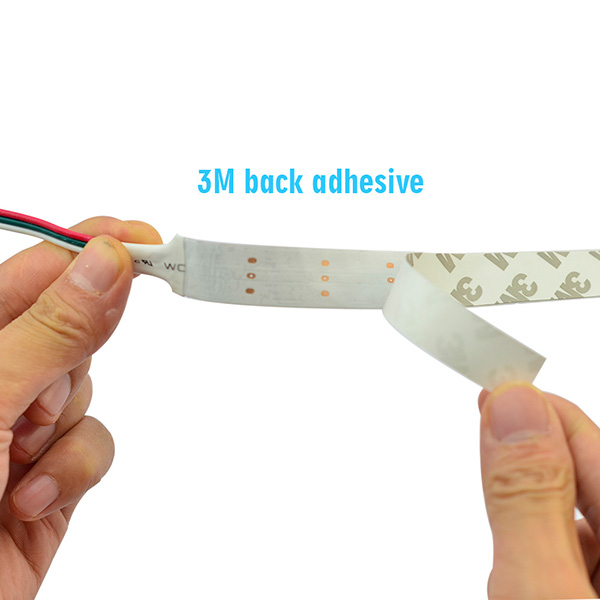

The strip is made of flexible PCB material, and comes with a adhesive backing and can be stuck just about anywhere, IP67 waterproof Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It comes with silicone clips and screws. You can fix it on some place you want.
It comes with 3-PIN connectors and separated power/ground wires on both ends. Each 3LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
It can be used to make led screen, led wall, advertising board and widely applied to Outdoor advertising signs, hotel, KTV, bars, wedding party lighting, and so on.
These WS2811 LED strips are fun and glowy. There are 144 RGB LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable SPI type of LED strips. You can set the color of each LED's red, green and blue component with 7-bit PWM precision (so 21-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 2 digital output pins are required to send data down (V+ and Data). The PWM is built into each chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you. Pls note, we try hard to get consistent wiring between batch of strip but we can't guarantee it, please double check which side is the input and which is the output by looking at the strip itself for the directional arrows and pin labelling. Red is power, blue or black is ground, green is data pin. If you are getting a less than 2 meter strips, you'll probably also want one plug and receptacle set to make it easy to connect and disconnect.
The WS2811 chip has built in 1.2 MHz high speed 7-bit PWM for each channel - that means it can do 21-bit color per LED (way more than the eye can easily discern). Once you set the brightness level for the LEDs, your microcontroller can go off and do other things, no need to continuously update it,

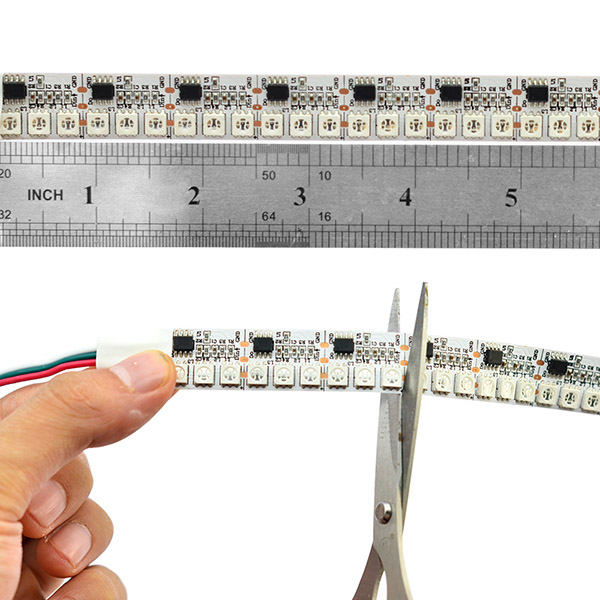

You can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.82"/2cm (3 LEDs each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer, just watch how much current you need! We have a 12V/4A power supply that should be able to drive 1 or more meters (depending on use) and a 12V/10A power supply that can drive 2 meters
Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
In order to ensure that you use this light strips in the process of the front and behind light of the same brightness, pls supply power at both ends of the led strip lights or every 5 meters need to supply power seperately.

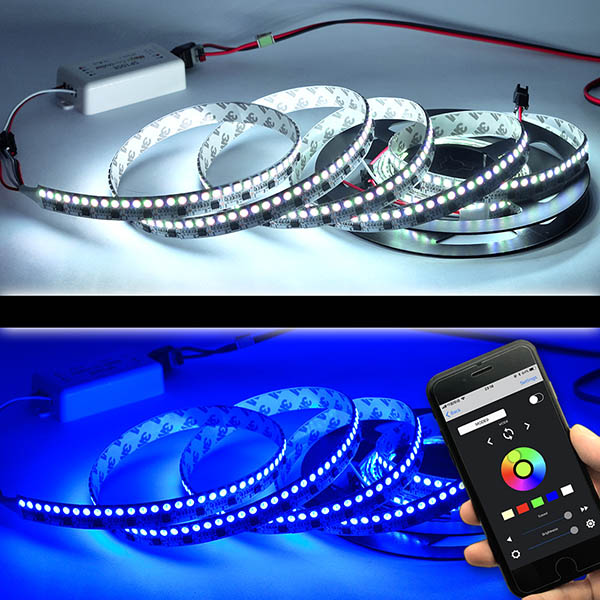

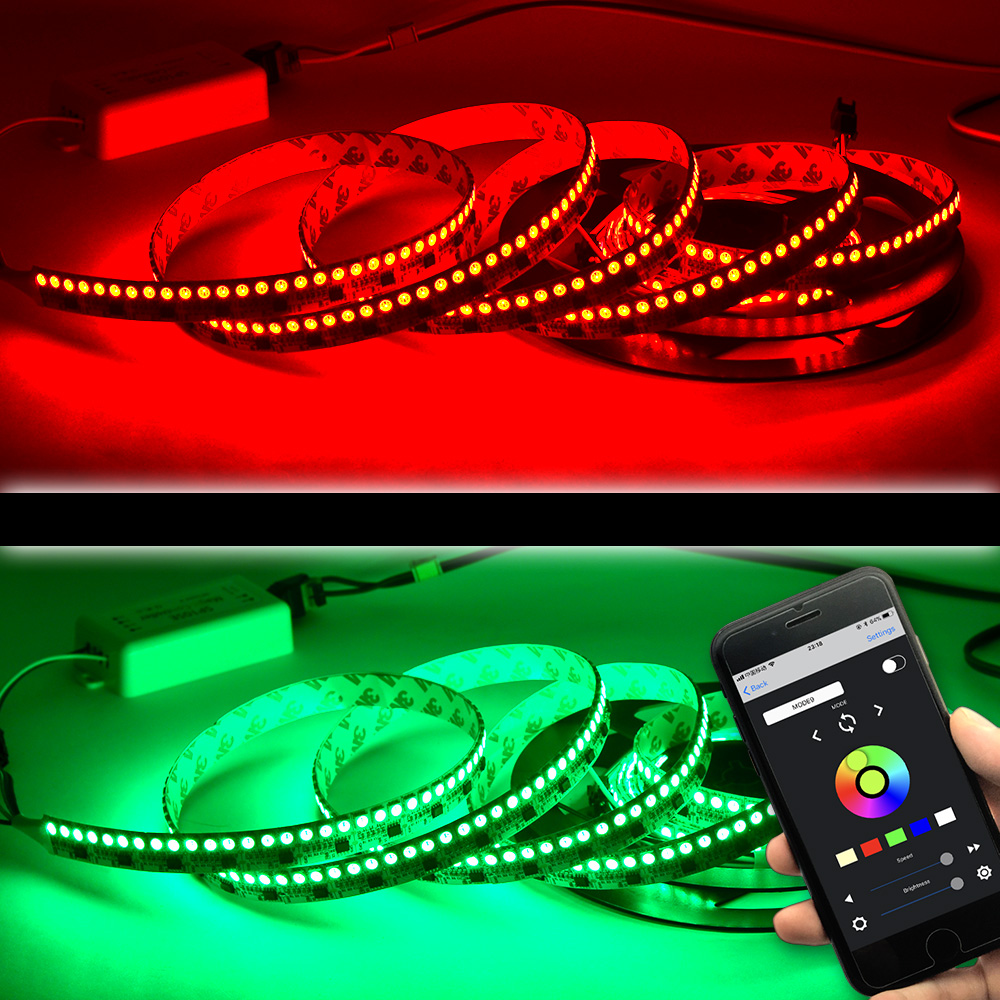

This is our recommended SPI / programmable /Built-in program / music WIFI dream color controller link. We are professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications

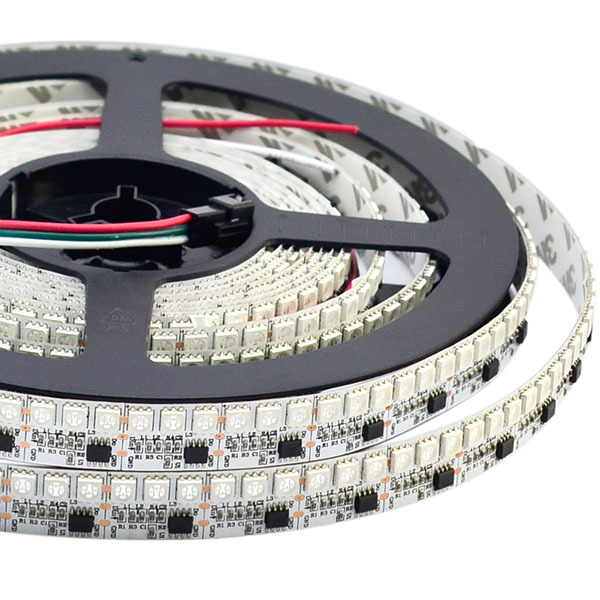

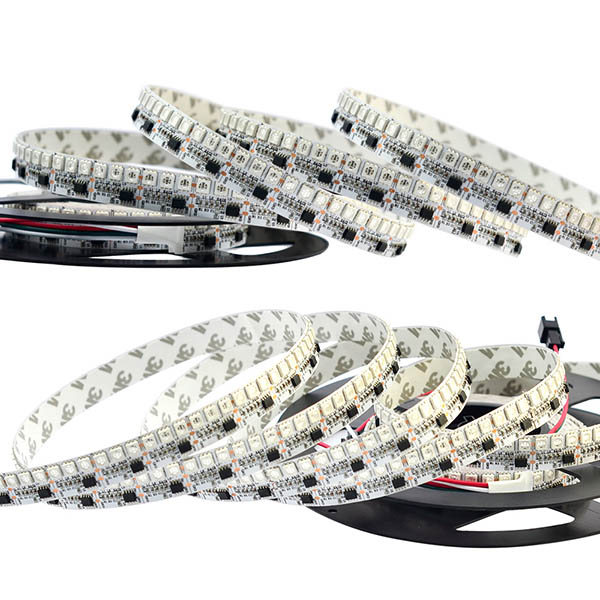

LED Strip Type: SMD 5050 DreamColor 288LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 3.28ft/roll, every 3 PCS LED can be cut
LED Quantity: 144 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L200cm(78.8 in ) x W2.0cm(0.78 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 45W/3.28ft Max
Lumen Per LED: 22~24Lumen 3456lm Max /3.28ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Waterproof IP67 or Non-waterproof IP20
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
Waterproof Level Description
13.12ft(4 meter) led strip lights connection diagram
13ft ~ 100ft(4~30 meter) led strip lights connection diagram
