WS2811 DC12V Addressable RGB+White Color Changing LED Lights Strip
WS2811 addressable RGB+White color changing led lights strip is a 4-channel (12V+, DO, W, GND) dimmable LED strip. External IC to control three 5050SMD LEDs, this pixel led light strip is 6 LEDs can be cut(3 RGB LED lights + 3 white LED lights).
External driver IC accepts SPI controller to read data, generates a pulse width modulation signal to control 256-level grayscale adjustment of the 5050 RGB LED, and outputs 16 million lighting colors; SMD2835 3000K warm white or 6000K daylight white LED accepts brightness adjustable.

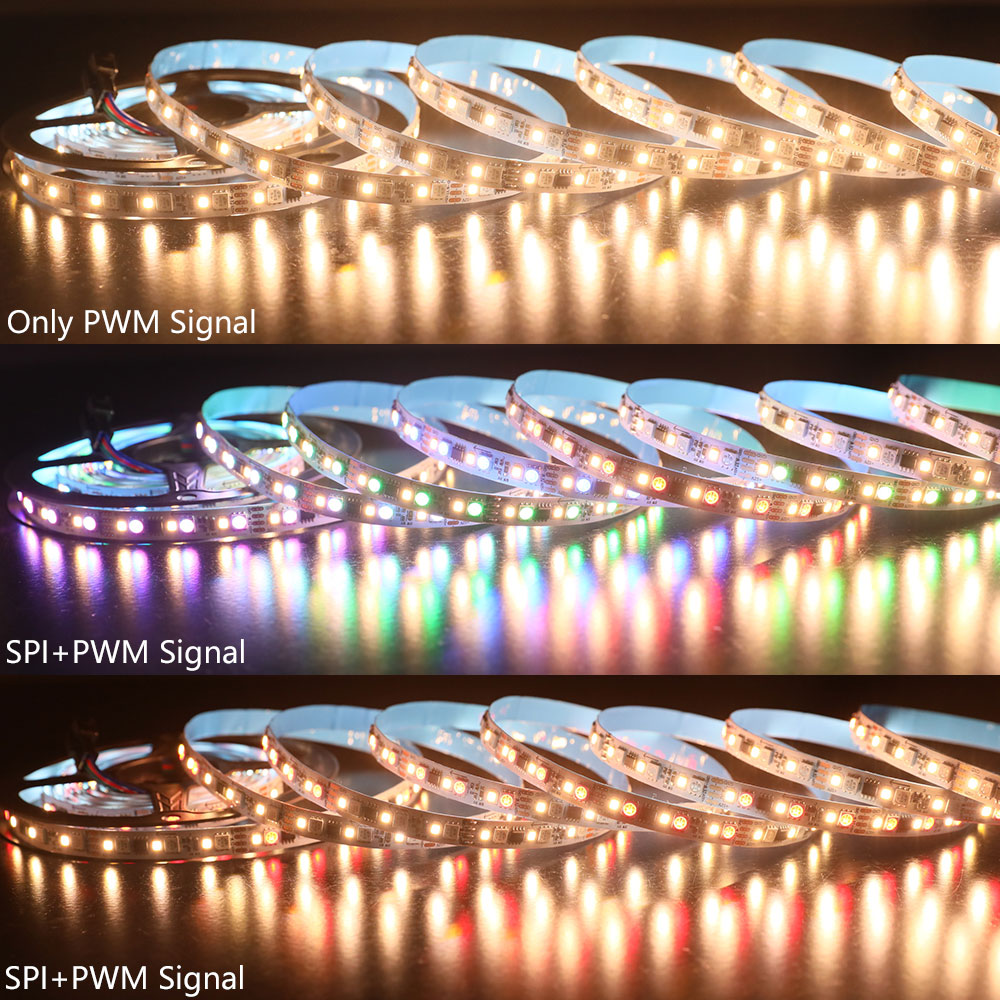

Symphony atmosphere plus white light dimming, the LED lighting atmosphere can be switched at will, which can realize the effects of running water, horse racing, chasing, gradual change, breathing, etc., and at the same time realize the white light dimming mode.
The back of the addressable WS2811 LED light strip is made of high-quality 3M tape, which can be installed in complex environments. The tape has good adhesion and is easy to install. For outdoor lighting work, you can choose IP67 and above waterproof LED strip lights.
What is the difference between WS2811 addressable RGB and WS2811 RGBW LED strip light?
WS2811 RGBW is a 4-channel addressable RGB+White dimmable LED strip, which can produce 16 million dynamic effects while achieving white light dimmable.
The WS2811 addressable RGB LED strip is a 3-channel addressable LED strip. RGB LED does not have separate white light, it needs to mix the red, green and blue colors to produce, and the white light has a high color temperature and high heat generation.
RGBW led light strips can produce purer white light than RGB light strips, and the white light produced by RGB LED mixing tends to be bluish.
If you are looking for perfect dynamic effects and want to achieve better white light, then this addressable RGBW LED strip must be the best choice.
For more addressable led strip knowledge, you can read: Ultimate Guide to Choosing the Right Addressable LED Strip
4-channel RGBW WS2811
Addressable RGB + Warm White or daylight white
5050 RGB LED + 2835 white LED
DC12V external drive IC
3M tape, easy to install
Multiple waterproof ratings available
Standards and Certifications
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
1* 5m/16.4Ft WS2811 addressable RGBW LED strip light
You can purchase the LED power supply, which we recommend in the kit. The power of the LED strip light is 60W/roll, to avoid the power load, the power of the LED power supply must more than 60*1.2=72W - How to calculate power for led strip lights?
If you have other needs for the led power supply, please refer to our article on how to choose the correct LED power supply.
How to connect addresssable led strips?

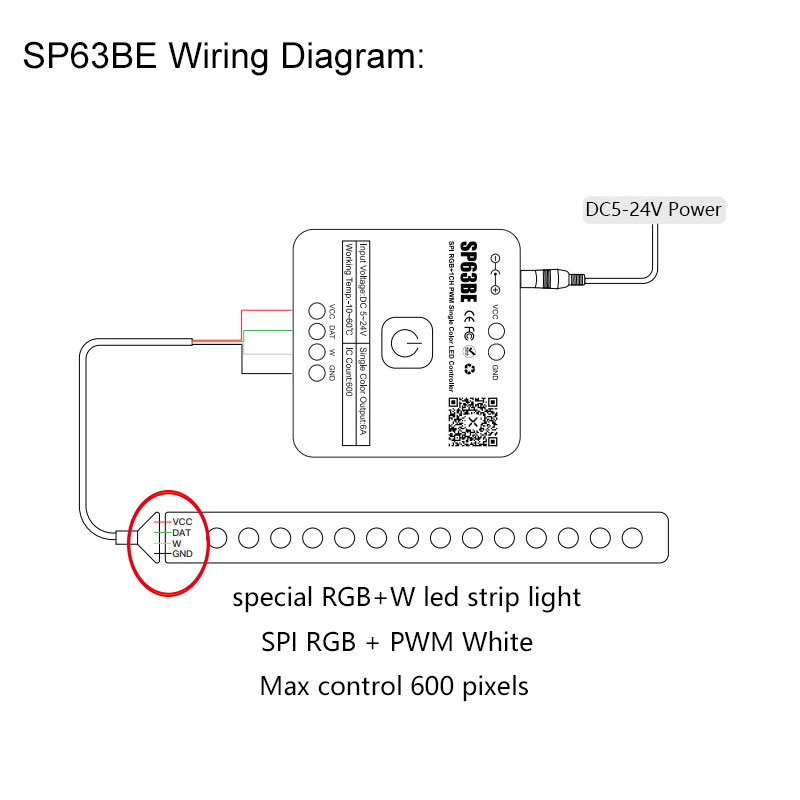

Single signal WS2811 addressable led pixel lights strip wiring diagram:
*Click the above picture to know more addressable led strip wiring diagram.
Applications - How to install addressable led strips?
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
