| Select Light Color : | Warm White(3000K) (Base), Cool White(7000K) (Base), Red(620-630nm) (Base), Green(515-525nm) (Base), Blue(465-475nm) (Base), Yellow(585-595nm) (Base), Natural White(4000K) (Base), Daylight White(6000K) (Base) |
|---|---|
| Select Operating Voltage: | 24VDC (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

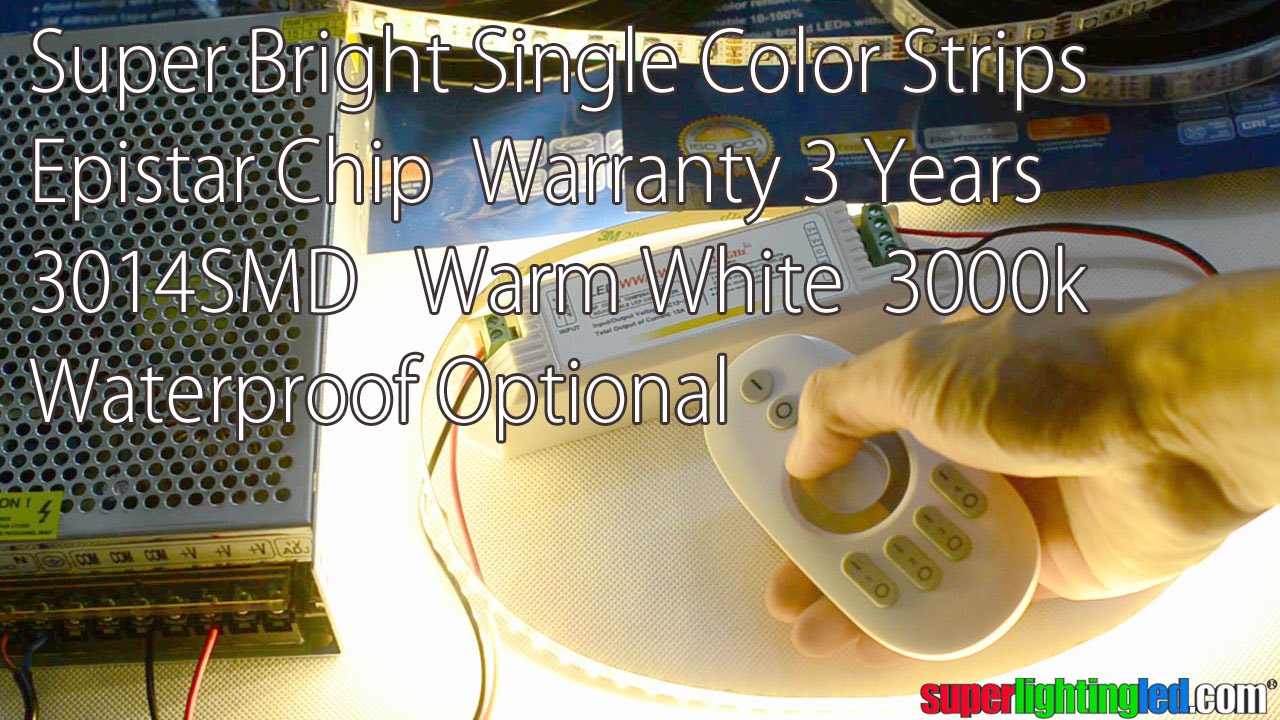

Single Color Flexible LED Strip Light Series, this 8mm led strip with small size SMD3014 LED chips, emit different colors of light, white, red, green, blue, and yellow. Support dimming by a dimmable led driver or a dimmer.
There are 70 lights per meter, 350 LEDs per roll. High density and high brightness, perfect for your bedroom lighting, kitchen lighting, living room lighting, and other commercial lighting. For your home lighting, it's great to install led strips with aluminum channels to help better heat dissipation and cover & even LED dot light.
DC24V input, 7-LED segment can be cut, so you could cut a different length for your project and request. Maybe you need 2-pin connectors to complete your installation.
IP20 and IP65 light strips with adhesive backing and can be stuck just about anywhere. IP67 and IP68 should be mounted by clips.
Standards and Certifications
Product Specification
| LED Strip Type: | SMD 3014 350LEDs 16.4ft Single Color LED Strip Lights |
| CRI (Ra>): | 95 |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | 3000K Warm White, 4000K Natural White, 6000K Daylight White, 7000K Cool White, Red, Green, Blue, Yellow (optional) |
| Wavelength NM(RGBY): | Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| Input Voltage: | 24V DC |
| Dimension: | 16.4ft/roll, every 7 PCS LED can be cut (100mm/3.93") |
| LED Quantity: | 70 LEDs per meter, 350 LEDs per roll |
| Lifespan: | 50,000+hours |
| Dimensions: | L500cm(196.8 in ) x W0.8cm(0.31in ) x H0.20cm(0.08 in ) |
| Luminous Flux(lm): | 9~10lm/LEDs 3150lm/16.4ft 192lm/ft 87.5lm/w |
| Working Power: | 1.5A 36W /16.4ft, 7.2W/m Max |
| Waterproof Rating: | Non-waterproof IP20 / Indoor Waterproof IP65 / Indoor & Outdoor Waterproof IP67 / Underwater proof IP68 |
| Beam Pattern: | 120 degrees |
How to Wire 2-pin LED Strip Lights?
1. The single color led strip light is directly connect to the power supply:
2. The single color led strip is controlled by a dimmer, and then connected to the power supply:
3. Connet the single color led strip to a dimmable led driver:
