| Select Length: | 16.4ft (5 meters) (Base) |
|---|---|
| Select Light Color : | RGB + Daylight White 6000K (Base), RGB + Warm White 3000K (Base), RGB+ Natural white 4000K (Base) |
| Select PCB Color : | White Background (Base), Black Background (Base) |
| Select PCB Thickness: | 3 MoZ (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

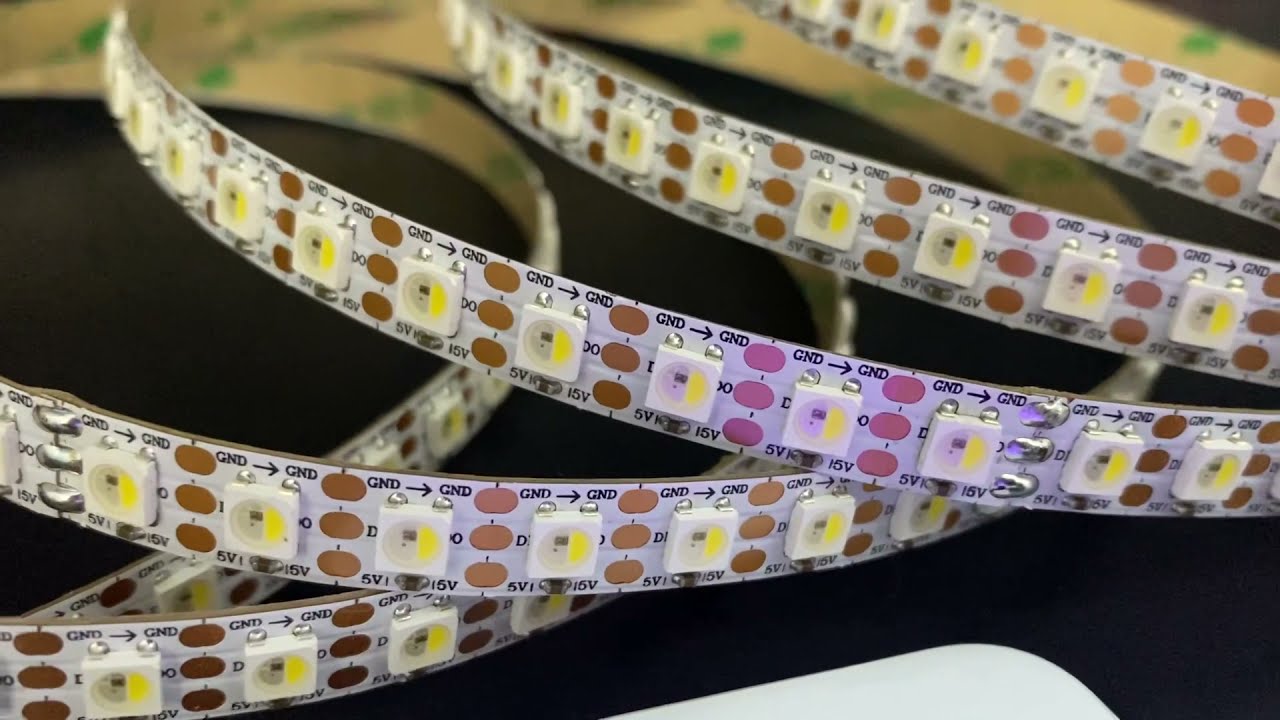

There are 96 Addressable RGBW 5050 LEDs per meter, and 10mm wide for the 96LEDs/meter, DC5V input, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
Only 1 digital output pin is required to send data down.
The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.
SK6812 Chips Specifications Download
Standards and Certifications
Specifications
Input voltage: DC5V
Power: 19.2 watt/meter, 96 watt/roll
LED Chip Model: SMD 5050
LED resource: SK6812 LED
Q'ty of LED: 96 LEDs/Meter Available
IC Type: SK6812IC (1 IC drives 1 led chip)
Q'ty of IC: 96 pixel /Meter
Cuttable: every LED is cuttable
Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.2cm(0.1 in )
Color Temp(K): RGB full color + 3000K/4000K/6000K white
FPC color: WHITE/BLANK PCB
Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
How to connect and control
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
