| Select Connector: | 2-Pin (V+, GND) (Base), DC Female Connector (Black) |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Operating Voltage: | 12VDC (Base), 24VDC (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Underwater IP68 - Adhesive Back, Waterproof IP67 - Adhesive Back |
| Wavelength: | 850nm (1-3 Days), 850nm (7 Days), 940nm (1-3 Days), 940nm (7 Days) (Base), 810nm (1-3 Days) |
| Availability | In Stock |
| Condition | Brand New |
Features:

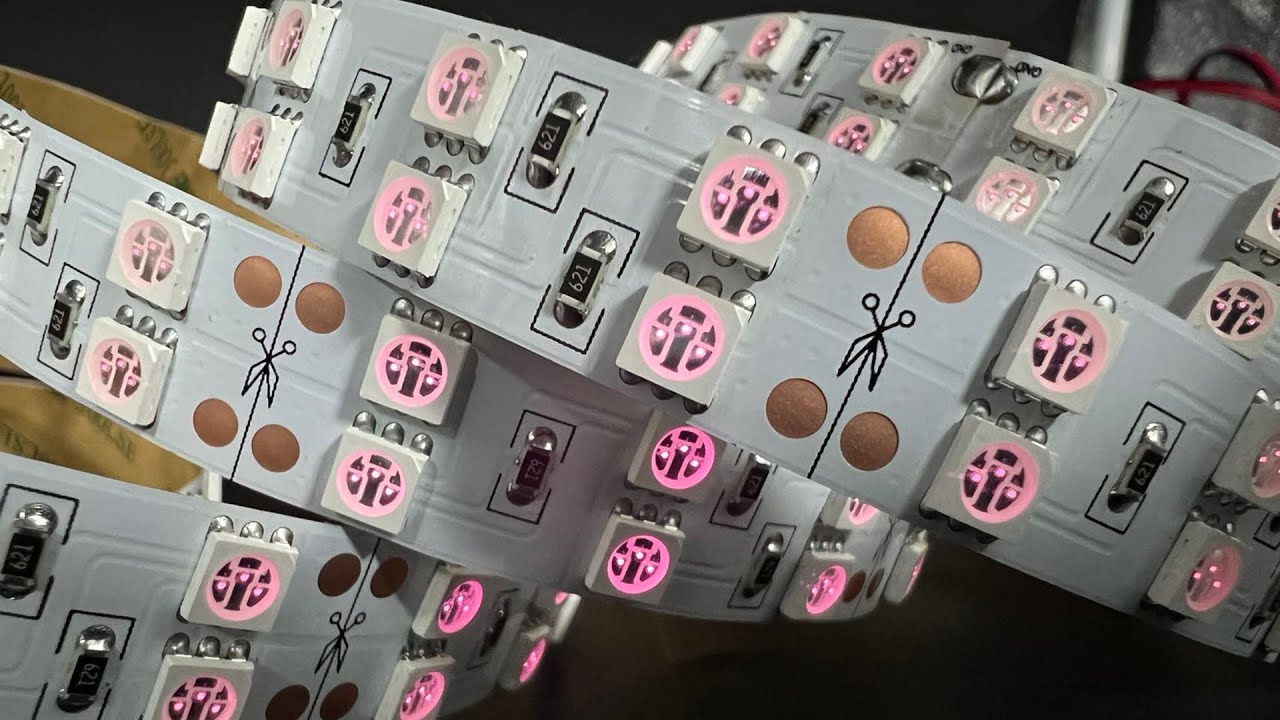

1. The 5050SMD LED strips with 150LEDs per 5meters/16.4ft, able to be the supplement light for night lighting, efficient energy, cuttable and dimmable.
2. The 940nm and 850nm infrared light strips with perfect penetrability, this will be an excellent option for you to use for the long-distance security camera.
3. Our red IR LED strips can emit stable light, and lower light consumption, good quality, 940nm 850nm 830nm 810nm light is invisible, 780nm 730nm 660nm 635nm light is visible.
4. Popular in security and surveillance, night vision lights, indoor/outdoor infrared light, multi-touch display, and so on.
If you wish to learn more about a specific wavelength or need to purchase individual supplements, please click the links below for details:
FSLSR-30-5050-660NM (660 nm deep red LEDs)
FSLSR-30-5050-730NM (730 nm bio red LEDs)
FSLSR-30-5050-850NM (850 nm IR LEDs)
660nm Red LED Spectrum Download
730nm Far Red LED Sepctrum Download
810nm NIR LED Spectrum Download
850nm Near Infrared LED Spectrum Download
940nm Infrared LED Spectrum Download
Standards and Certifications
Product Specification
LED Strip Type: Red Infrared LED Strip Light
LED Chip: SMD5050
Wavelength: 940nm, 830nm, 780nm, 850nm 810nm near infrared light, 730nm far red light, 660nm deep red light, 635nm vivid red light
Light Color: 940nm is invisible, 850nm 830nm 810nm 780nm is nearly visible (red dot), 730nm 660nm 635nm is visible red light
Dimension: every 3 LEDs can be cut for 12V; 6 for 24V
LED Quantity: 30 LEDs per meter (3.28ft)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12/24VDC
Working Power: 36W Max per roll
Lamp Luminous Flux(lm): 20-22lm/LEDs
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67, IP68
Application
*For surveillance or security
*For Night Version Light
*For the multitouch display
*For infrared automatic inspection and detection light.
