| Select Input Voltage: | 110V±20% (US, CA) (Base), 220V±20% (EU, UK, AU) (Base) |
|---|---|
| Select Light Color : | DMX512 RGB+White 3000K (Need DMX Console and Self-Programming) (Base), DMX512 RGB+White 6000K (Need DMX Console and Self-Programming) (Base), DMX512 RGB+White 4000K (Need DMX Console and Self-Programming) (Base) |
| Select Plug Type: | US (Base), UK (Base), EU (Base), AU (Base) |
| Availability | In Stock |
| Condition | Brand New |

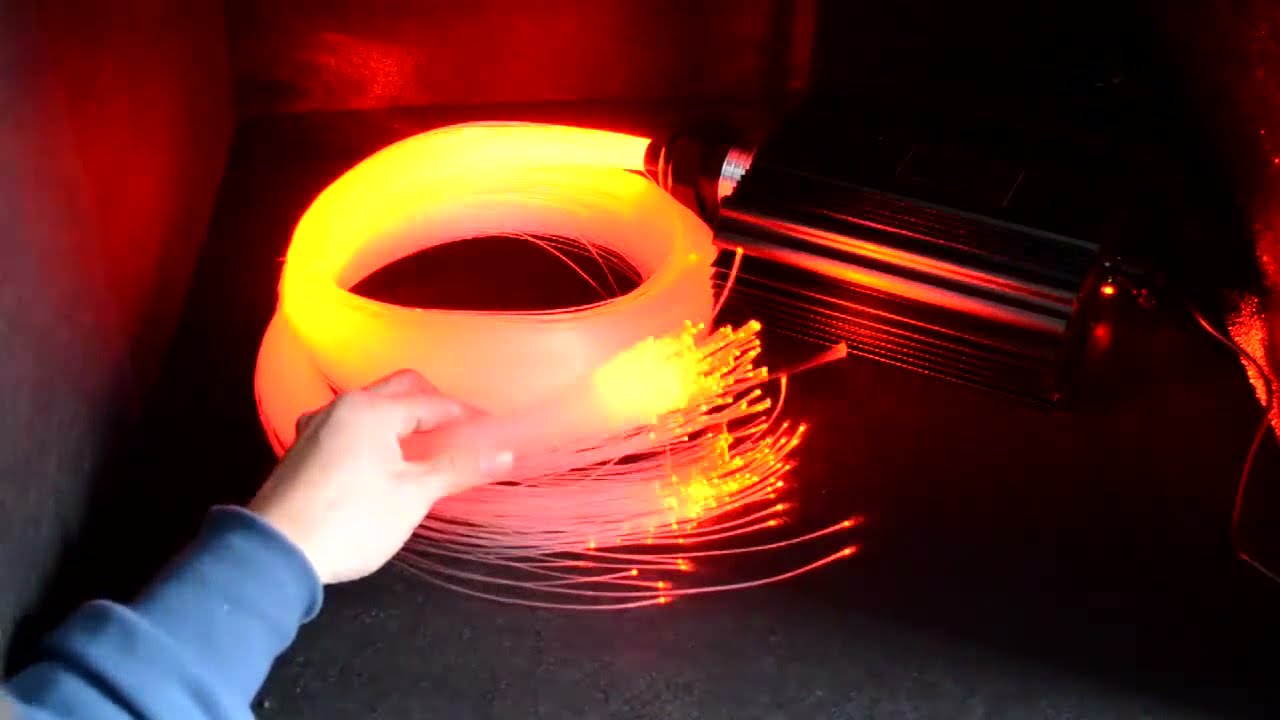

Welcome to use LED-DMX series DC12V fiber optic light engine, this illuminator adopts advanced microelectronic control technology, converts DMX512 standard digital signal into analog signal to control fiber optic lighting. The DMX RGBW fiber optic illuminator has a total of 7 channels, and each machine occupies 7 addresses. Each channel can achieve 256 control levels. Mainly used for DMX console to control it.
Product Features
1. International standard DMX512 input protocol, digital tube setting program or address, etc.;
2. 0-100% dimming output, a total of 256 gray levels;
3. During remote control, the light source comes with 5 test modes and 19 levels of change speed;
4. The shell of the light source is all made of aluminum alloy, and the heat dissipation is good to ensure a longer life of the LED.
This fiber optic lighting engine does not contain any fiber optic cables, you need to buy fiber optic cables separately
Please note that the color is RGBW, NOT RGB.
Specificaitons
Input Voltage: AC110V/220V
Rated Voltage: DC12V
Power: 32W (2*16W)
Output gray level: 256
Input Signal: DMX512/1990
Output DMX : 8 channels
DMX512 socket standard XLR
Light body material: Aluminum
LED chip: RGBW LED
Hole diamater: 20mm
Light change mode: static single color (Red ,Green, Blue, Yellow, White ,Ice blue,Pink,etc)& RGBW light changing (flash, fade, jump)&Adjust the brightness
Light source device size: L135*W95*H55mm
Lifetime: Over 50,000 hours
