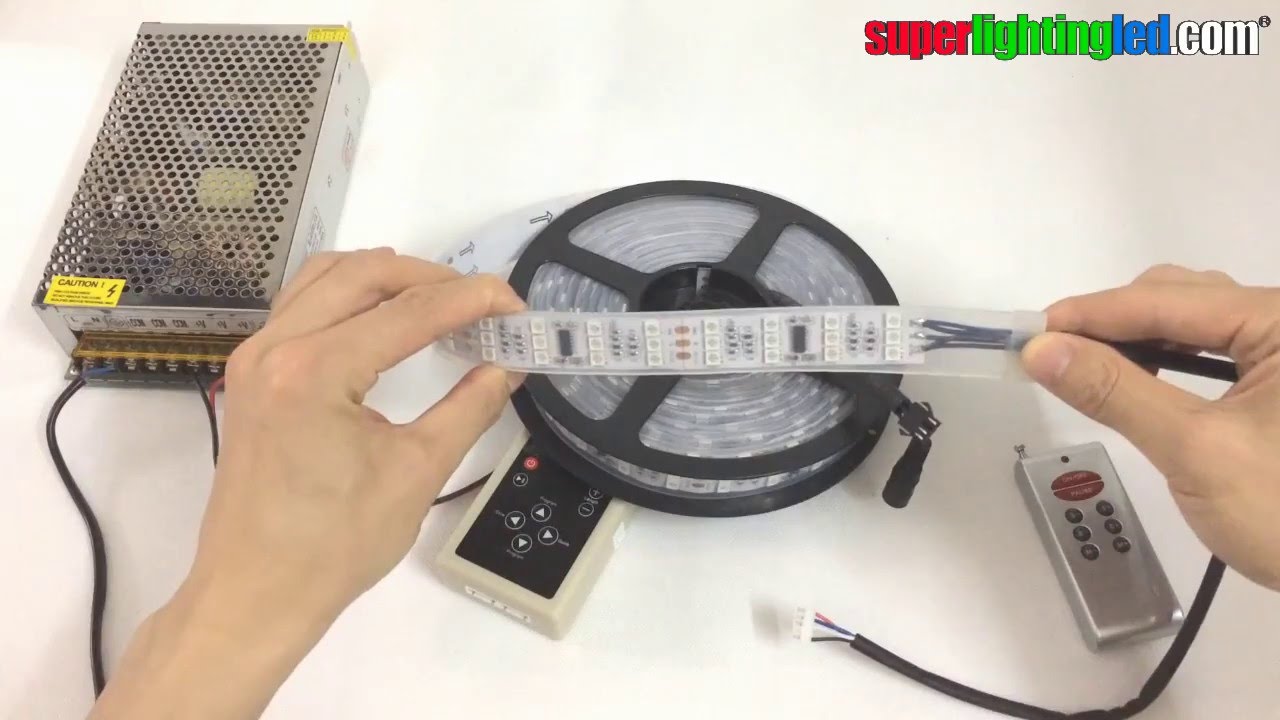

The LPD6803 TM1812 WS2801/2811/2812B IC 8key RF Controller for Dream Color RGB Magic LED Strip Lights, is designed to be used with the Dream Color series Silicone Enlcosed RGB Flexible Light Strip. Control the sequence mode, chase length, and speed of 133 different dynamic chasing patterns from the RF Remote Controller or directly on the RGB Controller unit. The Dream-Color systems controls each RGB LED in the strip independently. Chase patterns can be paused for static single and multi color effects. Includes 5/12VDC Power Supply for Controller, RF Remote and battery.
Product Specification
Type: Dream Color Remote Controller
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 years
Craft materials: ABS/Brand new and high quality
Working temperature: -20~+60°C
Supply voltage: DC 5/12V
Output: two SPI signal.
Length setup function: yes
Consume power: 2W
Moudle QTY: 133 programs to choose
Size: 9.5cm(3.74inch) x 5.8cm(2.28inch) x 2.6cm(1.02inch)
Function of controller panel
ON/OFF button, it can open or close led anytime.
Play/pause button, pressing this button to pause, you can see the static affection of led.
Adding button, to add the IC NUMBER, the most number is 1024.
Reducing button, to reduce the IC NUMBER, the least number is 3.
Program choosing button, up direction there are 133 programs in all.
Program choosing button, down direction.
Speed slow button, there are 100 step in all, the most number is 100.
Speed quick button, the least number is 1.
Function of remote panels
ON/OFF: ON/OFF button, it can open or close led anytime
MODE: Play/pause button, pressing this button to pause, you can see the static affection of led
S+: Speed quick button, the least number is 1
S-: Speed slow button, there are 100 step in all, the most number is 100
B+: Program choosing button, up direction there are 94 programs in all
B-: Program choosing button, down direction
M-: Reducing button,to reduce the IC NUMBER,the least number is 3
M+: Adding button, to add the IC NUMBER, the most number is 1024
Connection diagram
[ VIDEO: Watch on YouTube ]
[ VIDEO: Watch on YouTube ]
[ VIDEO: Watch on YouTube ]
[ VIDEO: Watch on YouTube ]
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
It is easy to install. Electric wires and cables are easily connected to the unit through connectors, which makes 100% secure connections.
1) Connect 2 output connection to Dream color LED Lights
2) Power up the unit with DC5/12V power source to the input interface. Make sure each cable is secured in its corresponding slot, avoiding a short circuit.
3) Turn on the power and enjoy.
Safety
Supply voltage of this product is 5/12 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Note
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Package including
1x RF remote(including the battery)
1x remote controller
