How does WS2812B addressable LED strip light work?
WS2812B LED is an upgraded version of the traditional built-in driver IC, which has a more distinctive effect on performance stability, data transmission speed, heat dissipation capacity, etc. By integrating the driver IC inside the SMD5050 LED, avoiding a large number of LED external chips, capacitor-resistor arrangement occupies a lot of space, shortening the distance of data transmission while bringing the driver IC and SMD LED closer.
WS2812B addressable LED strip supports DC5V low input voltage (which can work with DC5V USB LED power adapter), individually addressable (single LED can be cut), has higher brightness and purer luminous color than ordinary LEDs; serial single-wire cascade interface, data protocol using single-wire zero code communication mode, after the pixel is reset at power on, the DIN side accepts the data transmitted from the SPI controller, and the bit in the transmission is the same as that of the LED, after the pixel is reset at power-on, the DIN terminal accepts the data transmitted from the controller, the bit data is extracted from the first pixel and stored in the data latch, the remaining data is shaped and amplified by the internal shaping processing circuit and then forwarded to the next cascade pixel through the DO port, every time a pixel is transmitted, the bit signal is weakened, and the number of cascaded pixels is only limited by the signal transmission speed.
What we need to know before buying？

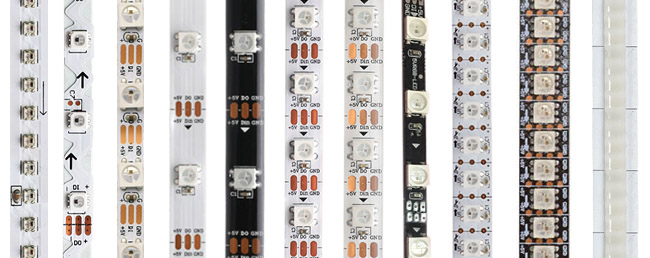

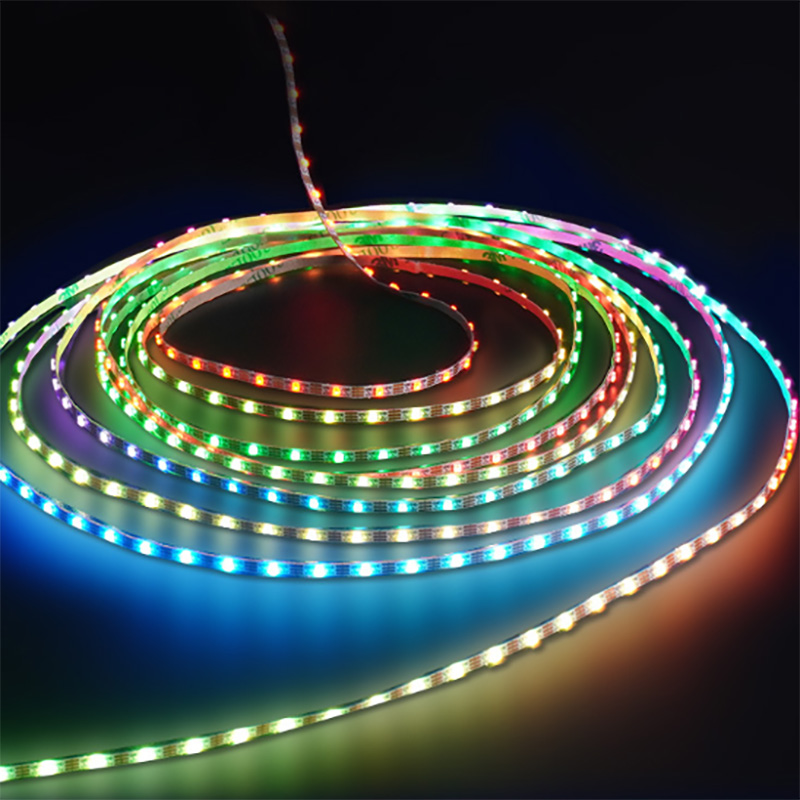

Any damage to the LED will cause the entire LED strip to not light up and require more power input (5m needs power supply at both ends) to avoid voltage drop caused by over long distance. WS2812B LED strip works with Arduino UNO development board / Raspberrypi or dream color controller can work together to adjust 256 levels of brightness scale, output 16 million kinds of light color, produce dynamic color chasing (running horse lighting effect). WS2812B programmable LED light strip is one of the LED light strips with a wide range of applications at present. It has certain advantages in cost. We provide you with a variety of customized light strip lengths, widths, waterproof grades, LED density, etc to choose from, which issuitable for Indoor and outdoor engineering lighting.
