| Select Input Voltage: | DC24V (Base), DC12V (Base) |
|---|---|
| Select Kit: | LED Strips (Base), LED Strips + Controller + Power Supply, LED Strips + Controller |
| Select LED Quantity: | 840 Chips/m (Base) |
| Select Length: | 16.4ft (5 meters) (Base) |
| Select PCB Height | 2.2mm (Base) |
| Select PCB Width: | 12mm (0.47in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

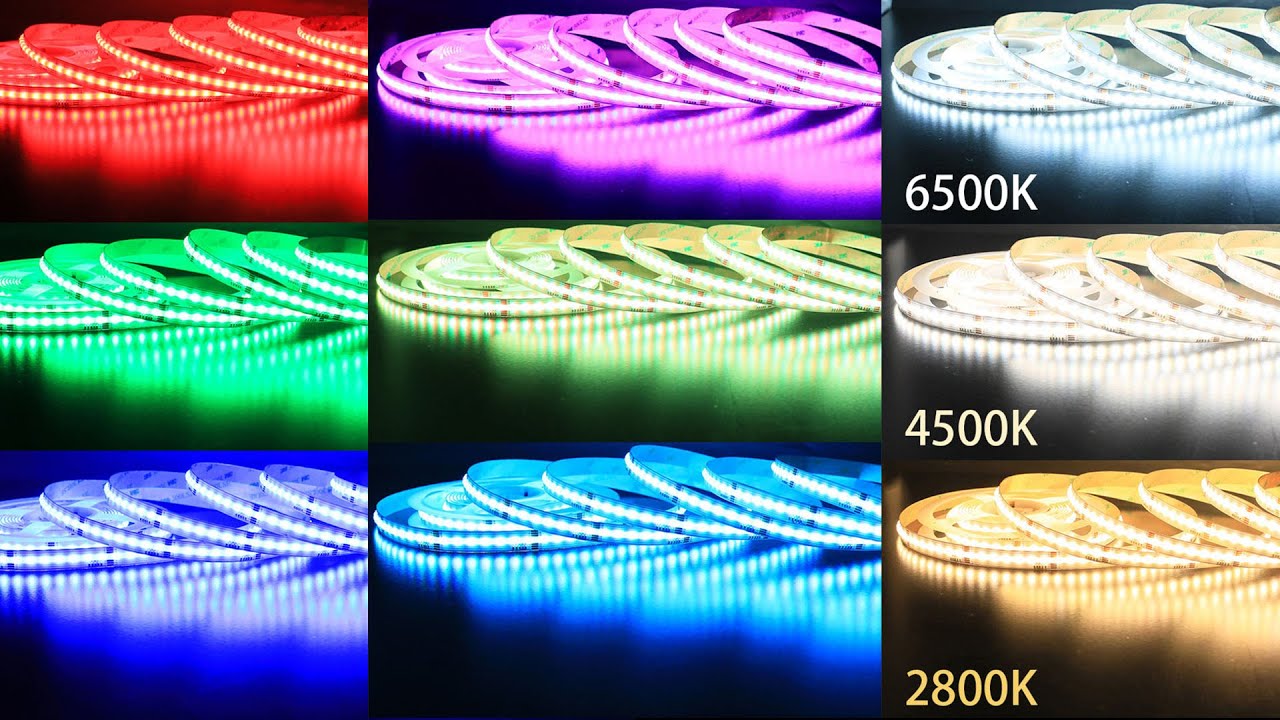

This RGBCCT COB led strip as a linear lighting fixture with uniform illumination, has both RGB color and tunable CCT white color from 2800K warm white to 6500K daylight, high color efficiency, which is 12mm width with DC24V low working voltage.
180-degree beam angle, large luminous area, 840 LEDs per meter, high brightness. Better flexibility of this RGBWW COB led strip lighting than SMD LED strip lights, can be bent at will. With 3M adhesive backing, easy to paste and install. IP20 non-waterproof COB led lighting strip and IP67 outdoor waterproof COB led light strip are available, suitable for indoor and outdoor lighting environments. The RGBCW COB LED strip light is inseparable from the LED DC power supply and RGB+CCT LED controller to achieve rich led color effects.
If you prefer RGBCCT dotess lighting effects, you can check the upgraded version of this product, designed with a thicker encapsulation coating to minimize light spots.

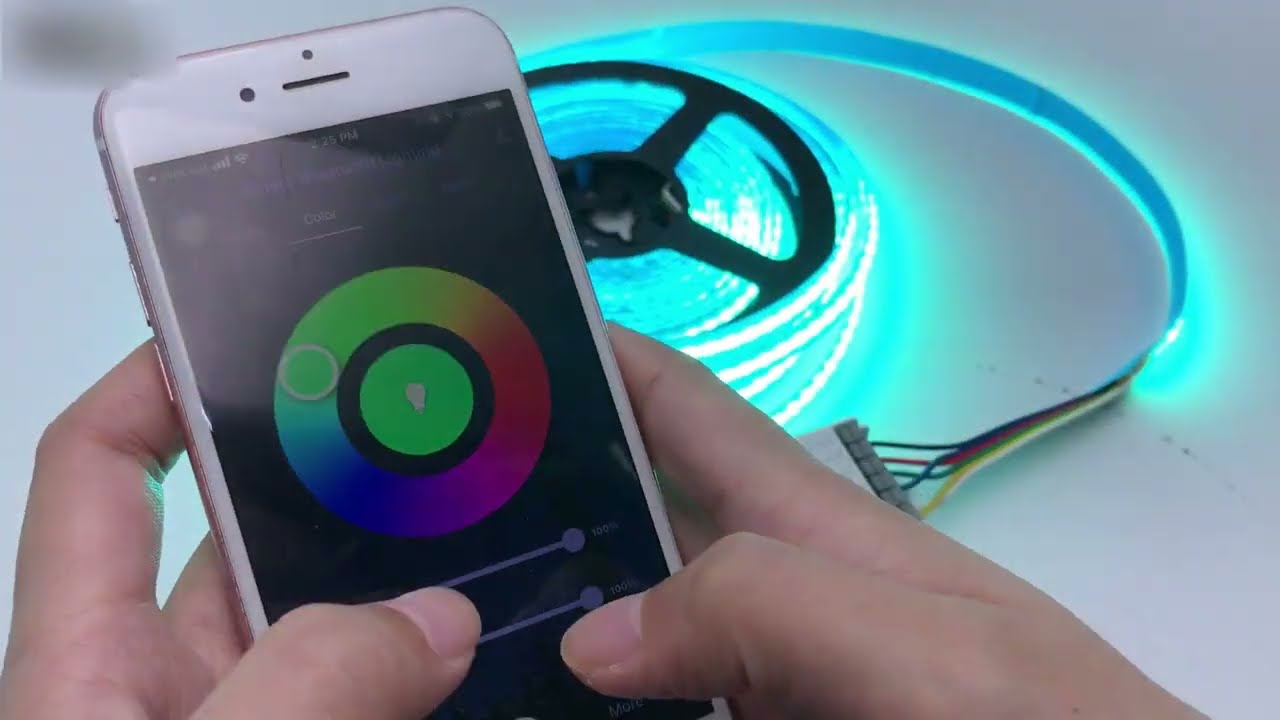

We recommend this WIFI & Bluetooth Tuya WB5 5 in 1 led controller and this 12V / 24V 150W MW power supply.
If you choose the COB led strip light kit, you will receive a 5m/16.4ft RGB+CCT COB led strip, a WB5 5 in 1 controller, and a 12V / 24V DC 150W led power supply.
|
Testing has shown that the cob 2.2mm-height RGBCCT light strips with IP68 waterproofing exhibit an excessively high failure rate. It is recommended to opt for IP67 waterproofing or select a 3.4mm-height RGBCW alternative. |
Spectrum Test Report
Standards and Certifications
| LED Strip Type: | COB RGBCCT LED Strip |
| Brand: | SuperLightingLED |
| Input Voltage: | DC24V |
| PCB Width: | 12mm/0.47in |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| Power: | 20W/M, 90watt/roll |
| LED Color: | RGB+CCT, Warm White(2800-3200K); Netural White(4000-4500K); Daylight White(6000-6500K) |
| LED Quantity: | 840 LEDs/m, 4200 per roll |
| Lumen: | R: 505 lm/m G: 2010 lm/m B:392 lm/m C:1342lm/m W:1296 lm/m RGBCW: 1071 lm/m |
| Cut Length: | 41.6mm/ 1.63in |
| Beam Angle: | 180° |
| CRI: | Ra>90 |
| Length: | 5m/16.4ft |
