| Select Kit: | LED Strips (Base), 10m/32.8ft kit, 5m/16.4ft kit |
|---|---|
| Select LED Quantity: | 192LEDs/M (Base) |
| Select Length: | 16.4ft (5 meters) (Base), 32.8ft (10 meters) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

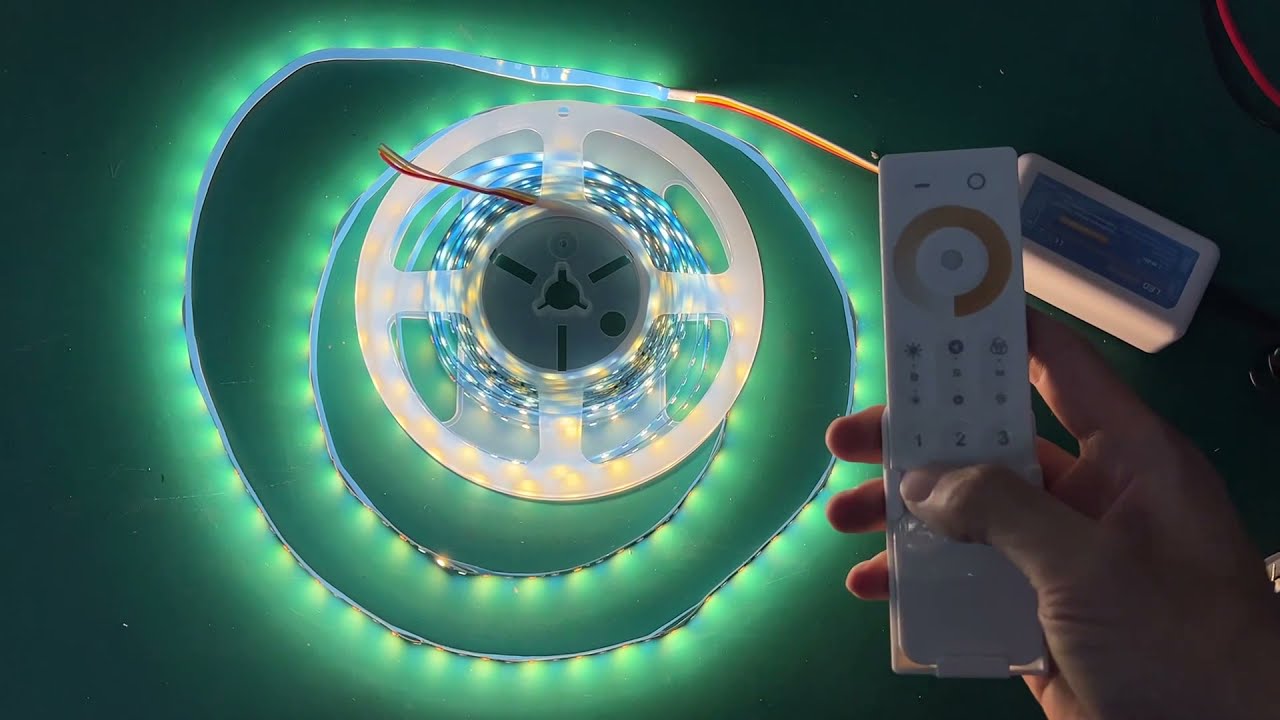

High density CCT dimmable led strip light with 192 lights per meter (96 warm white LEDs + 96 daylight white LEDs), warm white led lights and daylight white led lights are independent of each other, you can control the color temperature of all the lights or just turn on the warm white light or pure white light to suit your different activity needs. Warm white for rest and relaxation, and pure white for tasks, adapt to various applications like ceilings, under cabinets, under bed, background wall, etc. And it is perfect to make led neon lights with silicone led diffuser, no light spot and soft linear light.
This dimmable led strip uses 2835 SMD LEDs, high efficiency, each 20.8mm/0.81" (4 lights) can be cut, you can cut the strip to your desired length with more accurate precision. This CCT tunable led strip light is powered by DC24V low voltage, matched with 24V led dimmer and 24V DC led power supply to use. If you choose the kit "LED Strip + Controller + Power supply", you will receive a CCT dimmable led strip, a CCT dimmer WB5, and a power adapter for 5m, the same controller and LRS-200-24 meanwell hardwired power supply for 10m.
Standards and Certifications
Product Specification
| LED Strip Type: | SMD 2835 960LEDs 16.4ft Tunable White LED Strip Lights |
| CRI (Ra>): | 95 |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | Warm White+Daylight White |
| Color Temperature CCT(White): | Warm White(2800-3500k), Natural white(4000-4500k) Daylight White(5000-6500k) |
| Input Voltage: | 24V DC |
| Dimension: | 16.4ft/roll, every 12 PCS LED can be cut (62.5mm/2.46") |
| LED Quantity: | 192 LEDs per meter (96 warm light LEDs + 96 daylight LEDs) |
| Lifespan: | 50,000+hours |
| Dimensions: | L500cm(196.8 in ) x W0.8cm(0.31in ) x H0.25cm(0.10 in ) |
| Luminous Flux(lm): | 7~8lm/LEDs 1525lm/16.4ft 93lm/ft 31.8lm/w |
| Working Power: | 14W/m, 70W/16.4ft Max |
| Waterproof Rating: | Non-waterproof IP20 / Indoor Waterproof IP65 / Indoor & Outdoor Waterproof IP67 / Underwater proof IP68 |
| Beam Pattern: | 120 degrees |
How to wire CCT dimmable led strips?
1. Connect the tunable white led strip to a controller:
