Wireless Dimmable LED Driver

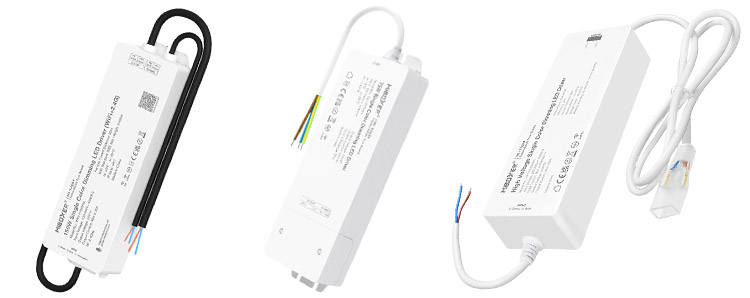

An integrated led strip dimmable driver combines an AC-to-DC constant-voltage power supply and a wireless receiver inside a single housing. Instead of wiring mains AC to an external transformer and then running low-voltage DC to a separate rf led controller, you feed AC line voltage directly into the driver terminals. The unit outputs PWM-regulated 12V or 24V directly to your LED strip lights, handling dimming and color adjustment via 2.4GHz RF, WiFi, or Bluetooth without separate interconnect cables.

A dimmable driver for led strip lights in this category receives constant, unchopped AC mains voltage and executes dimming on the secondary DC side using internal PWM. In contrast, an ac triac dimming system requires a phase-cut wall dimmer to chop the AC wave before the driver converts it. Because our wireless dimmable drivers receive line-voltage AC continuously, they maintain internal logic power for WiFi and RF antennas 24/7, providing smooth dimming down to 1% without the phase-flicker or transformer buzzing common to older line-voltage dimmers.

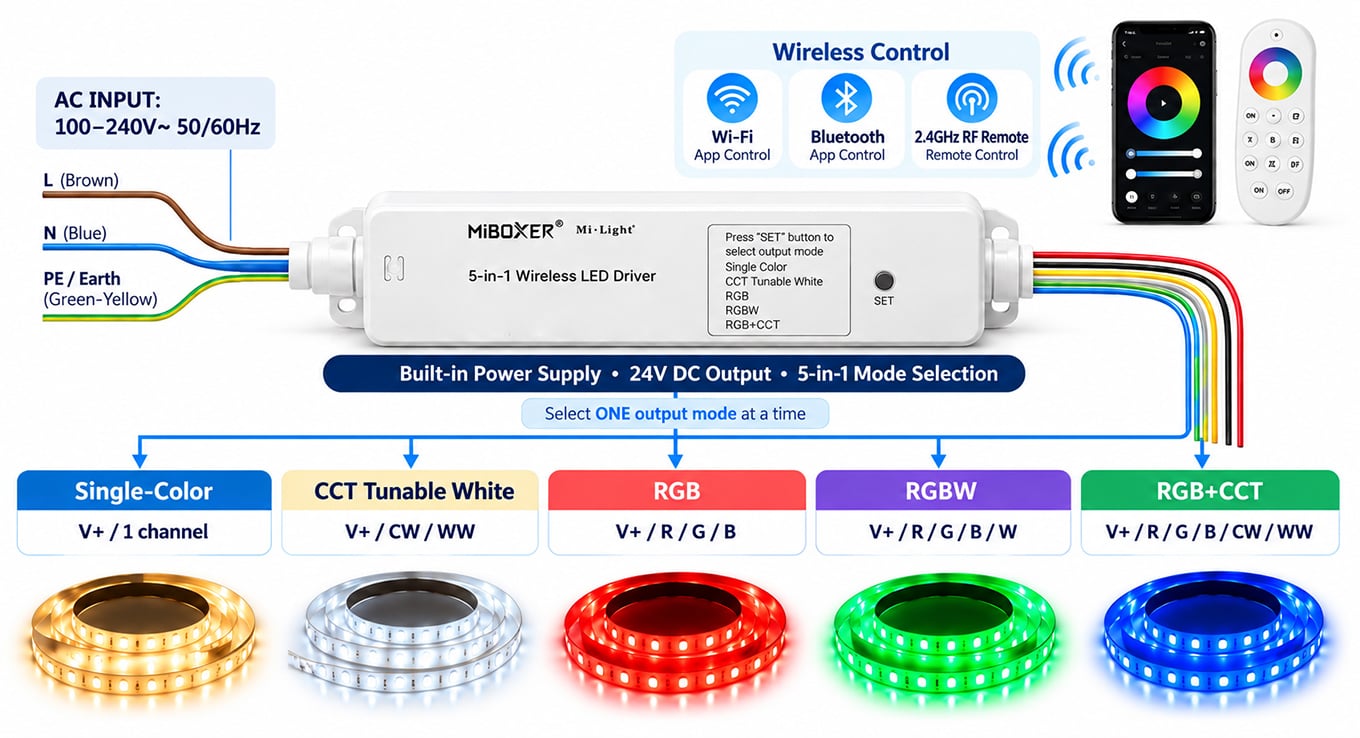

A 5-in-1 dimmable led controller driver features five low-voltage DC output channels that adapt to single color, tunable white, RGB, RGBW, or RGB+CCT tape via an onboard toggle button or app selection. In single-color mode, all terminal channels synchronize to deliver maximum current to one zone; in RGB+CCT mode, the driver splits current across five distinct lines (V+, R, G, B, W, C).

Yes, every dimmable led driver with remote in this series pairs directly to any MiBoxer 2.4GHz handheld remote or wall panel without needing a router or internet gateway. Direct RF communication operates reliably up to 30 m through drywall and timber framing. If you install these dimmable drivers for led lights in a remote cabin, commercial display, or jobsite without network access, handheld remotes and battery wall transmitters command dimming, dynamic light scenes, and color temperature right out of the box.

A wifi led driver dimmable with dual WiFi and Bluetooth automatically shifts to short-range Bluetooth control when your local router drops offline or loses internet connection. Open the Tuya Smart or Smart Life app near the fixture, and your phone sends commands directly over local Bluetooth BLE. Concurrently, the built-in 2.4GHz radio remains completely independent of home WiFi, meaning physical handheld remotes and battery-operated wall panels will never miss a beat even if your home network is completely down.

Calculate your total tape wattage and apply a 20% safety headroom so your dimmable led driver never runs at 100% continuous load. If you install 8 m of 24V LED tape rated at 14.4 W/m, total power draw is 115.2 W. A 120W unit would run at 96% thermal capacity, shortening internal capacitor life. Instead, choose a 150W dimmable driver for led strip lights, which keeps operating load at a comfortable 76.8% and prevents the driver's over-temperature protection circuit from throttling output in enclosed ceiling coves.

Yes, you can power a dimmable led driver from a regular mechanical on/off light switch, and its non-volatile onboard memory will preserve your previous brightness and color setting. When you flip the wall switch back on, the driver restores your dimming level within 0.5 seconds without resetting to full brightness. Do not wire this driver downstream of an existing wall-mounted electronic dimmer switch; fed with chopped voltage, the driver's internal switching supply will overheat and fail.
