| Select Handheld Remote: | No (Base), RB1 Dimmer Remote, RB2 CCT Remote, RB3 RGB Remote, RB4 RGBW / RGBCCT Remote |
|---|---|
| Select Panel Remote: | No (Base), RC1 Dimmer Panel, RC2 CCT Panel, RC3 RGB Panel, RC4 RGBW / RGBCCT Panel |
| Availability | In Stock |
| Condition | Brand New |
SP630E is a SPI+5CH PWM all-in-one LED strip controller, with multi light control functions in one device. It's available to connect and control 2-pin single color led strip lights, 3-pin CCT color temperature led strips, 4-pin RGB led strip lights, 5-pin RGBW led strips, 6-pin RGBCCT led strips, addressable RGB RGBW RGBCCT led strips, and addressble+PWM combined LED strips. Upgraded WiFi version SP530E.
The 12-in-1 Multi-Function LED Controller adapts Bluetooth wireless control technology, which allows you to use Mobile APP to control the strip lights.

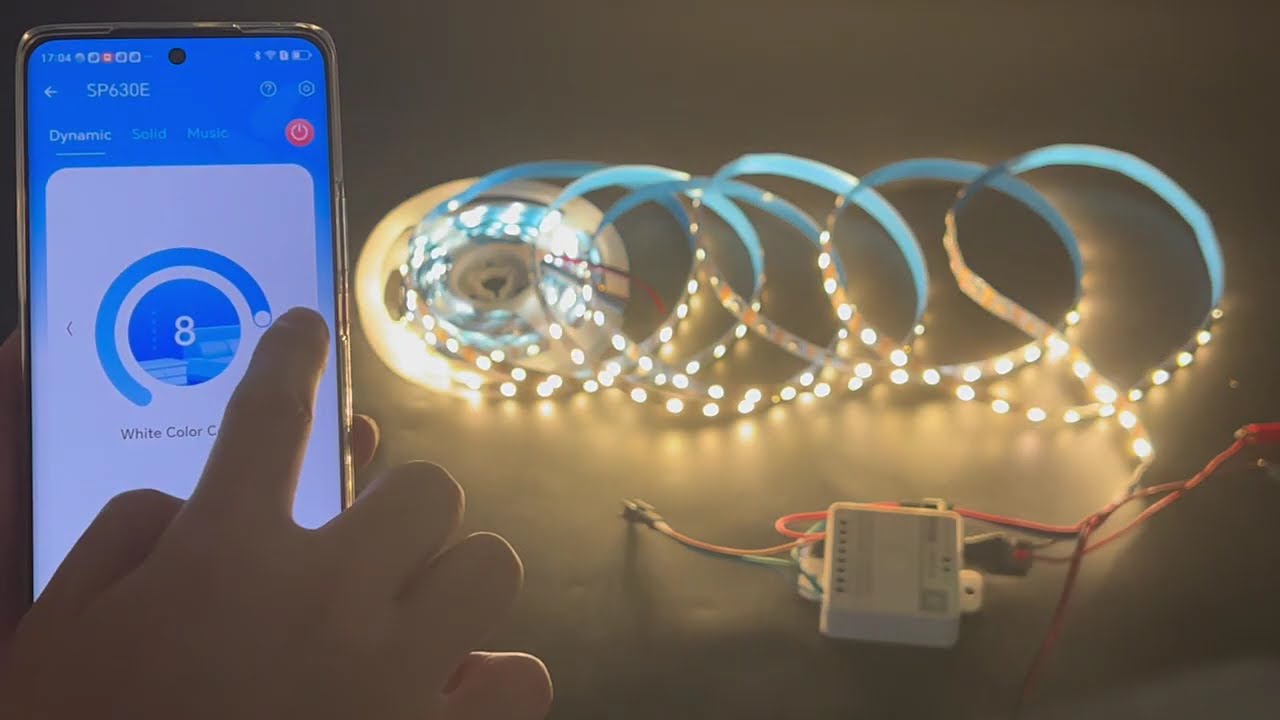

Open your cellphone Bluetooth, find the controller Bluetooth, then connect it. Scan the QR code on the controller or find the APP in App Store or Google Play, and download the control software “BanlanX”, now you can intelligently control your home lighting.
If you want to use this SP630E controller for addressable RGBW led lights, please pay attention that it is NOT COMPATIBLE WITH TM1814 and WS2814 RGBW IC CHIPs.
Compatible IC Chips:
RGBIC: WS2812B, SK6812, WS2811, WS2815, UCS1903, etc.
RGBWIC: SK6812, TM1824, SM16704, UCS2904, etc.
RGBCCTIC: TM1906, FW1906, WS2805
Digital White IC: WS2811, WS2815, etc.
SP630E Manual Download
SP630E Test Report
RB&RC Series Remote Control Manual Download
Standards and Certifications
Product Specification
| Product Name: | SP630E SPI+5CH PWM All-In-One LED Controller |
| APP: | BanlanX |
| Input Voltage: | DC5-24V |
| Output Channel: | 6A/CH |
| Total Output: | Max 12A |
| Mobile System: | Andriod 4.4/ IOS 10.0 or higher |
| Dimensions: | 78mm*56mm*20mm |
| Working Temperature: | -10℃ ~ 60℃ |
| IP rating: | IP20 |
