SP530E WiFi Bluetooth RF Music LED Strip Light Controller (Upgraded of SP630E)
Related Products
SP530E WiFi Bluetooth RF...
$15.98
12V SK6812 300 Pixels...
$48.98
DC5-24V SP630E 12-in-1...
$10.98
12V Individually...
$32.98
WS2811 DC12V Addressable...
$34.98
Mean Well LRS-200-12...
$45.00 $37.9816% off
WS2805 Dual Signal 5-In-1...
$30.98-
Special Price: $15.98
The newest mini LED strip light controller of BanlanX SP series, SP530E, is the upgraded version of SP630E, which can output PWM signal and SPI (TTL) signal to control almost all types of LED light strips. SP530E is an SPI+5CH PWM All In One IoT LED Controler, a versatile IoT light controler designed for controlling mutiple types of led strips. New SP530E utilizes a dual-mode module (2.4G WiFi and Bluetooth LE5.0), enabling Bluetooth, WiFi, local network, and cloud connection via BanlanX App, it also supports RF remote control (RB and RC series remotes).
The upgraded SP530E supports WiFi function and can be controlled by Google Assistant, Amazon Alexa, Xiaodu, Xiao Ai, and other smart voice control speakers, the BanlanX APP supports Bluetooth, LAN, and remote cloud connection at the same time.

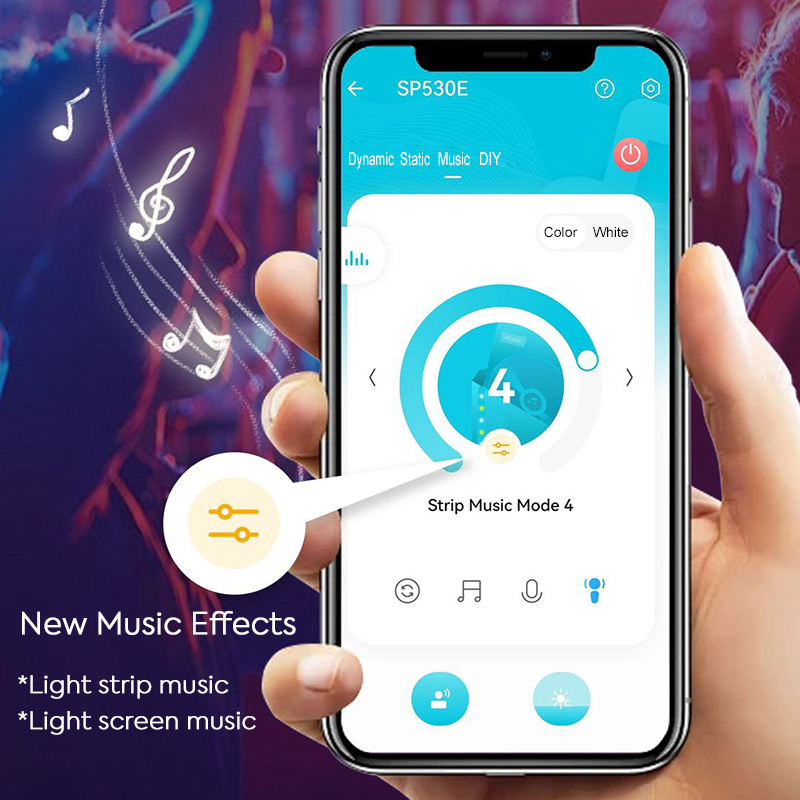

The SP530E controller is built-in with new upgraded music effects, including multi-band music effects and light screen music effects, so that you can freely configure the lighting effects according to the rhythm and atmosphere of the music.
● SP530E Supports multiple control methods, including App control, smart speaker voice, command control, and 2.4G RF remote control, providing users with flexible control options. Integrated with "BanlanX" Cloud for stable loT smart home cloud connections.
● All-In-One 12-in-1 LED controller, supports 12 different types of light strips, including single color dimming, CCT color temperature adjustment, RGB, RGBW, RGBCCT color change, addressable SPI light strips, and SPI+PWM light strips, automatic switching of control interface.

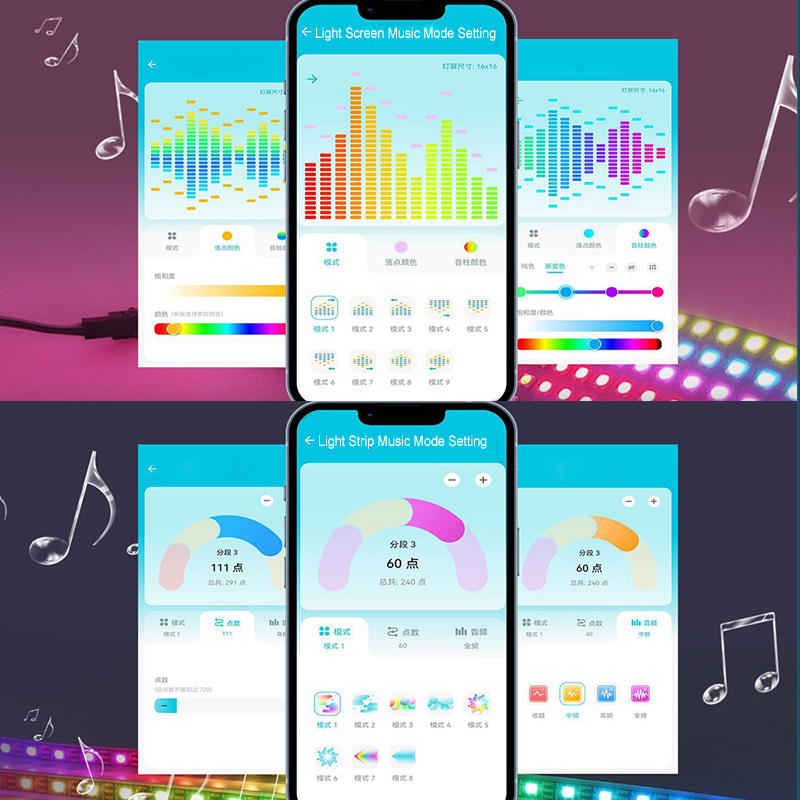

● Light screen music effect: flexible configuration of the size and alignment of the light screen, can set the parameters of the light screen drop sound column, such as color, saturation, direction, etc., more diverse music lighting effects.
● Multi-segment light strip music effects: users can configure the effect number and point of led strip segments as needed, and different music effects can be selected for each segment of the light strip. New audio range selection, including high, medium, low, and full frequency four ranges, to provide more lighting creativity.
● Multiple music capture methods: mobile phone microphone, player streaming, and on-board microphone.
● Switching lighting modes freely: static, dynamic, music, and customized functions. Support power on/off dynamic effects setting, timer settings, playful on/off, triggering settings, and default power-on status setting.
● Support OTA firmware upgrades, keeping the device in its optimal state.
● Mini controller size, 78*56*20mm, does not take up space, easier to hide.
● PWM single output maximum current is 6A, the overall output of the SP530E controller does not exceed 12A.
Compatible IC Chips:
RGBIC: WS2812B, SK6812, WS2811, WS2815, UCS1903, etc.
RGBWIC: SK6812, TM1824, SM16704, UCS2904, etc.
RGBCCTIC: TM1906, FW1906, WS2805
SP530E vs SP630E
| Type: | SP530E | SP630E |
| Wireless Protocol: | WiFi, Bluetooth, Cloud | Bluetooth |
| Control IC Pixels: |
W - 1200 CCT - 1200 RGB - 1200 RGBW - 900 RGBCCT - 600 |
W - 600 CCT - 600 RGB - 600 RGBW - 450 RGBCCT - 300 |

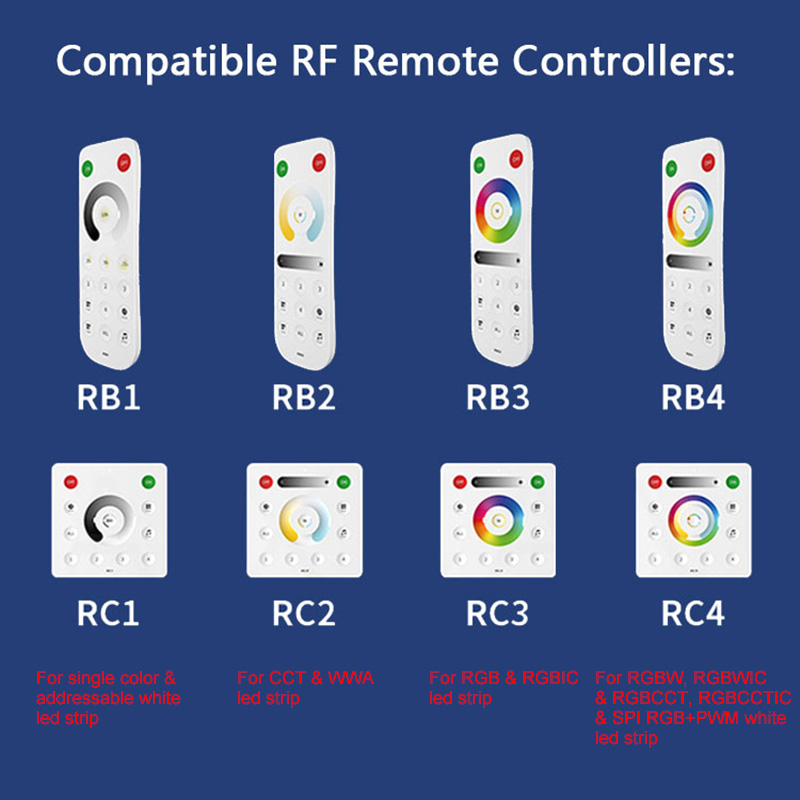

| Compatible Remote Control: | RB1, RB2, RB3, RB4, RC1, RC2, RC3, RC4 | RB1, RB2, RB3, RB4, RC1, RC2, RC3, RC4 |
| Firmware Upgrade: | Yes | Yes |
| On/Off Effect: | Yes | Yes |
| Music Mode: | LED strip light music and led screen music effects (for addressable led strips) | Only led strip light music effects |
| DIY Mode: | Gradient color selection (for addresable led strips) | Only static colors |
| Voice Control: | Yes (Google Home, Alexa) | No |
| Support LED Types: | 12 | 12 |
SP530E Manual
RB&RC Series Remote Control Manual
Product Specification
| Product Name: | SP530E SPI+5CH PWM All-In-One LED Controller |
| APP: | BanlanX |
| Input Voltage: | DC5-24V |
| Output Channel: | 6A/CH, Max 12A total |
| Wireless Protocol: | WiFi, Bluetooth, RF 2.4G |
| Mobile System: | Andriod 4.4/ IOS 10.0 or higher |
| Dimensions: | 78mm*56mm*20mm |
| Working Temperature: | -10℃ ~ 60℃ |
| IP rating: | IP20 |
