| Select Input Voltage: | DC24V (Base), DC12V (Base) |
|---|---|
| Select Kit: | LED Strips (Base), LED Strips + Power Adapter, LED Strips + Power Supply |
| Select LED Quantity: | 8mm 528Chip/m (Base) |
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | Natural White(4000K) (Base), Warm White(2700K) (Base), Daylight White( 6500K) (Base), Warm White (3000K) (Base), Warm White (3500K) - Only 24V, Daylight White (5000K) - Only 24V, Warm White (2400K) - Only 24V |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back, Waterproof IP67 - Adhesive Back, Underwater IP68 - With Brackets |
| Availability | In Stock |
| Condition | Brand New |
Free-cutting DC 12-Volt or 24-Volt Copper PCB Linear COB Strip Lights, flexible and easy to install. You can cut anywhere on this cob strip without affecting the rest of the strip to work, no matter how long your project needs to run, it will fit well. You don't have to figure out if a cob strip lighting with multiple segments will fit the length of your project. There is a soldering point every 50cm/20 inches, allowing you to inject extra power to avoid brightness degradation caused by voltage drop during long distance transmission.
Utilizes COB chip-on-board technology, with 528 LED chips per meter directly integrated on the same copper printed circuit board. Three different color temperature white light outputs are provided, 2700K 3000K 3500K (warm white), 4000K (natural white) and 5000K 6500K (daylight white), adapting to different lighting needs. The back of the copper PCB comes with double-sided adhesive tape, which is peel-and-stick and quick to stick to various surfaces.
|
Copper-PCB Cut Anywhere Cob LED Strips
|
DC12V | DC24V |
| 720Chips/m (8mm) | No | 3000K, 4000K, 6000-6500K |
| 528Chips/m (8mm) | 2700K, 3000K, 4000K, 6000-6500K | 2700K, 3000K, 3500K, 4000K, 5000K, 6000-6500K |
| 528Chips/m (10mm) | No | 4000K |
| 480Chips/m (6.6mm), the MOQ is 1,000 meters | Out of stock | Out of stock |
| 400Chips/m (8mm) | 3000K, 4000K, 6000-6500K | 3000K, 4000K, 6000-6500K |
| 400Chips/m (10mm) - Immersion Gold PCB | No | 2700K, 3000K, 4000K, 5000K |
12V or 24V Input, Cut at will
High density 528 chips and max 14W per meter, 12V 8A power adapter PSPS-12V-96W / 24V 4A PSPS-24V-96W or 12V 8.5A LRS-100-12 / 24V 4.16A LRS-100-24 Meanwell power supply in the kit
Copper PCB, 8mm strip width
The whole yellow PCB can be soldered with tin
Dimming via external dimmer

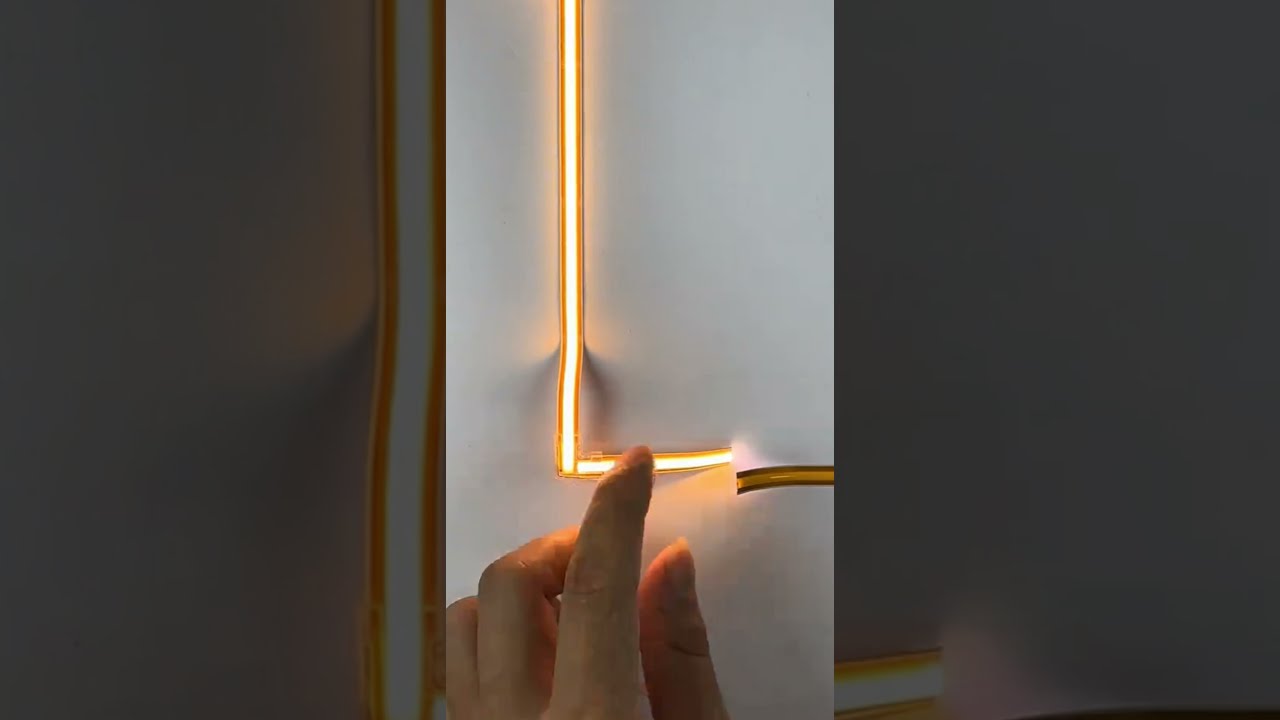

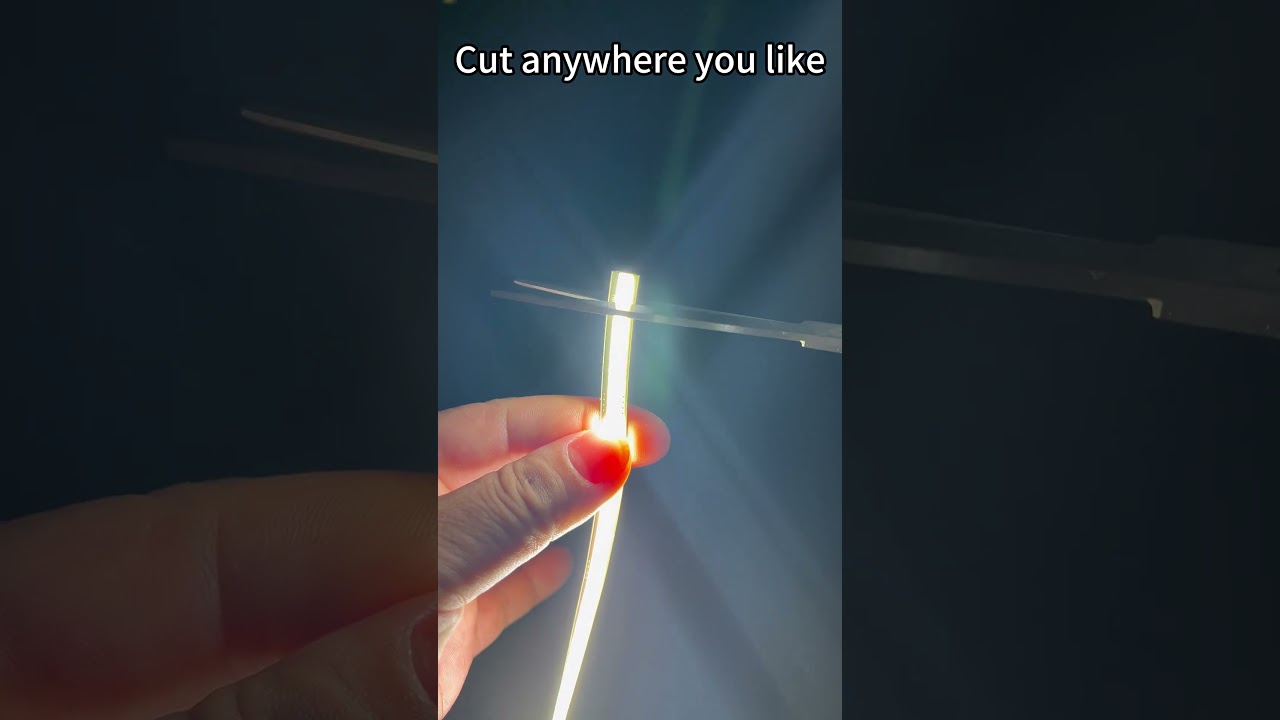

In this video, we use this free-cut COB LED strip, easy to control length.
| Product Type: | Free Cut Copper PCB Linear COB Flexible LED Strip Light |
| Power: |
Max 14W/m, 70W/16.4ft Roll |
| Input Voltage: | DC12V, DC24V |
| Dimensions: |
L5m/16.4ft*W8mm*H2mm (IP20); W10mm*H6mm (IP67 IP68) |
| LED Quantity: | 528 LEDs/m |
| Cut Segment: | Anywhere |
| LED Color: |
2700K 3000K 3500K warm white, 4000K natural white, 5000K 6500K daylight; |
| Beam Angle: | 180° |
| Waterproof Rating: | Non-waterproof IP20 / Silicon tubing waterproof IP67 IP68 |
| CRI: | 90 |
| Lumen: | 792lm/m |
| Installation: | Adhesice backing or mounting brackets |
| Outlet Cable: | 2-pin power wires |
| Lead Time (excluding shipping): | 1-3 workdays (IP20/67), 4-5 days (IP68) |
