| Select Kit: | LED Strips (Base), LED Strips + Controller + Power Supply |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Type: | 3P Single Data - Black PCB (Base), 3P Single Data - White PCB, 4P Dual Data - White PCB |
| Select PCB Width: | 10mm (0.39in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

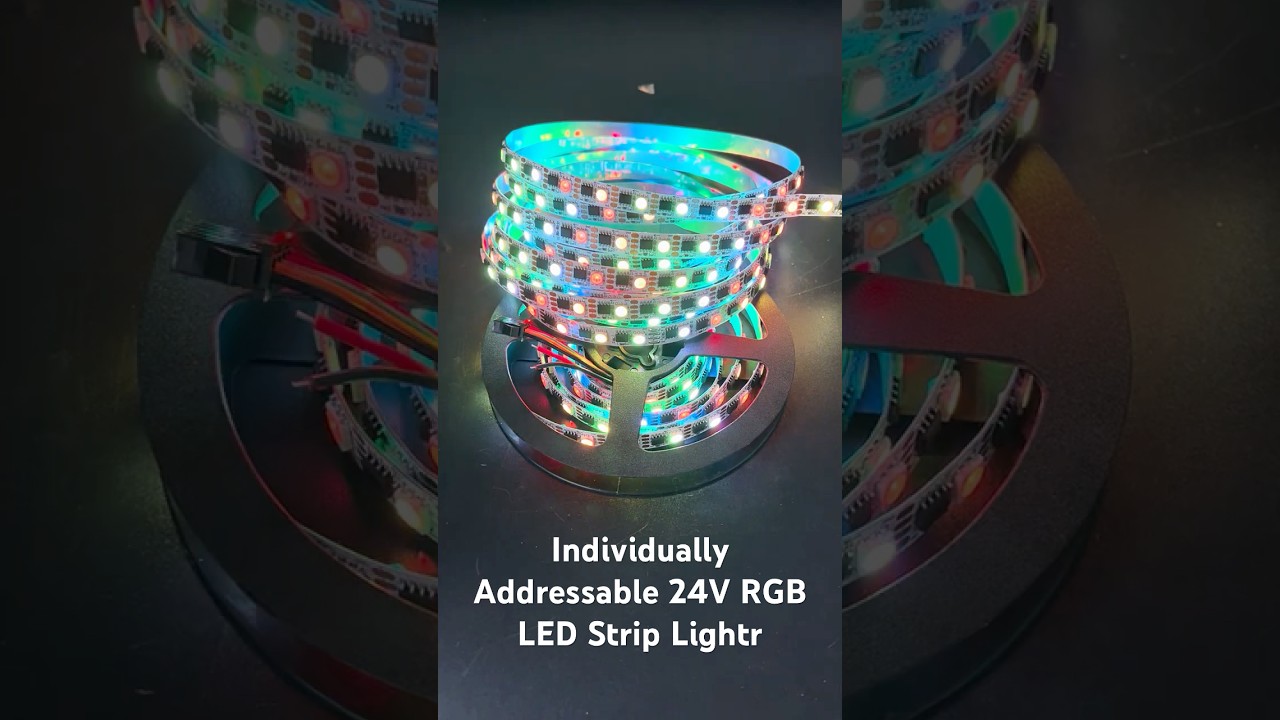

This programmable led strip light with individually addressable led chip is a completely new design developed to meet the needs of high-end lighting. Each SMD5050 LED is equipped with an external RGBIC chip, making the strip light individually addressable at 24V power supply (LRS-100-24 Model in the kit). The SPI signaling of this rgb changeable led strip light is more compatible with all major control systems than our previous wide-voltage programmable led strips, providing greater flexibility and reliability.
We offer three 24V individually addressable RGB led strip lights to meet the needs of different projects. The main difference between these three strips is the way they are driven:
• TM1903 / 1924 single signal line drive - one cable controls the entire strip light, 3 pins, similar to WS2811; available in black PCB (per LED cuttable) and white PCB (two LEDs cuttable);
• LB1924 TM19243 (external IC) / CS8812 (built-in IC) dual data signal drive - two cables control the strip, improving signal stability and reliability, 4 pins; (Due to excessive operating temperatures in the CS8812 built-in model, it has been temporarily discontinued.)
Through the WiFi RGBIC controller X7 Model in the kit, you can control the RGB color, brightness and dynamic effect of the light strip anytime and anywhere via Tuya APP, with multiple preset scene modes.
• Each LED is an independent pixel and can be individually adjusted for color and brightness
• 24V strip has a lower voltage drop over long distances, maintaining light brightness and uniformity
• Ideal for long distance wiring applications such as stage lighting, advertising displays
• Multiple waterproofing types are available
The CS8812 IC built-in version can be made into a 10-meter length with small voltage drop. If you require a single 10-meter, please purchase two 5-meter strips and note that you need one 10-meter reel. We will ship the correct item based on your note.
1. 24V individually addressable led strip: when you need long-distance linear lighting and easy installation.
2. 24V individually addressable led panel sheet: when you want large-area uniform lighting or customized graphic effects.
3. 24V individually addressable led pixel string: when you need three-dimensional dynamic lighting or ultra-lightweight design.
| Item Type: | Individually Addressable RGB LED Strip |
| LED Chip: | External RGBIC Chip + SMD5050 LED |
| Input Voltage: | DC24V |
| Power: |
14.4W/m, 72W/roll 4-pin white PCB version: 18W/m, 90W/roll |
| LED Color: | RGB |
| Strip Width: | 10mm/0.4in for IP20, 12mm for IP67+IP68 |
| LED Quantity: | 60LEDs/m, 300LEDs/Roll |
| Control Pixel: | 60ICs/m, 300Ics/Roll |
| Cut Segment: | 1-LED (16.66mm/0.65in), 2-LED (33.33mm/1.3in) |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 IP68 |
| Lumen: | 20-22 lm/LED |
| Beam Angle: | 120° |
| Strip Length: | 5m/16.4ft |
