DC24V MW UL-Listed Power Supply

In LED strip lighting applications, a 24V power supply is an electrical device that converts household AC power (typically 120V or 240V) into low-voltage 24V DC output required by LED strips. Any device that provides a stable 24V DC output suitable for LED operation can be considered a 24V power supply. When selecting a driver for your 24V LED strip, always check key specifications such as output voltage, wattage capacity, efficiency, and compatibility with controllers or dimmers.

In this MeanWell series, a 36V power supply converts standard household AC power into 36V DC output, typically used for DC 36V longer LED strip runs (36V addressable RGBW, 36V Neon, 36V 2835, 36V 3528) where reduced current and improved voltage stability are required.

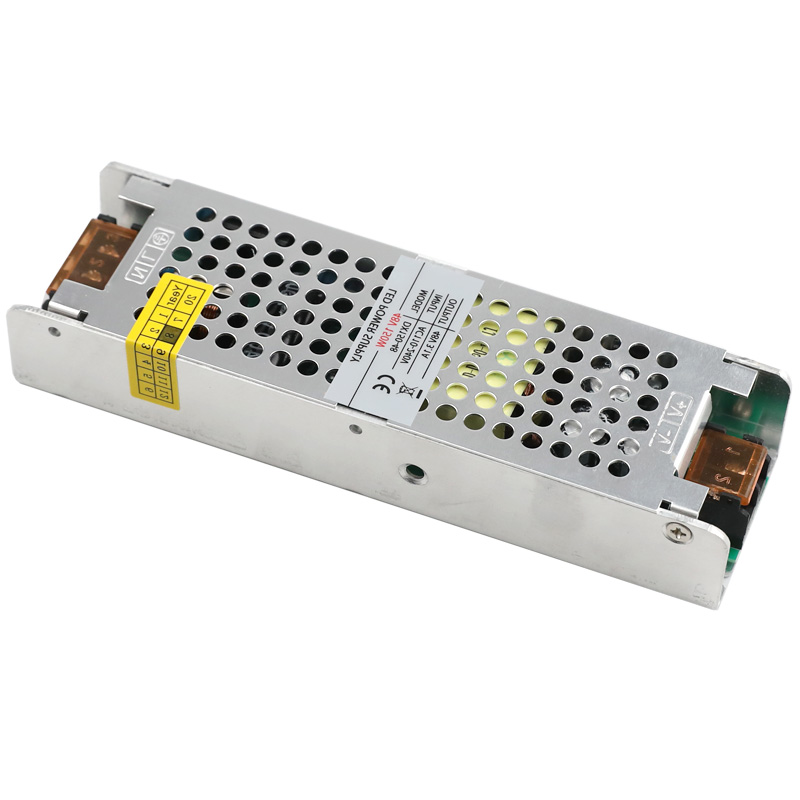

In this MeanWell series, a 48V power supply converts AC mains power into 48V DC output, designed for long-distance, continuous LED strip lighting systems. These 48V power supplies are to connect to DC 48V LED strips for professional residential projects, commercial buildings, and architectural lighting designs.

Yes, most professional LED drivers have a fixed output voltage (e.g., exactly 24V or 48V). Unlike some universal electronics, LED strips are voltage-specific. Connecting a 24V LED strip to a 48V power supply will cause immediate permanent damage, so you must choose a driver that matches your LED strip's rated voltage exactly.

Yes. Standard household wall outlets provide high-voltage AC (typically 110V or 220V), while these 24V, 36V, and 48V LED strips operate on low-voltage DC. An LED transformer (power supply) is required to safely convert and rectify the high-voltage AC into the stable low-voltage DC required by the LEDs.

This depends entirely on your LED strip choice and project scale. 24V is the industry standard for high-output lighting and can typically run up to 10-20 meters without significant voltage drop. 36V is less common but used for specific high-power industrial modules. 48V is the ideal choice for large-scale residential and commercial projects, as it can support ultra-long runs of up to 50-60 meters from a single power feed with minimal brightness loss.

If your LED strip is rated for long-runs (e.g., a 50m roll), simply connect the head wires to the power supply. However, for standard LED strips that experience voltage drop, you should use parallel wiring. Divide the long run into multiple shorter LED segments and run a separate "home run" wire from each segment back to the same high-capacity power supply to ensure uniform brightness.

Absolutely. You must consider the load capacity of the controller just as much as the power supply. If your power supply can handle 300W but your controller is only rated for 144W, the controller will overheat or burn out. Always ensure that the LED controller’s max amperage exceeds the total current draw of the connected LED strips.
