Spec Sheet - FSLQR-IP65-3528X1800

Select Light Color :	Warm White(3000K) (Base), Daylight White(6000K) (Base), Cool White(7000K) (Base), Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm), Natural White(4000K) (Base)
Select Operating Voltage:	12VDC (Base), 24VDC (Base)
Select PCB Width:	20mm (0.79in) (Base)
Select Waterproof Rating:	Surface Glued IP65 - Adhesive Back (Base)
Availability	In Stock
Condition	Brand New

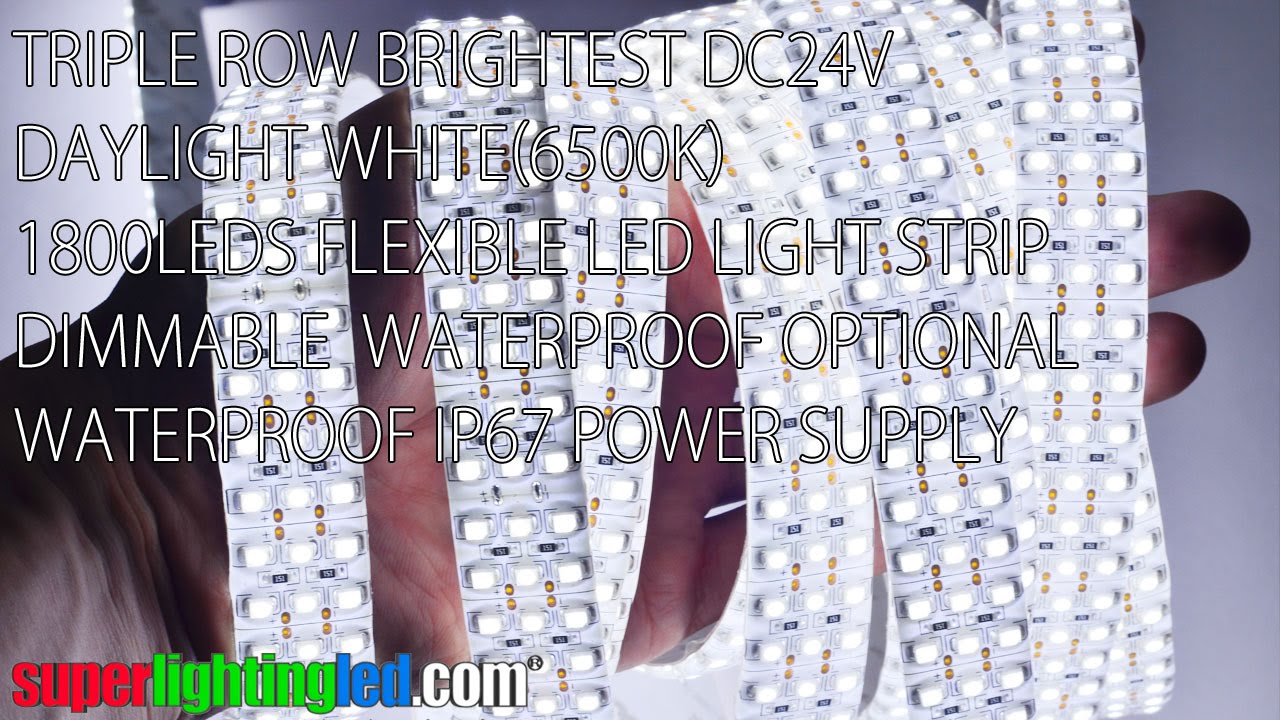

Triple row single color super bright high density 3528 SMD (SMD:Surface Mounted Devices) Waterproof IP65 Flexible LED light strips, Epistar chip, 1800LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP65 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation. Dimmable - Connect LED dimmers.

Standards and Certifications

Product Specification

LED Strip Type: SMD 3528 1800PCS/16.4ft

LED Chip: Epistar Chip

Working Temperature: -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

Dimension: 16.4ft/roll, every 6 PCS LED can be cut

LED Quantity: 1800 LEDs per meter (197 in)

Lifespan: 50,000+hours

Warantty: 3 years

Dimensions: L500cm(196.8 in ) x W2.0cm(0.79 in ) x H0.20cm(0.08 in )

Input Voltage(V): 12/24VDC

Working Power: 6A 144W /16.4ft Max

Lamp Luminous Flux(lm): 7~8lm/LEDs 14400lm/16.4ft

Color Temperature CCT(White): Warm White(2700- 3200k), Daylight White(4500-7000k), Cool White(8500-12000k)

Wavelength NM (RGBY): Red(620-630nm), Green(515-525nm), Blue (465-475nm), Yellow(585-595nm)

Beam Pattern: 120 degree

Water Proof: Waterproof IP65, IP67

CRI (Ra>): 95

Color Temperature And CRI

Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

Consider the look and feel you want your project to have.

What other color lights will be present? What material and color are the materials you wish to light?

LED strip color temperature

CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

CRI led strip

Waterproof Level Description

IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order. led strip waterproof level
