| Select Kit: | LED Strips (Base), LED Strips + Controller + Power Supply, LED Strips + Controller, LED Strips + IP67(Controller + Power Supply) |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | RGB + Daylight White 6000K (Base), RGB + Warm White 3000K (Base), RGB+ Natural white 4000K (Base) |
| Select PCB Width: | 10mm (0.39in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

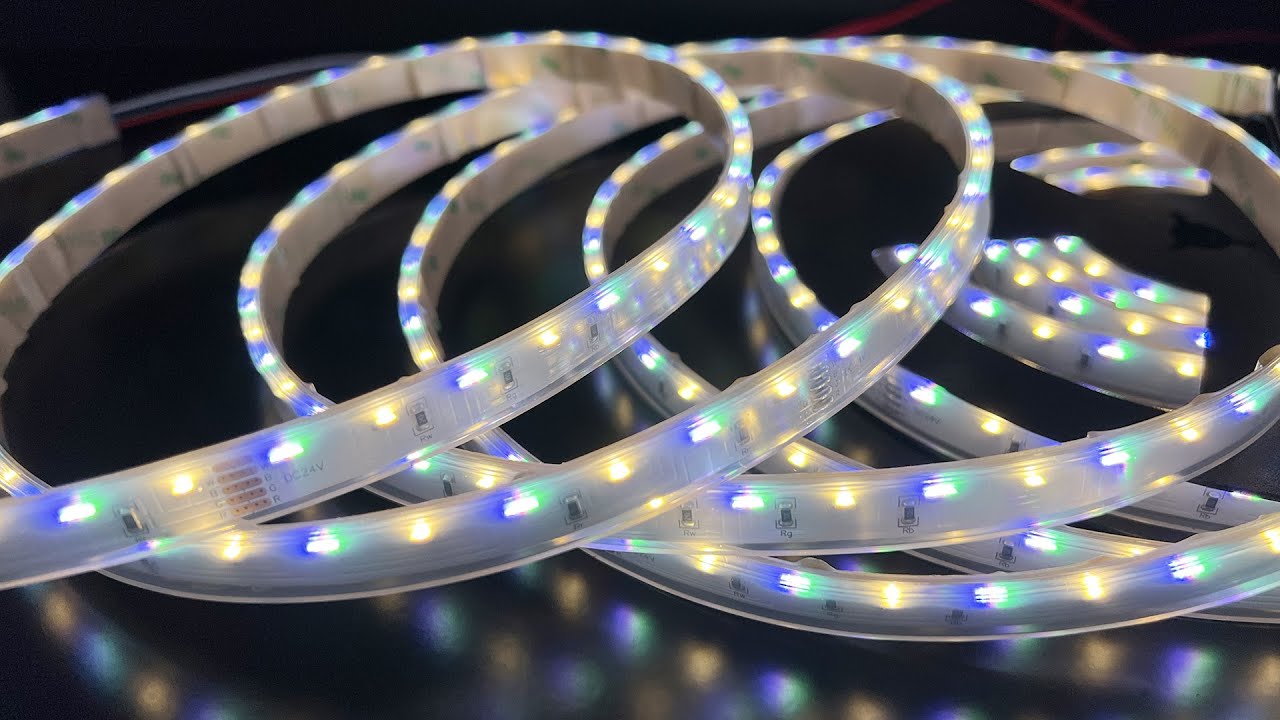

Side emitting RGBW color changing LED lights strips emit light from the side, the light is parallel to the PCB board, making a side projection of the displayed products, suitable for narrow installation positions of light boxes, counters, gaps, borders, contours, etc.
Universal Side emitting RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode.
If you're looking for side-illuminated RGBW led strip for Neopixel project, check out our new SK6812-4020SIDE-RGBW.
DC24V low voltage input, 12 LEDs cuttable, 10mm/0.39in
Side emitting LED
SMD020 RGB LEDs + CRI 90 3014 White LEDs
22LEDs/Ft high-density
RGB+3000K / 4000K / 6000K white light
IP20/67 waterproof rating available
| Non-waterproof RGBW Lighting Kit: | RGBW LED Strip + LRS-100-24 + YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control) |
| Waterproof RGBW Lighting Kit: | RGBW LED Strip + PSWP-24V-100W + WL5-WP(the waterproof version of YL5/WL5 LED controller) |
[ VIDEO: Watch on YouTube ]
Standards and Certifications
| LED Strip Type: | SMD 020+3014 RGBW |
| LED Chip: | Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB+W3000K, RGB+W4000K, RGB+W6000K |
| Dimension: | 16.4ft/roll, every 12 PCS LED / 16.67cm can be cut |
| LED Quantity: | 72 LEDs per 1meter (3.28 ft) |
| Lifespan: | 50,000+hours |
| Strip Width: | 10mm/0.39in |
| Input Voltage(V): | 24 VDC |
| Working Power: | 48W /16.4ft Max |
| Lamp Luminous Flux(lm): | 14-16Lumen 5,000Lm Max /16.4ft 307lm/feet 104lm/watt |
| Wavelength NM(RGBY): | 2000-2500mcd |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Non-waterproof IP20, waterproof IP67 |
| CRI: | 90 |
1. RGBW LED strip wiring diagram:
2. LED light strip accessories: 72 density side emitting RGBW led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
