| Select Connector Type: | JST Fast Connectors (Base), Waterproof Wires (Base), Waterproof Fast Connectors (Base) |
|---|---|
| Select Kit: | LED Strips (Base), LED Strips + Bluetooth Controller + Power Supply, LED Strips + WiFi Controller + Power Supply |
| Select Length: | 3.28ft (1 meter), 16.4ft (5 meters) (Base), 6.56ft (2 meters), 32.8ft (10meter) Roll, 49.2ft (15 meters) Roll, 65.6Ft (20 meters ) Roll |
| Select Plug Type: | US, UK, EU, AU, no (Base) |
| Availability | In Stock |
| Condition | Brand New |
1. WS2811 IC chip control, 10 pixels per meter, can be controlled by a compatible SPI controller to control the color and brightness changes of the LED to achieve a variety of color effects, providing general WS2811 dynamic color tracking, sorting, changing and static color modes. Silicone encapsulated waterproof flexible LED light strip with 300 LED high-power 5050SMD (surface mount device) RGB LEDs, programmable to chase patterns.
2. This programmable light strip is an intelligently controlled LED light source that integrates the control circuit and RGB chips in a package of 5050 components. It contains an intelligent digital port data latch and signal shaping amplifying drive circuit. It also includes a precision internal oscillator and a DC24V voltage programmable constant current control part, which effectively guarantees the consistent light color of the pixels.
3. With high-brightness lamp beads, waterproof grade IP68, used for outdoor LED lighting. It is suitable for some users who need super long IP68 light strips or want to cut their own lengths. 6 LEDs are a cutting unit, these strips are soft and easy to install. Provide adhesive and buckle, double fixation, can be pasted almost anywhere.
4. The default light strip has a welded waterproof connector, if you need a waterproof extension cable, you need to purchase it separately. The length can be customized. If you need to weld, you have to pay the welding fee.
5. No voltage drop at 10 meters. Power supply at both ends is required for 20 meters. Note that the length of 50 meters addressable led strip is not suitable for direct installation, and there is a voltage drop (LED brightness attenuation, color change).
Here is our 50m/164ft no voltage drop new model.
It is best to cut into 3 sections(20m + 20m +10m) for use to prevent the voltage drop so as to make sure that the LED light brightness and color are the same. (20m power supply at both ends, ≤10m power supply at one end)
When there is a voltage drop, the white light of the light strip changes, it begins to turn to yellow, and then turn to red, and finally, the LED lights disappear. Once the white LED light turns yellow, it means that there is a voltage drop, and you must pay attention to this phenomenon. In this case, a seperate power supply is required to power the subsequent LED lights. This is the reason why the 50m addressable LED strip is cut into 3 sections to use.
*Voltage drop of running long LED light strip(the white LED lights turn to red in the end)
How to choose the right addressable LED strip light kit?
1. In this product, you can not only purchase the WS2811 addressable LED strips, but more importantly, you can directly choose the kit of this light strip to help you save time in browsing matching products.
In the options, we have matched the corresponding SPI controllers for you, and provide help for customers who don’t know which LED controller to choose. You only need to choose from these SPI controllers instead of spending a lot of time browsing many LED controller products.
Check the specific product to choose the most suitable controller. (Note: SP107E and SP108E no remote.)
|
►SP107E(Bluetooth SPI Music Spectrum Controller) ►SP108E DIY WiFi Programmable LED Controller |
2. Choose the LED Strip+Controller+Power supply kit, we will deliver a waterproof IP68 WS2811 addressable led light strip, an SPI controller(optional) and a corresponding power supply with an AC plug(type optional) for you. Please refer to the table below for the corresponding power supply.
| Length | LED Driver |
| 1m | 20W power supply adapter |
| 2m | 30W power supply adapter |
| 5m | 100W power supply adapter |
| 10m | 200W LED power supply |
| 20m | 350W LED power supply |
| 50m | 4*200W LED power supply |
3. Related installation accessaries are in addressable LED strip parts and LED light strip general parts. If you have other needs, please check our product categories.
4. If you want to purchase the SPI controller and LED power supply by yourself, choose a suitable transformer and an SPI controller for the WS2811 LED strip.
Standards and Certifications
| LED Strip Type: |
WS2811 IC super brights Chip |
| LED Chip: | SMD 5050 |
| IC Type: | WS2811 (1 IC drives 6 led chip) |
| Pixel Quantity: | 10 pixels/m |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | Dream Color RGB |
| Dimension: | 16.4ft/roll, every 6 PCS LED can be cut |
| LED Quantity: | 60 LEDs per 1meter (3.28 ft) |
| Lifespan: | 50,000+hours |
| Strip Width: | L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.4cm(0.15 in ) |
| Input Voltage(V): | 24 VDC |
| Working Power: | 72W/16.4ft |
| Beam Pattern: | 120 degree |
| Wavelength NM(RGBY): | 2000-2500mcd |
| Waterproof Rating: | Waterproof IP68 (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic gel) |
| Lumen Per LED: | 18Lumen 5400lm Max /16.4ft |
Applications - How to wire addressable led strips?

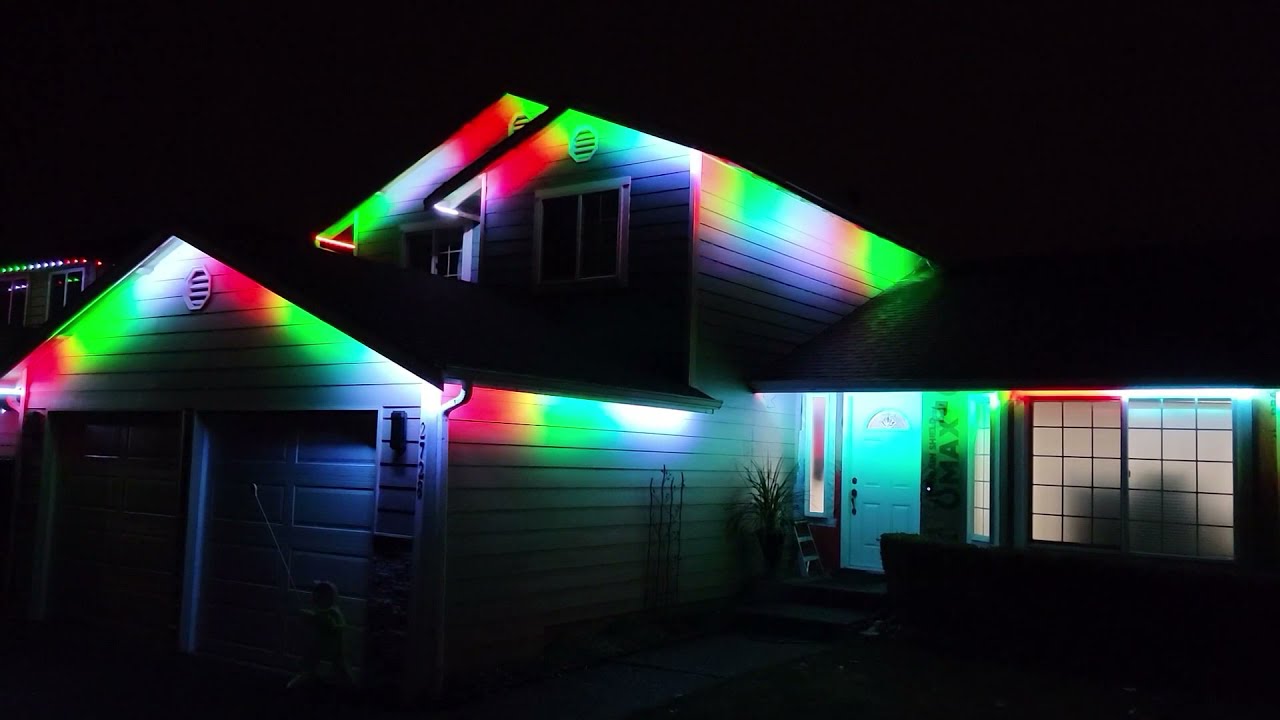

Outdoor LED lighting
Concealed lighting, Architectural decorative lighting
Cove decoration, Deck lighting, Pool lighting
Boutique atmosphere lighting
