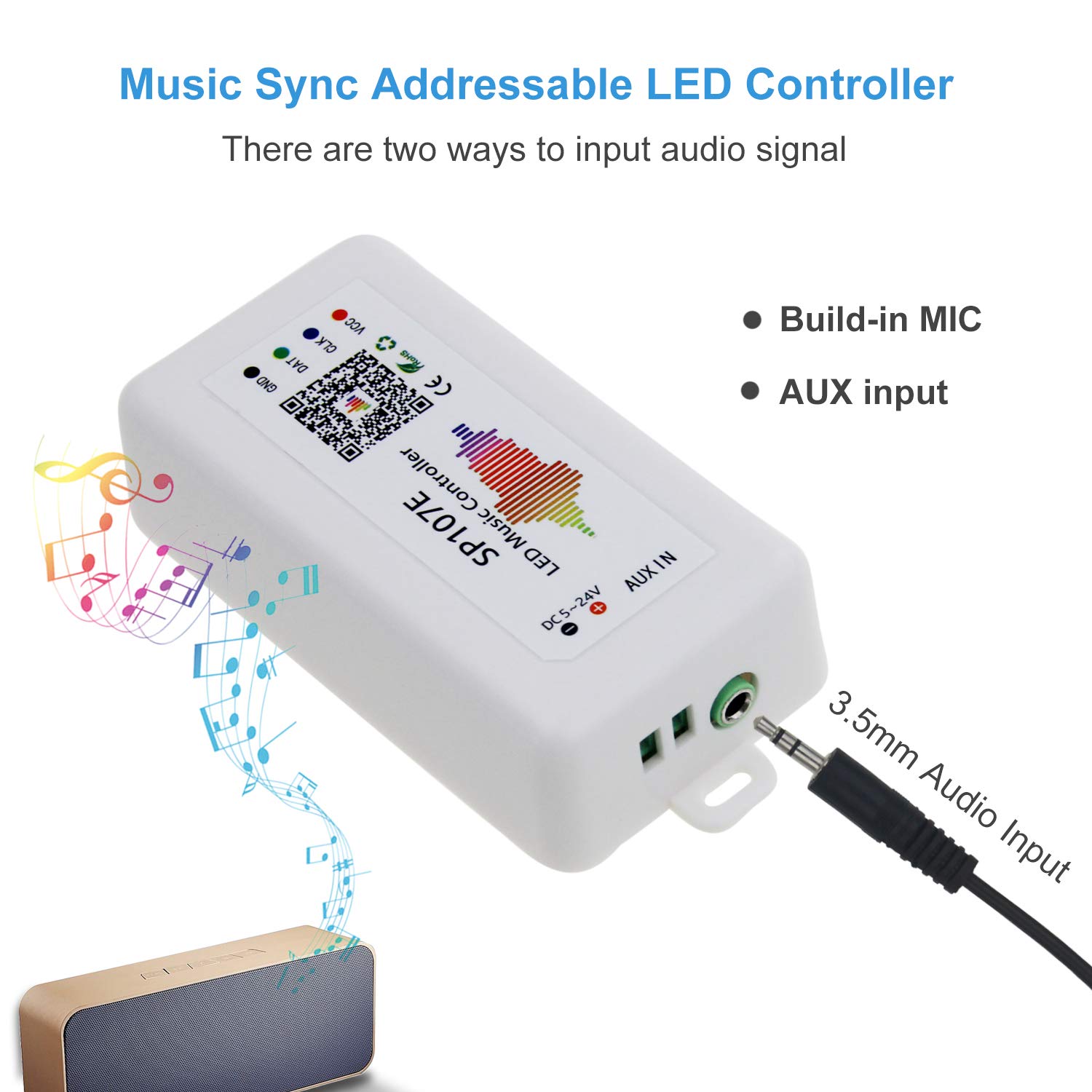

DC5-24V SP107E Wireless Bluetooth SPI Music Spectrum Controller For Addressable WS2812B SK6812 LED Strip Lights
What you need to know about the led strip knowledges

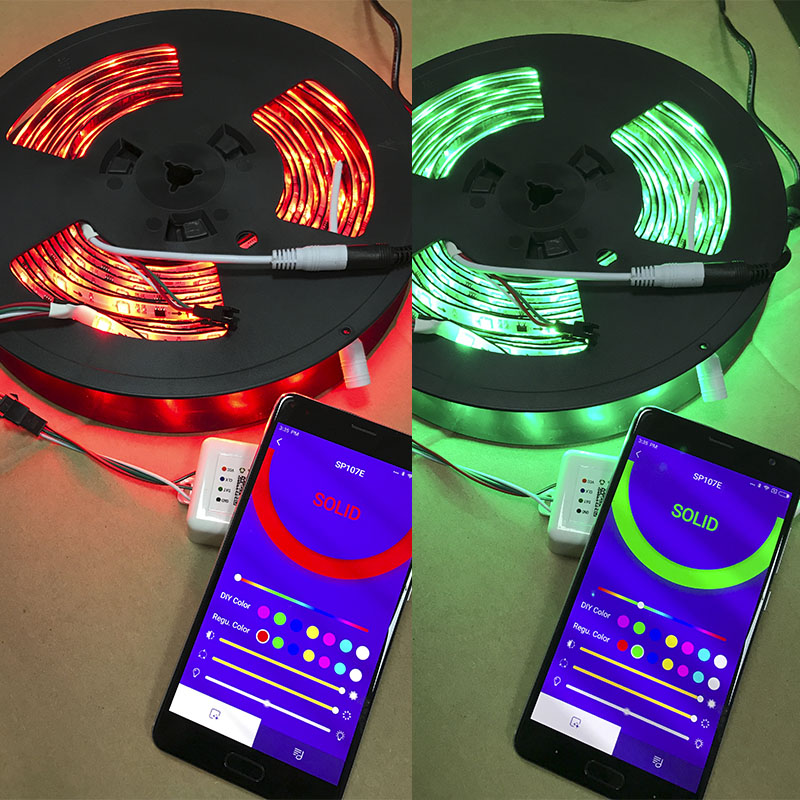

Long distance APP remote control via Bluetooth;
Support almost every kind of one-wire or two-wire LED driver IC ;

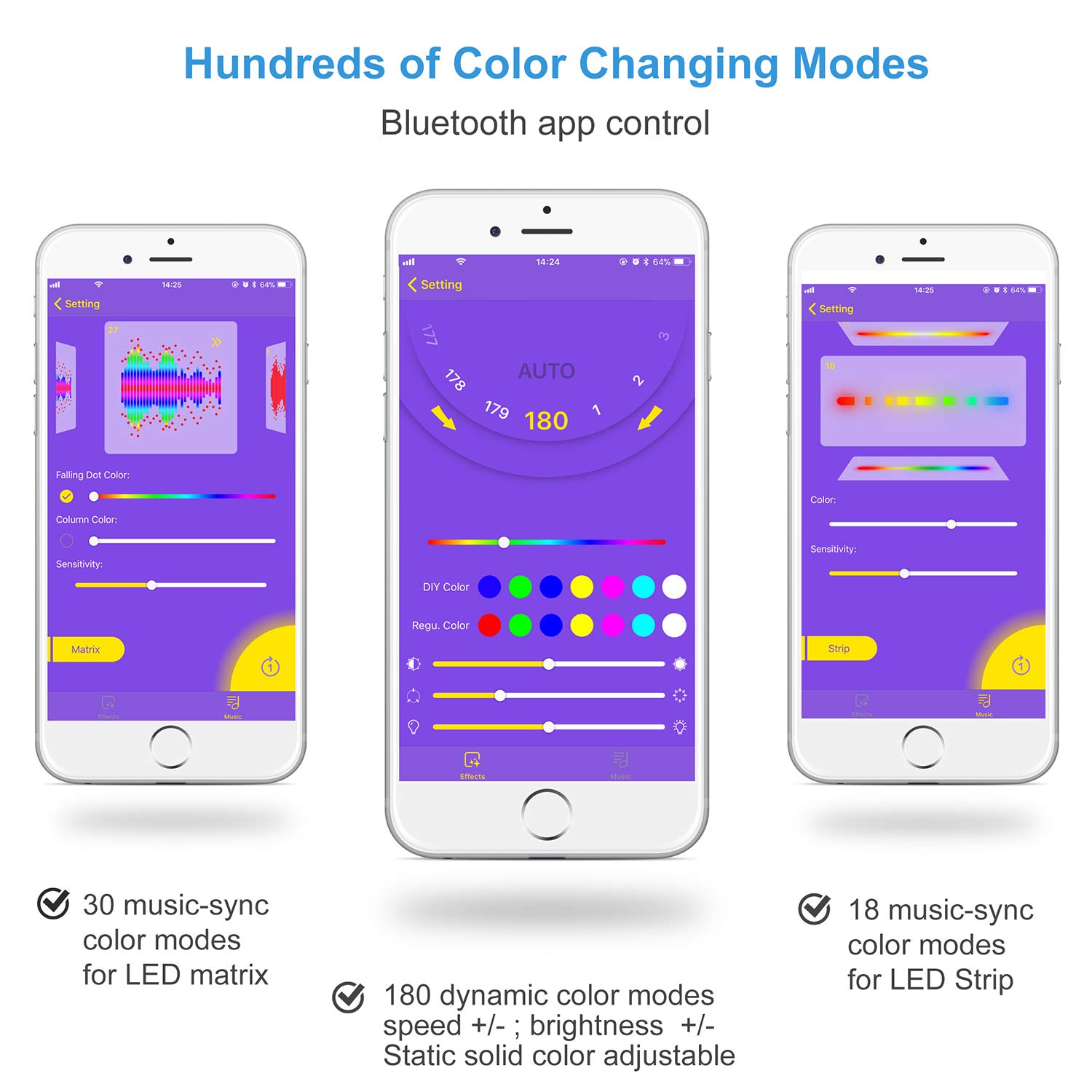

Brightness adjustable, With 180 kinds of patterns and 18 kinds of color adjustable patterns;
Support setting pixel number and segments number, able to control up to 960 pixels;
DC5V~24V wide range working voltage, preventing reverse connection of power supply;
Automatic memory saving function.
Both IOS version and Android OS version
Requires IOS version 10.0 or later;
Requires Android OS version 4.4 or later;
Search”Led Chord” in App Store or Google Play or scan this QR code to download and install the App:
Working temperature: -20~60 Degrees Celsius
Working Voltage: DC5V~24V;
Working Current :20mA~130mA;
Remote distance: 30 Meters;
Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;
Support IC (Support WS2813 WS2815 WS2818 chips)
How to connect the WS2813 WS2815 WS2818 led strip lights

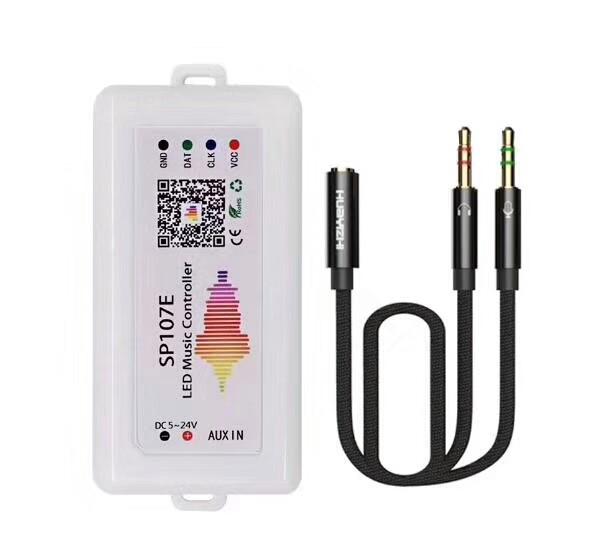

1x SP107E music LED controller
1x User manual
|By : Laki Laksi Date Added: 11/10/2019|
|Dear .Can it be possible to connect WS2815 to SP107E contoler ? Thanks|
