| Select Input Voltage: | DC24V (Base), DC12V (Voltage Drops in White Color) (Base) |
|---|---|
| Select Installation: | Indoor Use (Base), Outdoor Use |
| Select Length: | 3.28ft (1 meter) (Base), 16.4ft (5 meters), 6.56ft (2 meters) |
| Select Mounting Clips: | No (Base), Yes - 2pcs per meter |
| Select Wire Outlet: | Only Input (Base), Input + Output (Base) |
| Availability | In Stock |
| Condition | Brand New |
If you are looking for neon strip lights for your DIY lighting projects, such as to DIY neon signs or light up your windows or other places you want to decorate with led lighting, this RGB neon led strip is a great choice. (the DC12V version has voltage drop in white color over 5m length, if you mind this, please choose the DC24V version)
The features of side emitting and dome top are nice to outline objects and brings enough light. With neon led light strips, you can get an even, spot-free light effect.
The led light emitting diodes are wraped in the soft milky white silicone tube, which is water-resistance. It's more flexible than led light strips, and there is no problem using it in bathrooms or outdoor environments.

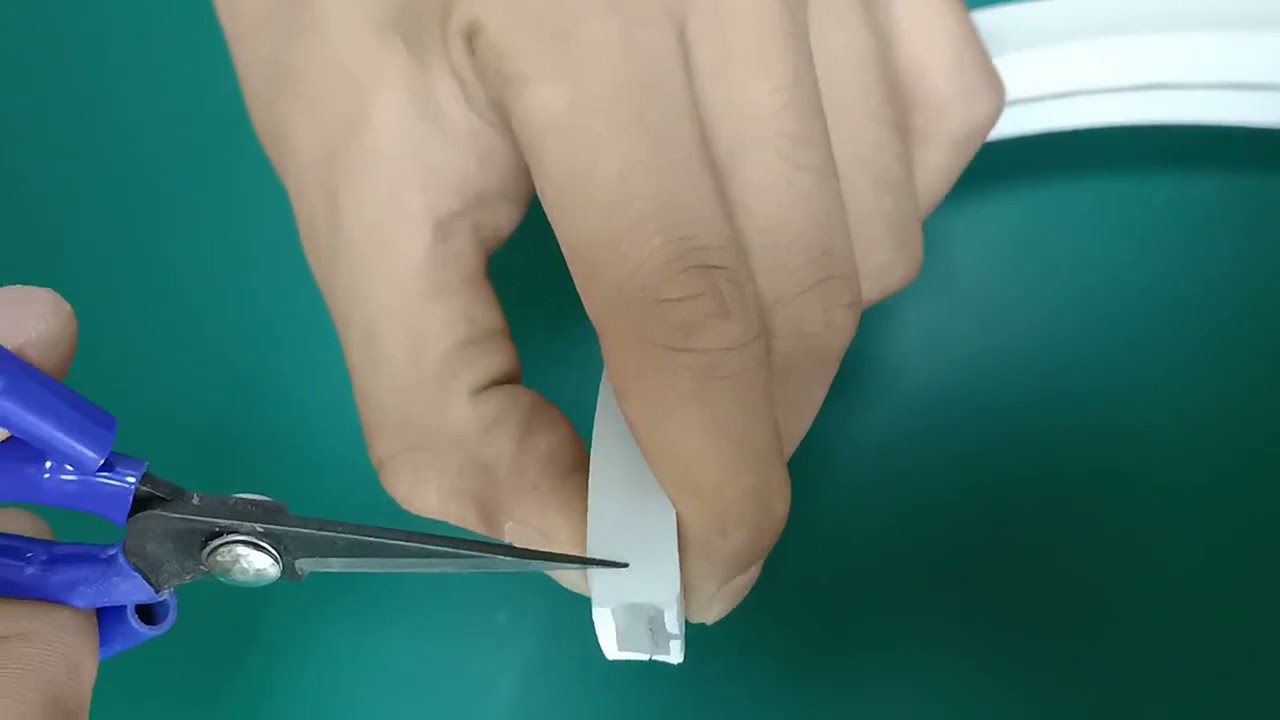

There are 96 LEDs in one meter, and a total of 480 lights in the 16.4ft led strip. Each six led lights are a group to change color and brightness at the same time. Every 62.5mm (2.46") of DC12V and DC24V can be cut.
To control this neon led strip, you need a assressable led controller and a 12V led power supply or 24V power supply.
Standards and Certifications
| LED Strip Type: | Addressable RGB Neon Strip Lights 480LEDs/16.4ft |
| LED Chip: | Epistar Chip |
| Material: | Food-grade Silicone |
| IC Type: |
WS2811 |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB Dream Color |
| Dimension: | 16.4ft/roll, every 62.5mm/2.46in can be cut |
| LED Quantity: | 96 LEDs per meter (3.28 ft) |
|
IC Quantity:
|
16 LEDs per meter, 80 per roll
|
| Size: | 5000mm*12mm*6mm |
| Input Voltage(V): | 12/24 VDC |
| Working Power: | 13W/m, 65W/16.4ft Max |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Waterproof IP67 |
How To Wire Addressable LED Strip Lights?
This neon light strip comes with a JST commector at the end, so you can easy to connect it to the controller. If you need accessories, click here to buy.
WS2811 neon led strip lights wiring diagram:
