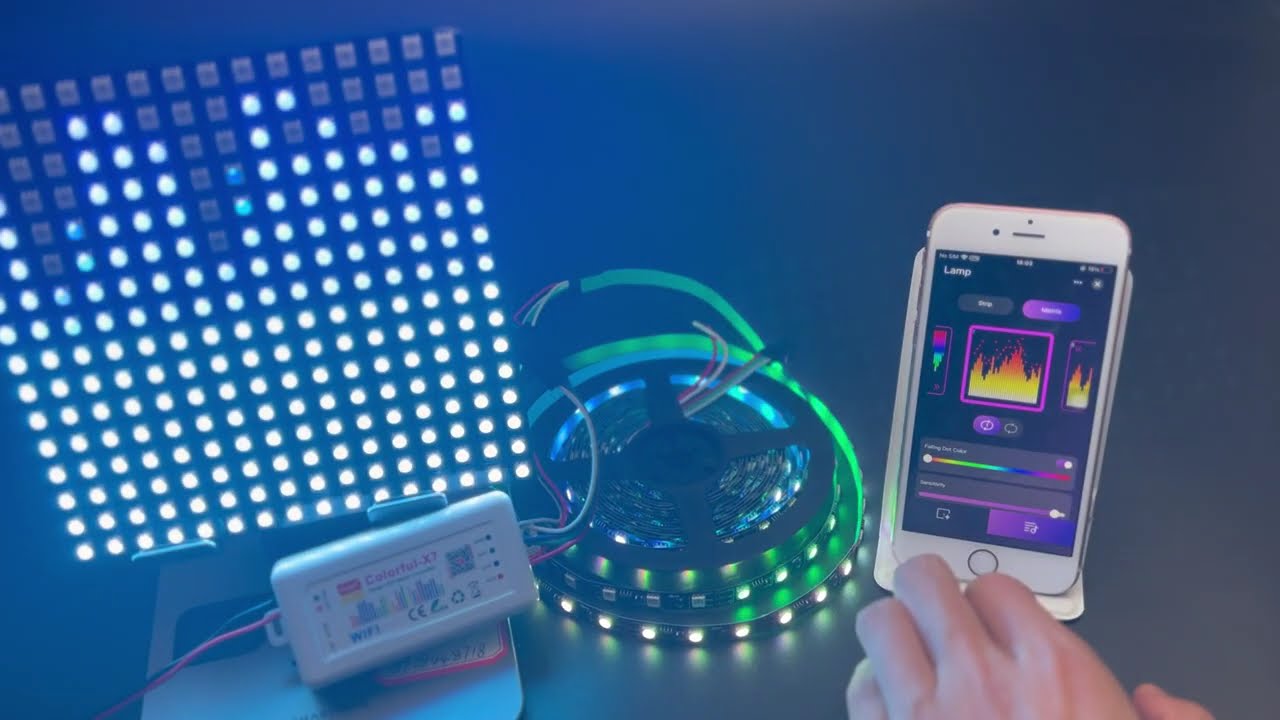

This is a tuya wifi LED controller for controlling addressable RGB LED lighting fixtures, compatible with Tuya app, Amazon Alexa, Google Assistant and other smart systems. Newest X7 RGB IC controller works under 5V to 24V voltage. There is a microphone sensor installed inside the controller, which can sense the music and change LED light with the rhythm. This RGB LED music controller also has a 3.5mm MIC connect terminal that can be used in multi-soundtrack situations to avoid interference from other music.
Our addressable RGB LED small controller can control up to 1024 IC chips and is compatible with a wide range of IC chip types. (Controllable IC models can be found below) At the same time, this controller has OTA online upgrade function. If there is a new chip model, we can update the dream color LED controller program remotely and improve it to match the latest IC model.
The 5-24V LED controller has 30 kinds of large-screen luminous modes, which is suitable for controlling RGB LED sheet lights or LED display screens. It also has 180 dynamic effects and 22 music modes, perfect for controlling RGB IC light strips.
1.Smart wifi LED controller for addressable RGB lights, can work with Tuya app, Amazon Alexa, and Google Assistant.
2.With a microphone sensor installed inside, able to change LED light with the rhythm.
3.Supports OTA (Over-The-Air) online upgrades, ensuring your product stays up to date with the latest IC iterations.
4.Built-in extensive modes: 180 dynamic lighting effects, 22 music modes, and 30 light screen musical pattern effects.
5.Supports control of light screen panels, with the ability to control up to 1024 IC chips and offering simple layout operation.
6.Compatible with multiple IC chips, and the RGB channel sequence is adjustable within the app (IC support is optional).
7.Accepts a DC5~24V voltage input, and the power supply includes an anti-reverse connection function.
8.It has the capability to save setting parameters after a power failure.
SM16703, TM1804, UCS1903, WS2811, WS2801, SK6812,
LPD6803, LPD8806, APA102, APA105, DMX512, TM1914,
TM1913, P9813, INK1003, P943S, P9411, P9413, P9414, P9412
TX1812, TX1813, GS8206, GS8208, SK9822, TM1814 etc.
NOT compatible with any RGBW and RGBCCT IC chips.
Colorful X7 Manual
Product Specification
| Product Name: | Colorful X7 Mini Smart Wifi Addressable RGB LED Music Controller |
| APP: | Tuya APP |
| Input Voltage: | DC5-24V |
| Output: | SPI Signal |
| Pixel Quantity Supported: | 1024 Pixels |
| Audio Input 2 Options: | Aux Cable, Build-in Mic |
| Wireless Protocol: | WiFi |
| Mobile System: | Andriod 4.4/ IOS 10.0 or higher |
| Dimensions: | 85*45*22 mm |
| Working Temperature: | -10℃ ~ 60℃ |
| IP rating: | IP20 |
