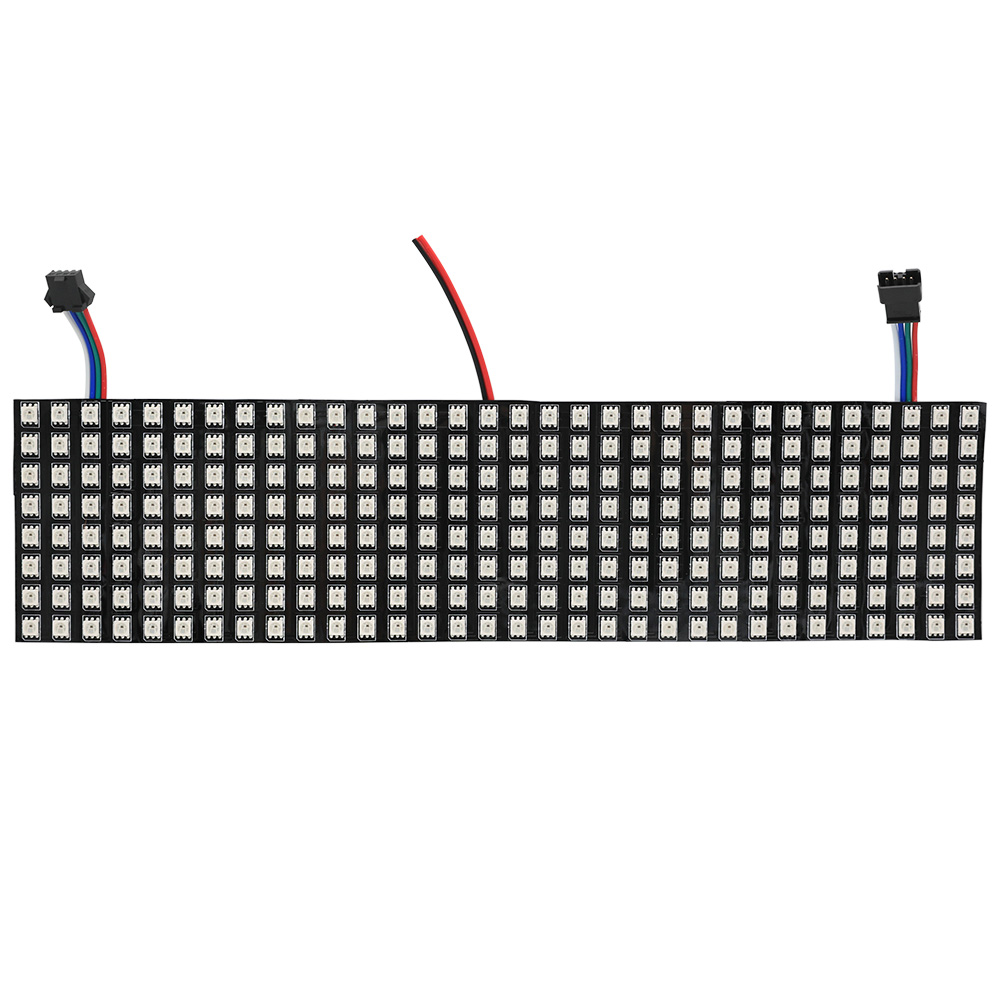

WS2815 RGB 32x8 LED Matrix Display Flexible LED Light Panels

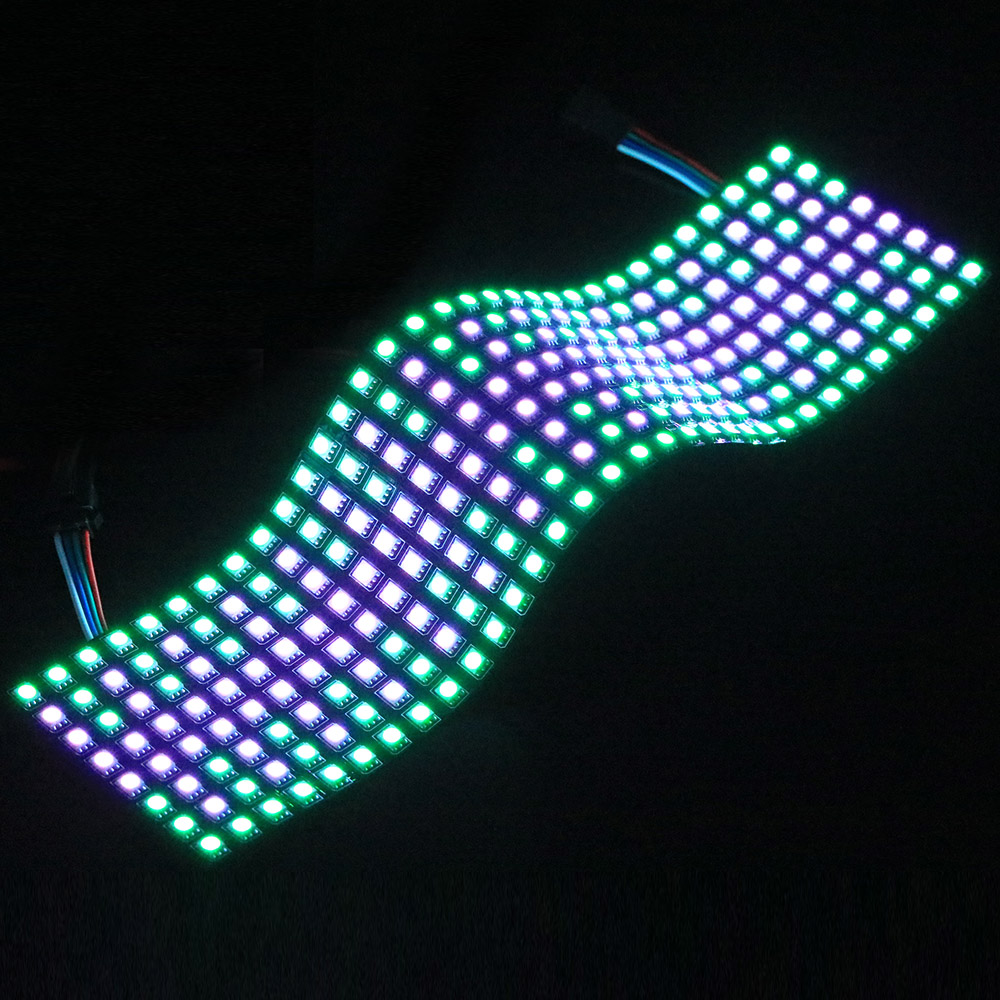

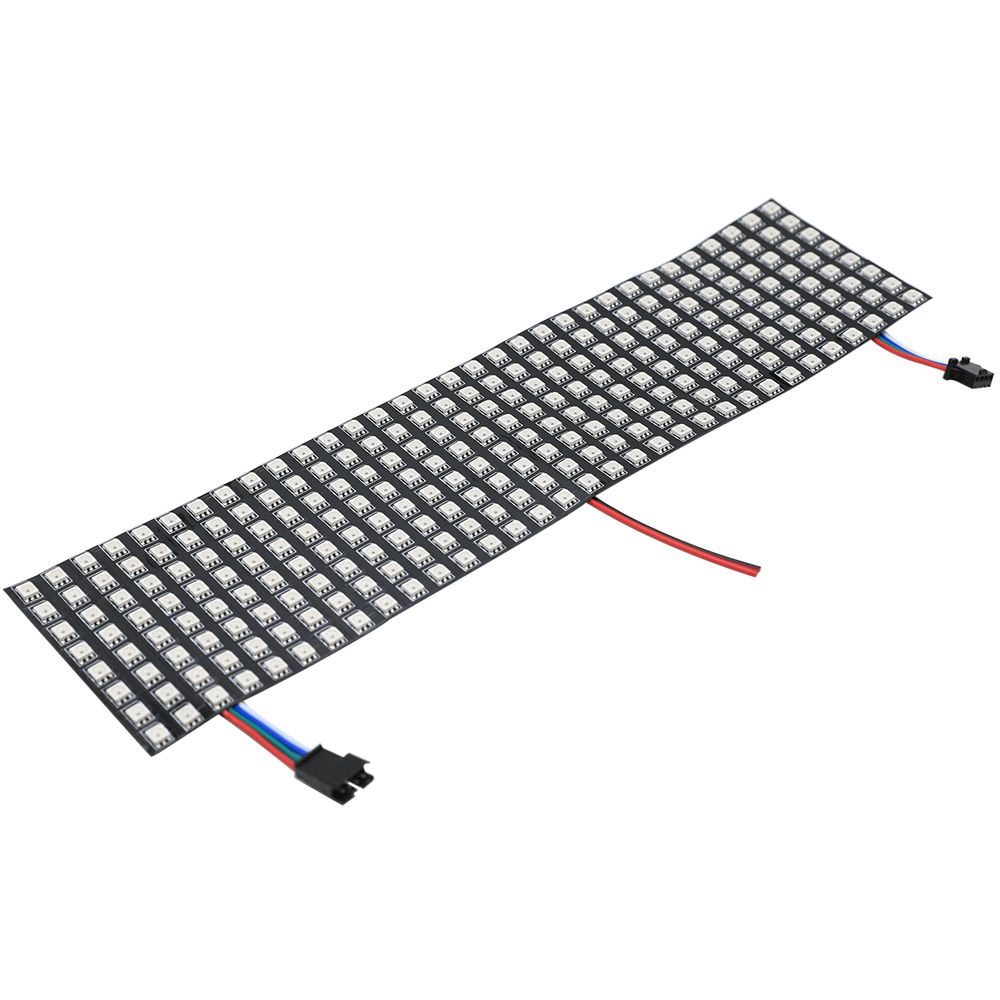

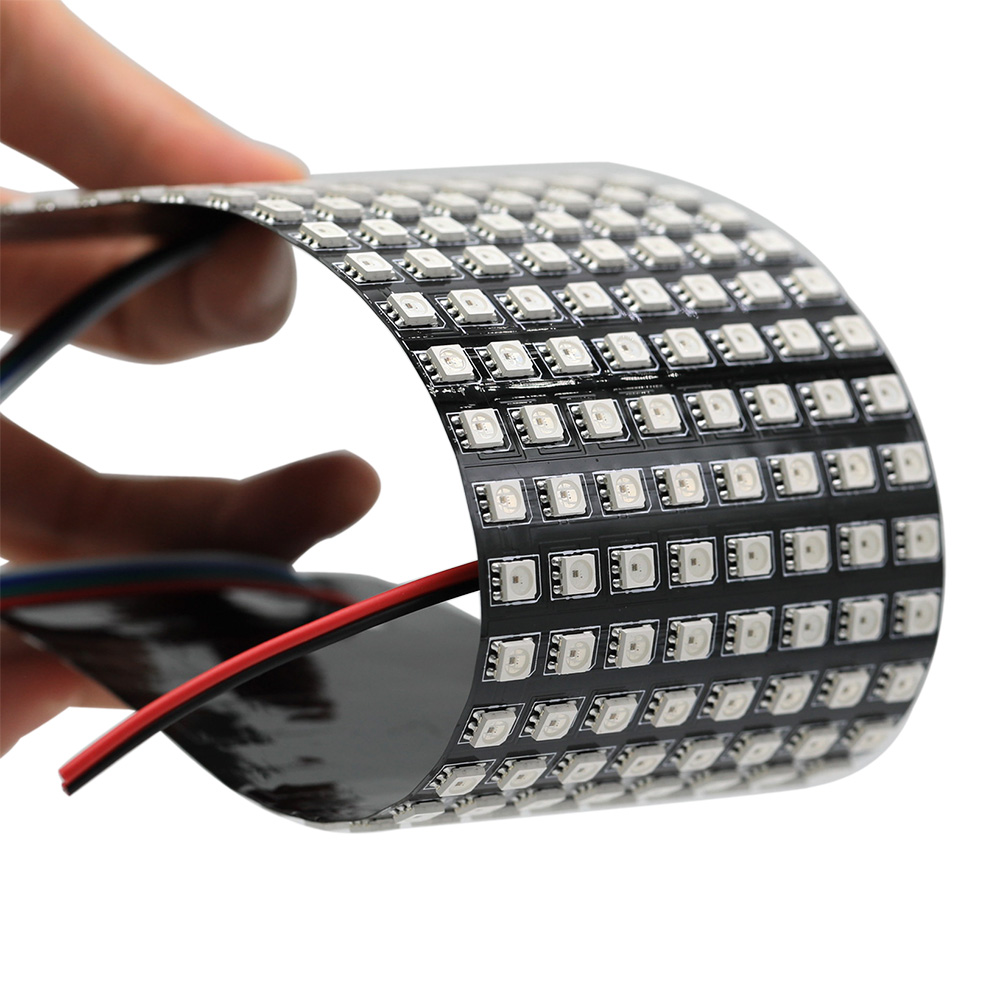

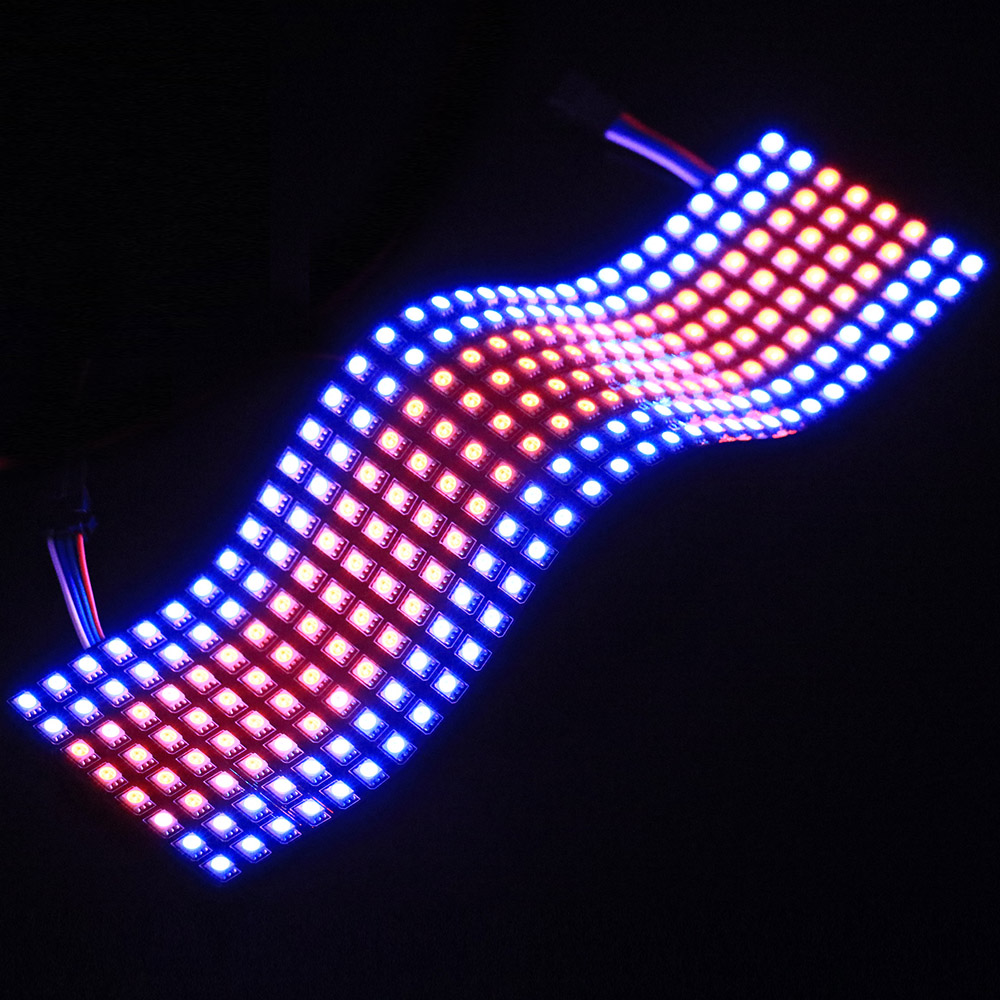

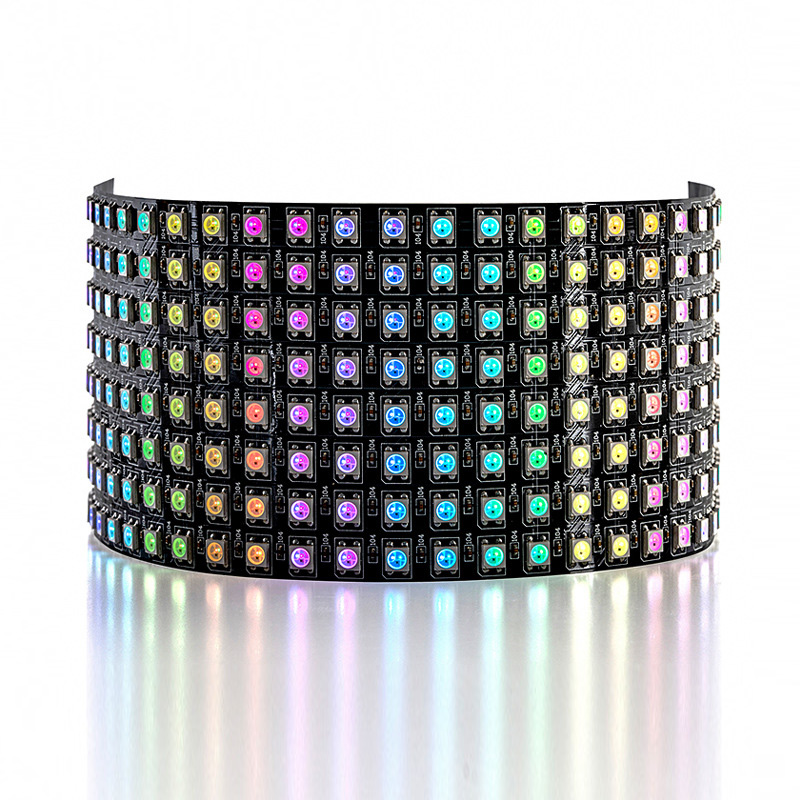

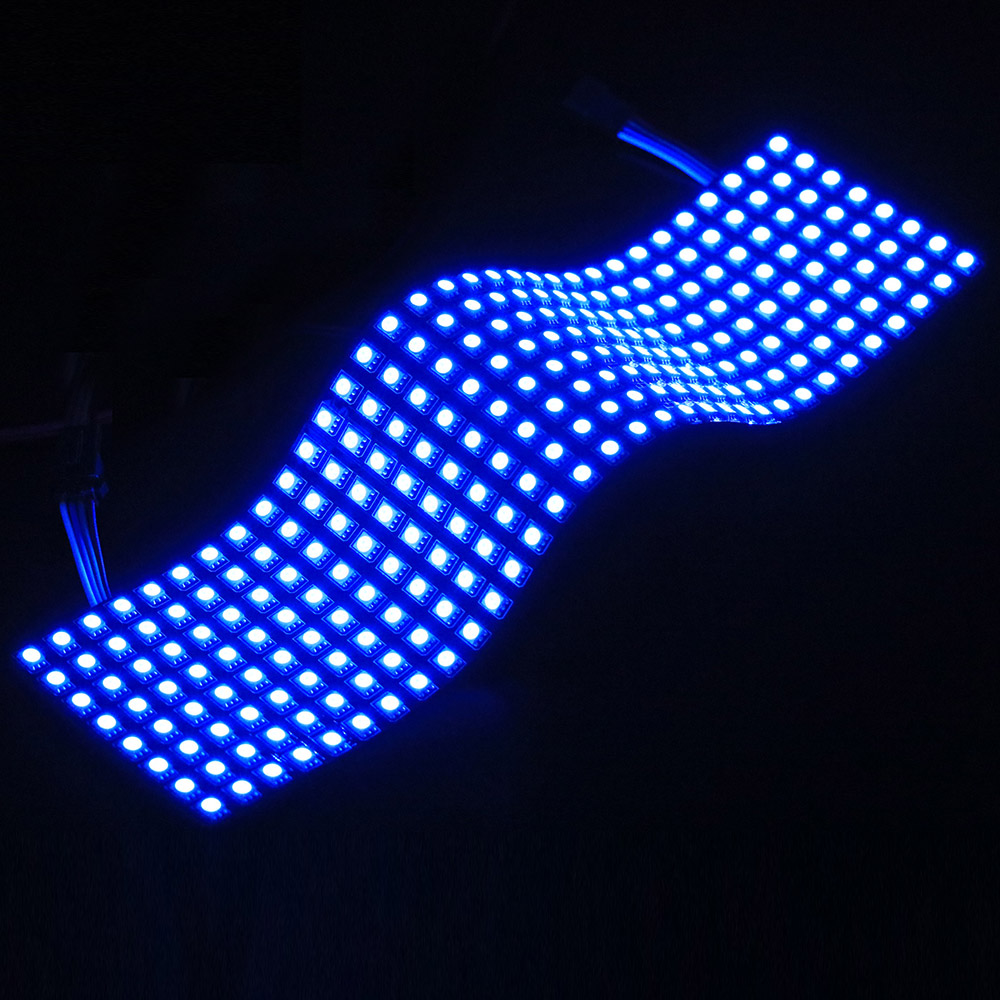

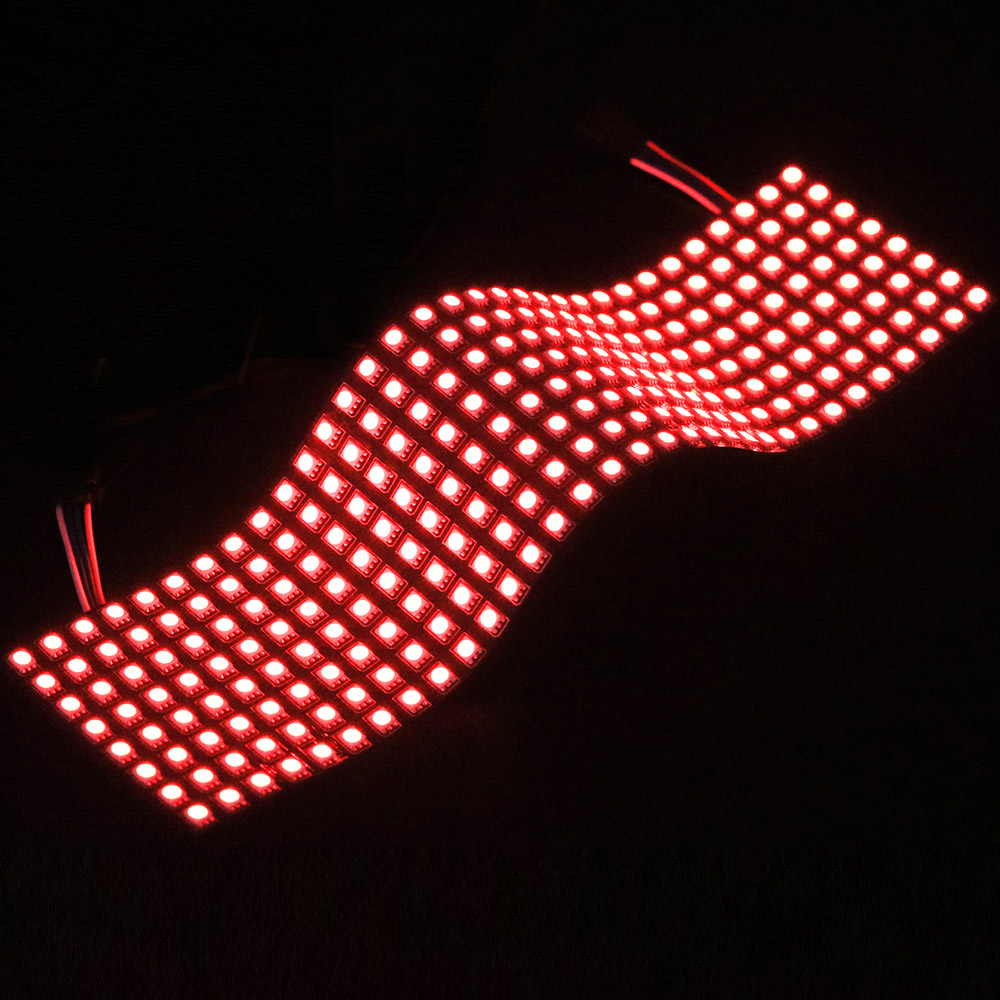

Check this 32x8 flex led matrix programmable screen panel with WS2815 IC built in the SMD5050 LED, good color consistency. Low voltage DC12V drive, has less voltage drop than DC5V, suitable for pixel LEDs to long distance running. Each 5050 RGB LED is addressable. Dual signal (Data and backup data) transmission, a single LED is damaged and will not affect other RGB LEDs to work. Can display multi-color RGB LED light, appear with hundreds of colorful light effect and animation effect, the flexible PCB led panel can be gently bent and flexible application to uneven surfaces.Comes with JST male and female fast led connectors (one for input, and one for output) and power lines, plaese pay attention to the direction of data flow when you use the matrix led panel light. This WS2815 RGB led dot matrix display light panel is available in Arduino, Adafruit, Raspberry Pi, FastLED, T-1000S, K-1000C, and other WS2815 controllers. Work with 12V LED power supply.
Wide applications: making led screen, led wall light, advertising light. Apply to hotel, KTV, bars, advertisement decoration, city lighting projects, entertainment lighting.
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Screen
IC type: WS2815
LED quantity: 256 5050 SMDs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

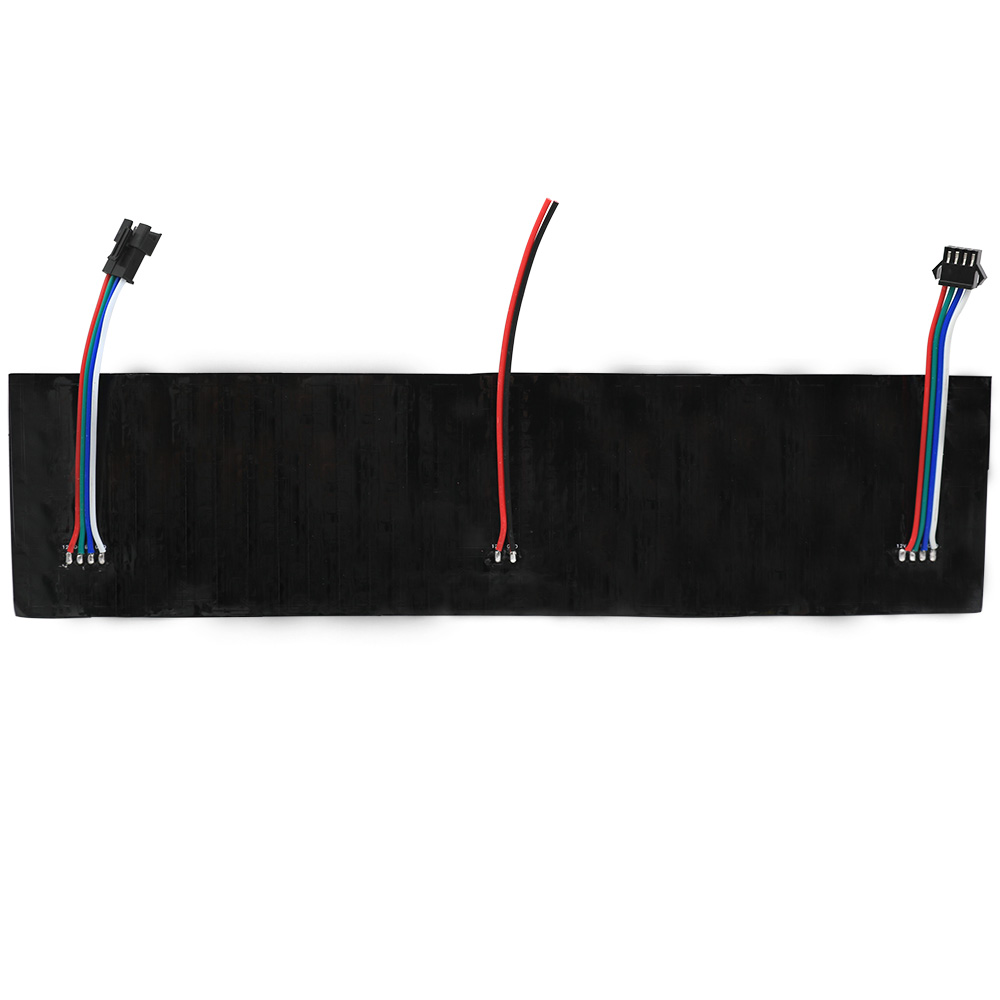

Red Wire: 12V Positive / V+
Black Wire: 12V GND / V-
White wire: GND V-
Green wire: Data
Blue wire: Backup
Dimensions: L320mm(12.6'') x W80mm(3.15'') x H5mm(0.2")
Input Voltage(V): DC12V
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Beam Pattern: 120 degree
MCD Per Foot: 6500 mcd/ft
