| Select Kit: | LED Strips + Controller + Power Supply, LED Strips + Power Supply, LED Strip (Base) |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Power: | 0.2W/LED (Base), 0.5W/LED |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

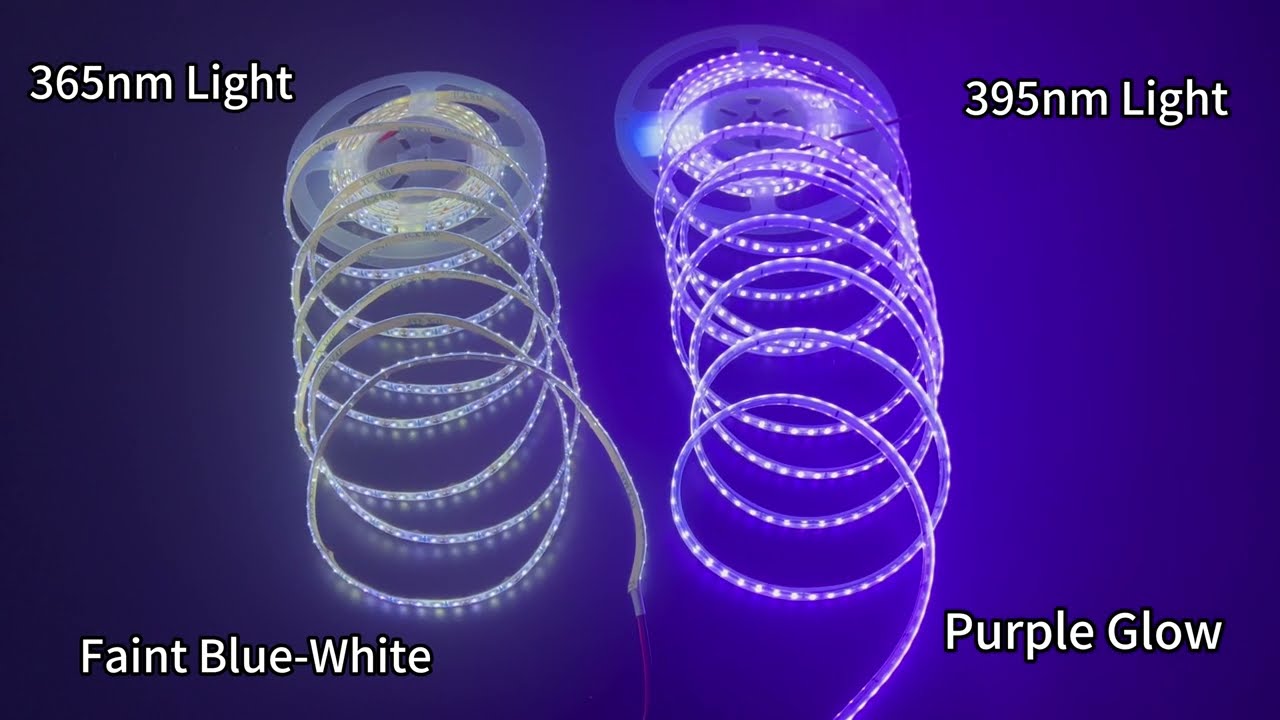

Upgraded 12V UV LED strip precisely emits ultraviolet light within a 365nm to 370nm wavelength range, making it ideal for fluorescence testing, laboratory experiments, and glue or resin curing. This LED UV light strip is made of high quality-UV LED chips while ensuring that the encapsulation technology has good UV transmittance properties. The 365nm light appears bluish-white, totally different from 395nm.
UV LED strip 365nm, featuring a flexible board, can fit more closely to the curved arc surface, providing a more even 365nm UV illumination. The density is high, with 120 lights per meter and 600 lights on a roll. Each 3 lights can be cut individually with scissors, without affecting the original luminous effect. Customizing the length is very easy.
Both ends of the UV curing LED strip have red and black bare wires, and you can use 2pin wire-to-wire extension connector for connection. But please design the power distribution layout reasonably to avoid voltage drop problem.
This true UV LED strip has an adhesive backing, very easy to install. If you want to use it in wet environment, you can choose IP65 outdoor waterproof. For IP65 waterproof UV LED strip lights, the surface of the strip is coated with a transparent silicone layer, which is drip and splash-proof and dust-proof.

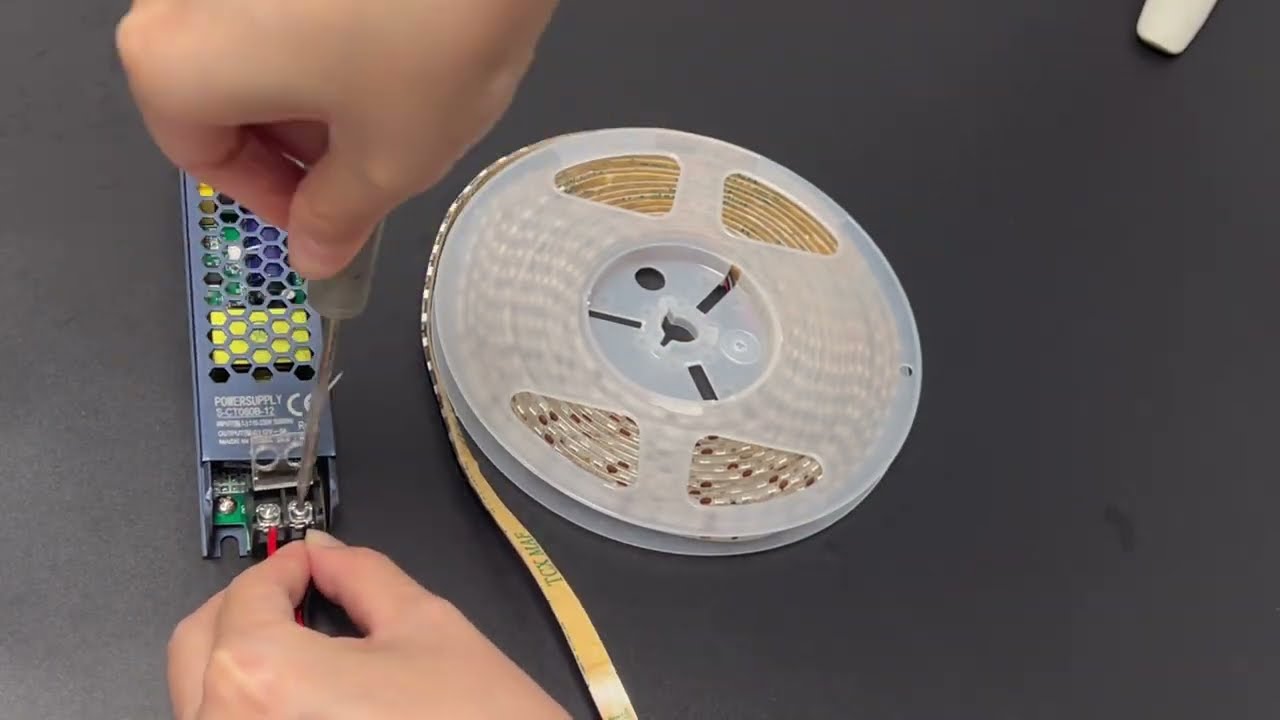

Operating at 12V voltage, you will need an additional 12V transformer to power it. If you want to regulate the UV intensity and control the speed at which the glue cures, consider using a dimmer. If select kit, you will receive LRS-150-12 power supply, a V1-B controller and a R6 remote control.
|
0.2W/LED vs 0.5W/LED: Although this 365nm light strip uses 0.2W and 0.5W UV LED beads, the total power of the 5-meter led tape is not simply 0.2W / 0.5W multiplied by the number of LEDs. Due to resistance limitations and the inevitable voltage drop in LED series connections, the actual power of the entire 365nm UV light strip is between 30W and 60W (single-sided power input). Color Variation in 0.2W/LED: Since the 2835 365nm LED chips are categorized based on 60mA current ratings, the light color emitted by all chips on a single strip may not be entirely consistent, so we suggest you to purchase the 0.5W/LED type. |
1.Reliable UV light source (365nm to 370nm), available in IP20 non-waterproof and IP65 splash-proof.
2.High density of 120 LEDs per meter, 600 LEDs per roll. (5m/16.4ft)
3.Each set of 3 LEDs can be cut with scissors to adjust the length.
4.Flexible and bendable, conform easily to curved surface for more uniform UV illumination.
5.Strong adhesive backing for quick and lasting installation.
6.Applications: fluorescence testing, currency verification, curing glue and resins, nail curing, mineral hunting, artifact restoration, photo polymerization, research applications, medical applications.
Product Specifications
| LED Strip Type: | High Density Flexible True 365nm UV LED Cuttable Light Strips |
| Input Voltage: | DC12V |
|
Working Power:
|
0.2/0.5W LED, 30-60W per roll Max
|
| Light Color: | Bluish White |
| Wavelength NM: | 365nm-370nm |
| Strip Length: | 16.4ft (5m) |
| LED Quantity: | 120 LEDs per meter, 600 LEDs per roll |
| Lifespan: | 50,000+hours |
| Dimensions: | 8mm width |
| Cut: | 3 LEDs set / 25mm / 0.98in |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Non-Waterproof IP20, Splash-proof IP65, outdoor IP67 IP68 |
Note: Please avoid direct eye contact or long time skin contact during UV LED operation. For prolonged use of this 365nm UV LED strip, it is recommended to wear protective eyewear and gloves to ensure safety.
