DC12V 5050SMD 395-405nm UV (Ultraviolet) LED Strips White/Black PCB Flexible LED Tape Light
1. The Ultraviolet light LED strips are popular in Medical, Currency Validation, Sterilization, UV Curing, Dental Curing and Teeth, UV Mosquito killer lamp, and also suitable for black art light, night clubs, DJ events, Halloween lighting.
2. The UV LED lights are made by 300pcs high bright 5050SMD LED chip, supply for different LED lighting projects.
3. With adhesive 3M backing tape( IP20 and IP65), flexible LED tape lights, you can install the place you want and bend the strip into the angle you need, easy and convenient to install.
4. Available in White and Black PCB color, meets your demands for various LED lighting environment.
5. Low voltage DC12V, every 3 LEDs can be cut. You are able to get the length you need, 5m/16.4ft per roll.
Standards and Certifications
LED Strip Type: SMD 5050 300PCS/16.4ft
LED Chip: Epistar Chip
Input Voltage(V): 12V DC
Working Power: 6A 72W /16.4ft Max
Light Color: Ultraviolet / Purple
Wavelength NM(RGBY): UV(395-405nm)
PCB color: White / Black color
Dimension: 16.4ft/roll, every 3 pcs LEDs/1.97in can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Lamp Luminous Flux(lm): 22~24lm/LEDs 7200lm/16.4ft
Beam Pattern: 120 degree
WaterProof: Non-Waterproof IP20, Waterproof IP65, IP67 optional
Package include: 1 x UV LED strips ( 5m/16.4ft )
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

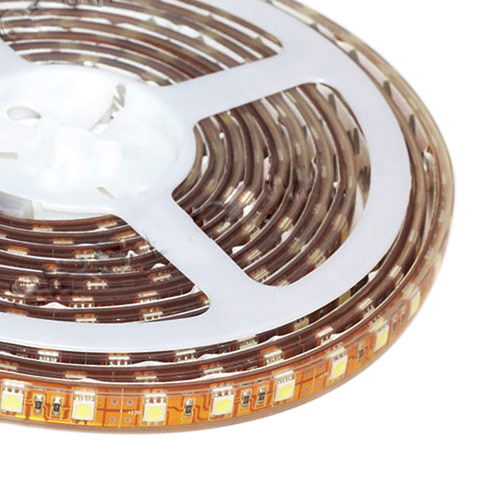

IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Application - Guide To Know LED UV Light Strip And UV Light Fixtures
UV Curing UV Exposure
UV Printing UV Mosquito killer lamp
Currency Validation Stage decoration lighting
Air Purification Dental Curing and Teeth Whitening
Sterilization and Medical Industrial Curing
Halloween lighting Christmas lighting
