| Select Input Voltage: | DC24V (Base) |
|---|---|
| Select Length: | 3.28ft (1 meter) (Base), 16.4ft (5 meters), 6.56ft (2 meters) |
| Select Light Color : | RGB + Daylight White 6000K (Base), RGB + Warm White 3000K (Base) |
| Select PCB Width: | 28mm (1.1in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back, Outdoor Silicone Tube IP67 - Adhesive Back, Underwater IP68 - With Brackets |
| Availability | In Stock |
| Condition | Brand New |
Brightest wide RGBW led strip color changing, If you are looking for color changing lights and high light brightness at the same time, this quad-row RGBW led strip is the most suitable. It consists of a row of red LEDs, a row of green LEDs, a row of blue LEDs, and a row of white LEDs, with 480 lights per meter, high density, mixed to produce multiple colors, suitable for ambient lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode.
|
1. Super Bright 3528 SMD LED, low power, brilliant light output. 2. RGB+3000K warm white, or RGB+6000K pure white optional. 3. 24VDC operation, safe and stable. 4. 1m, 2m, and 5m strip lengths, can be cut into 24-LED segments, so you could get a different length for your project and request. 5. Soft and easy bent for installation. With adhesive backing (IP20) and can be stuck just about anywhere (IP67/IP68 waterproof led lights type which will come with mounting brackets). |

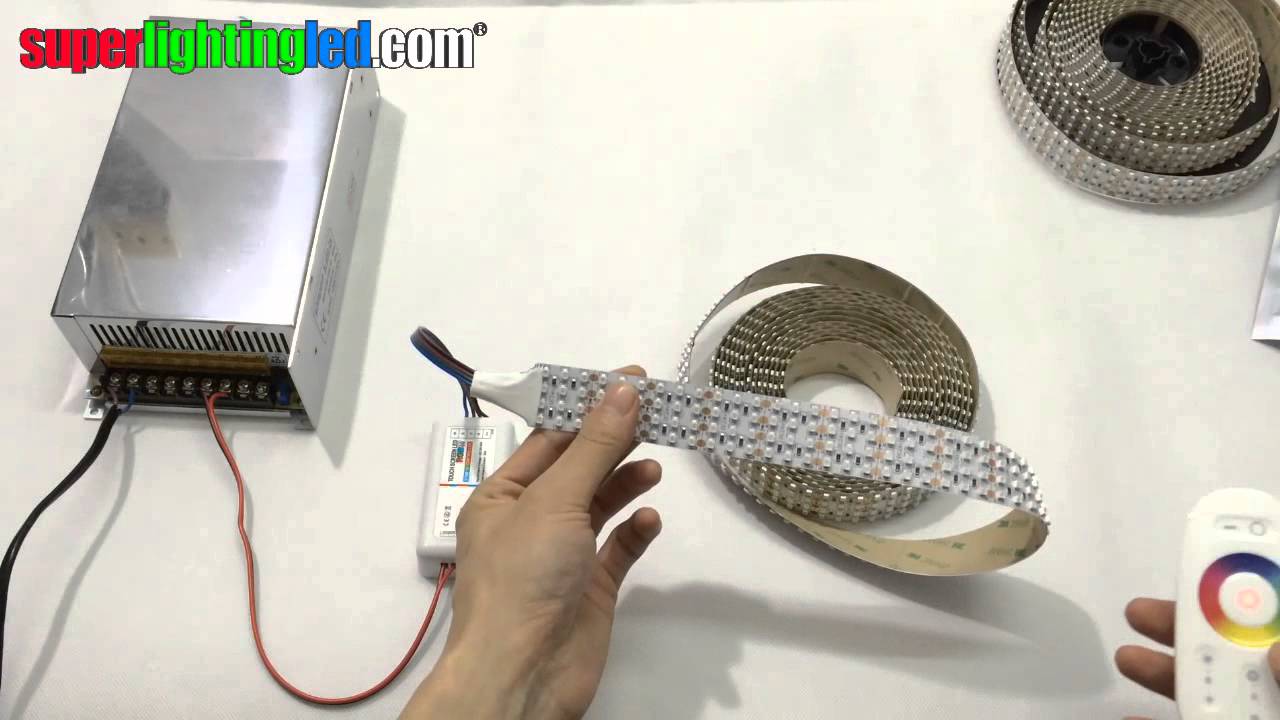

[ VIDEO: Watch on YouTube ]
Standards and Certifications
| LED Strip Type: | SMD 3528 RGBW 2400LEDs/16.4ft |
| LED Chip: | Super Bright Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB+W3000K, RGB+W6000K |
| Dimension: | 3.28ft default, 16.4ft/roll, every 24 PCS LED can be cut |
| LED Quantity: | 480 LEDs per 1meter (3.28 ft) |
| Lifespan: | 50,000+hours |
| Dimensions: | L500cm(196.8 in ) x W2.8cm(1.1 in ) x H0.25cm(0.10 in ) |
| Input Voltage(V): | 24 VDC |
| Working Power: | 38.4W/m, 192W /16.4ft Max |
| Lamp Luminous Flux(lm): | 6-7 lm/LEDs 16800lm Max /16.4ft 1024lm/feet 87.5lm/watt |
| Wavelength NM(RGBY): | 2000-2500mcd |
| Beam Pattern: | 120 degree |
| Waterproof: | Non-waterproof IP20, waterproof IP67 IP68 |
| CRI: | 95 |
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED Light Strip Accessories
Aluminum channel is a good tool to dissipate LED heat, ideal for installing high-power led strip lights, and the LED channel creates a softer, uniform linear light for the LED point light.
Applications
Back lighting
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
