| Select Kit: | LED Strips (Base), LED Strips + Controller, LED Strips + Controller + Power Adapter, LED Strips + Power Adapter |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | Warm White(3000K) (Base), Daylight White(6000K) (Base), Natural White(4000K) (Base) |
| Select Operating Voltage: | 12VDC, 24VDC (Base) |
| Select PCB Width: | 8mm (0.31in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

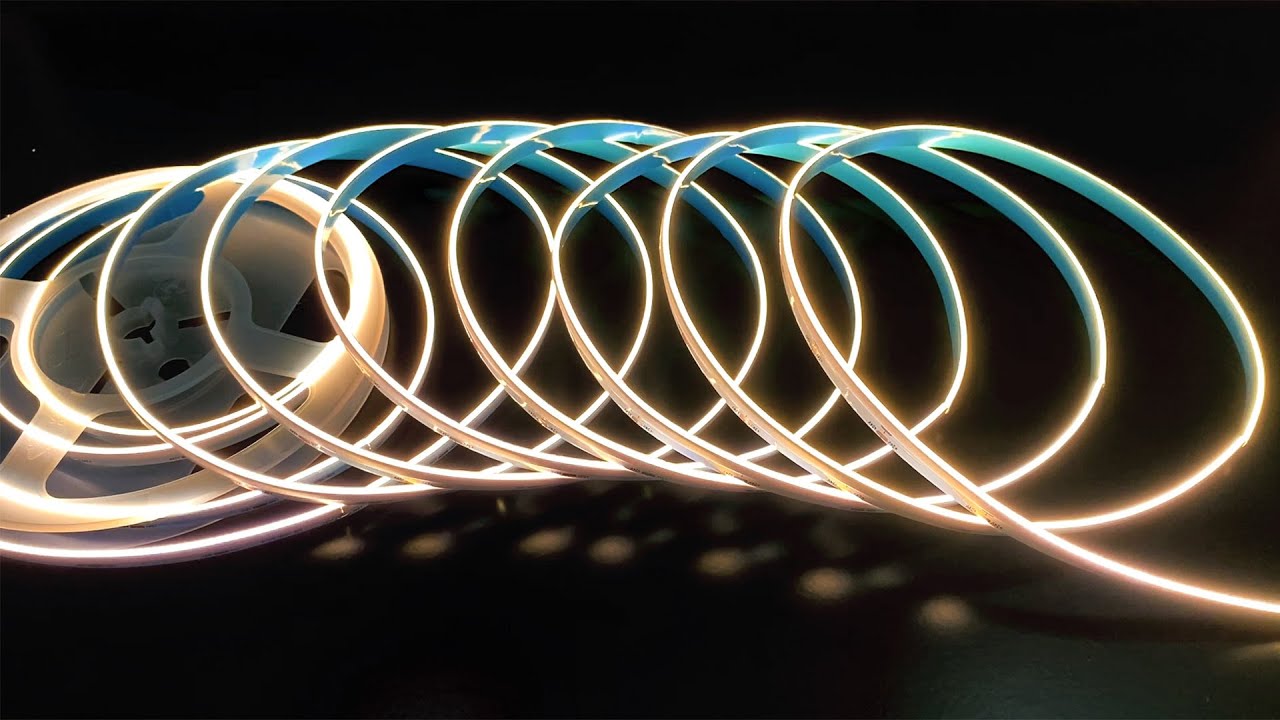

The COB (chip on board) led strip adopts high-quality SMD1021 chips to achieve 8mm/0.31in narrow PCB width, long service life.
Unique side-emitting ensures the light perception of the LED light strip and has a wider applicability. Plastic surface of the light strip is smooth and beautiful, which is conducive to the effective diffusion of light, colour consistency and high luminous efficiency.
Uniform luminous colour, 480 Chips/m ultra-dense SMD LED with high brightness (CCT - 560LEDs/m), almost no spot on the light strip, also no flicker and no radiation.
DC24V low voltage input, safe, energy-saving and environmentally friendly, suitable for local lighting, ambient lighting, and mood lighting.
3000K warm white /4000K natural white /6500K daylight LED color temperature optional. Choosing the correct color temperature lights for your project is very important. Consider the look and feel you want.
Product list:
1* 5m/16.4Ft COB led strip light
If you choose the LED controller in the kit, we will send you V1 + RT1
If you choose the LED power adapter in the kit, we will send you a 24V power adapter PSPS-24V-72W or a 12V power adapter PSPS-12V-72W
FSLCOB-8MM-480SE
[ VIDEO: Watch on YouTube ]
Product Specification
| LED Strip Type: | 3000K/4000K/6000K COB LED Light Strip |
| LED Chip: | SMD1021 LED Chips |
| Input Voltage: | DC24V |
| Power: | 12W/m, 60W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | 3000K WarmWhite / 4000K Natural White / 6000K Daylight, CCT - 560LEDs/m |
| PCB Width: | 8mm |
| LED Quantity: | 480 Chips/m, 2400 Chips/Roll |
| Product Size: | L5000*W8*H2.36 (mm) |
| Cut Unit: | 33.3mm |
| Waterproof Rating: | IP20(non-waterproof ) / IP67(waterproof heat shrink tube) |
| Substrate Material: | FPC |
| CRI: | 90 |
| Lifespan: | 50,000+hours |
| Beam Angle: | 120° |
| Luminous Efficiency: | 720 lm/m |
Installation Diagram:
1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.
2. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters / roll.
3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector,
it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7. It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection
