Single Color LED Controller Set V1 + RT1 For sylvania led strip lights

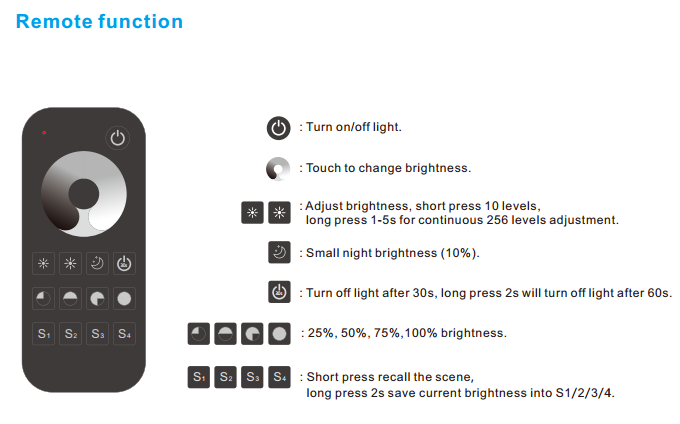

The single LED controller set is a remote dimmer controller designed with a touch wheel, which offers both switch and dimming functions. Smooth dimming without any flickering by touching the wheel. 256 level brightness adjustment with dimming range from 0.1% to 100%. small night, 25%, 50%, 75% and 100% brightness can be get directly by buttons. Humanized scene memory function enables the controller to remember the last brightness after turn off or cut off.
Mini-style RF dimmer, one channel constant voltage output.
Smooth dimming and switch without any flickering.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

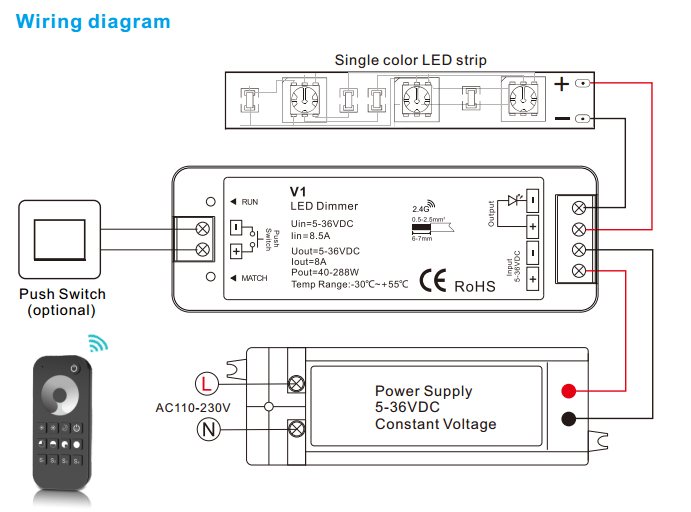

Can connect with external push switch to achieve on/off and dimming function.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
