RF DIM Control System

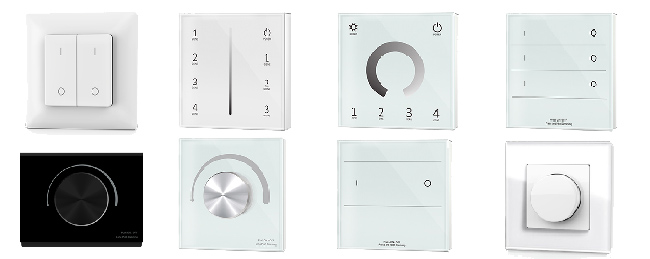

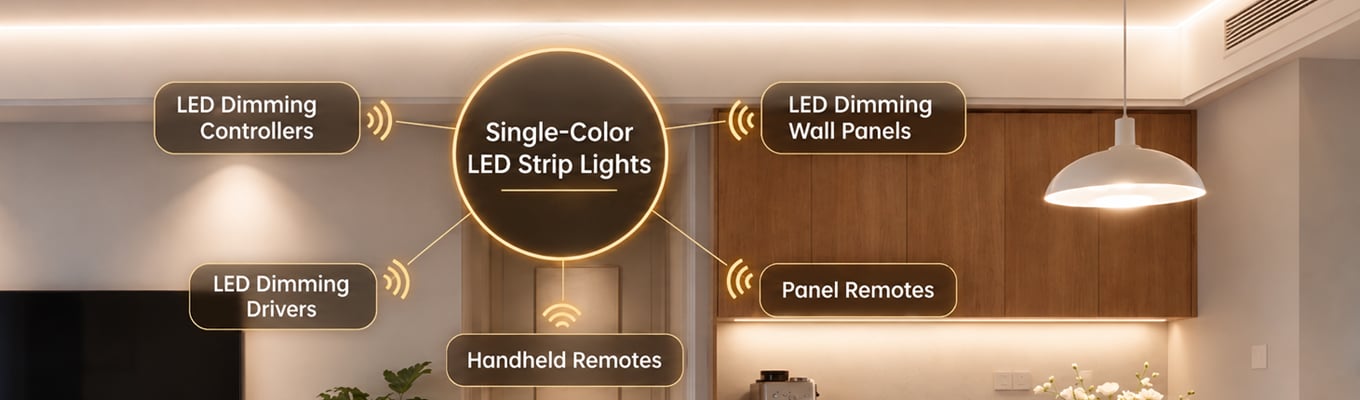

A SkyDance RF Dimming LED Control System sends a 2.4 GHz wireless signal from a handheld remote, wall panel, or sensor to one or more matched DC receivers. The receiver sits between your constant voltage power supply and your single-color LED strip lights, modulating output via pulse-width modulation (PWM) across 4,096 grayscale levels. Each receiver also acts as a signal repeater, relaying commands up to 30 meters to the next unit so your wireless network can cover an entire floor without extra control cabling.

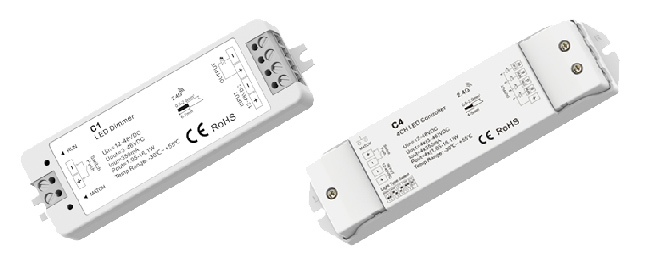

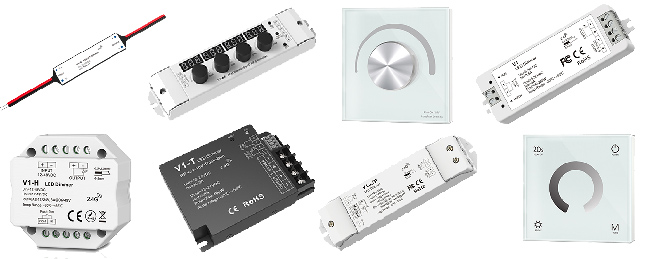

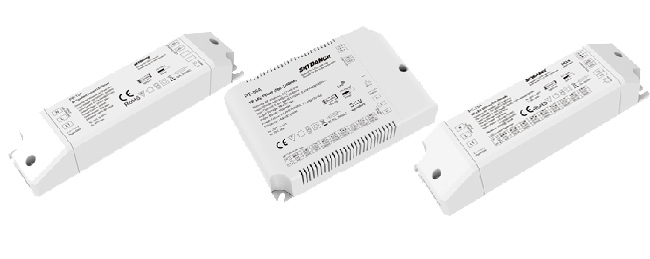

Match the dimmer to your fixture's circuit design: constant voltage receivers run standard 12V, 24V, or 48V tape, while constant current receivers drive raw LED chips or downlights requiring fixed milliamp feeds. Across our RF DIM Control System range, we list 146 live models spanning both topologies, from miniature 1-amp low-voltage pucks to 15-amp commercial terminal blocks. If you are wiring standard flexible LED strip lights with onboard resistors or IC regulators, you need a constant voltage dimmer. If you are unsure which board type your fixture uses, check our guide to choosing controllers.

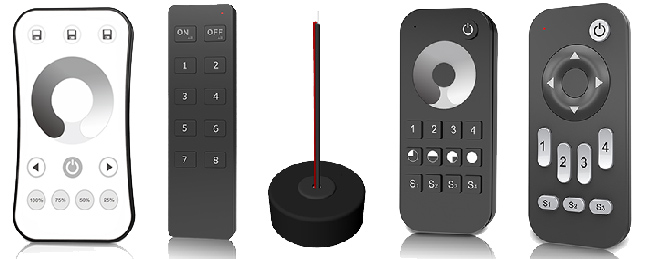

To pair multiple receivers to one remote, tap the 'Match' key on each receiver and immediately press the target Zone button on your remote within 5 seconds. The connected LED strip lights will flash several times to confirm the link. One wireless receiver can pair with up to 10 different handheld or wall remotes, and each zone on a remote can bind to an unlimited number of receivers. Because every matched unit repeats the command within 30 meters, all receivers on that zone synchronize instantly without visible delay.

Yes, but an RF-only receiver cannot read analog 0-10V sink lines or bi-directional DALI bus commands directly. When a facility already runs wired architectural automation, we solve the protocol gap using our dedicated 0-10V dimming controllers or DALI signal converters that translate incoming line signals into matching DC PWM output. This lets your single-color LED tape track the facility's existing wall stations and sensor schedules without replacing your main architectural control processor.

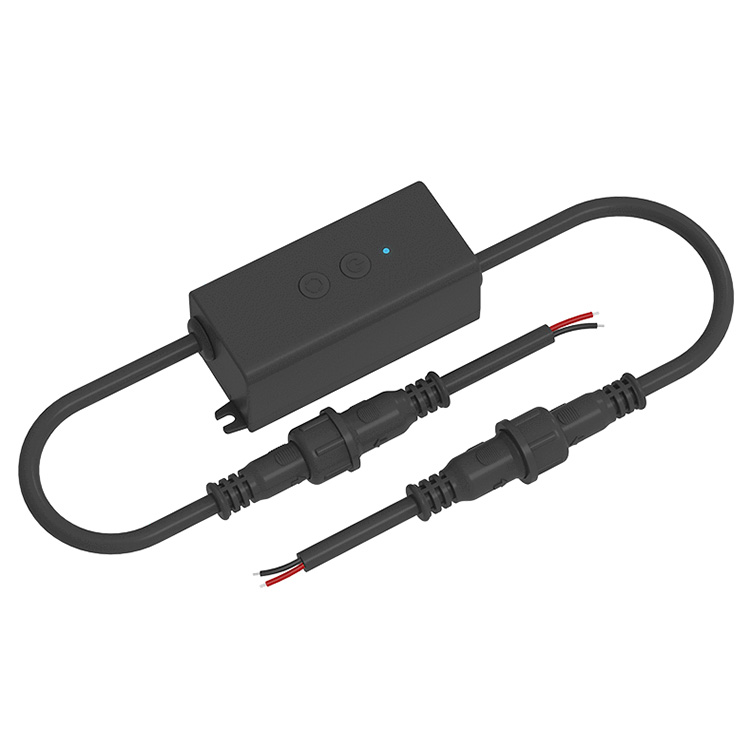

Outdoor LED strip lights require an IP67-sealed receiver like our V1-WPM, housed in a potted, weather-resistant enclosure with waterproof gland nuts. Standard indoor controllers mounted in humid crawl spaces or unconditioned exterior soffits fail when condensation bridges the screw terminals. Keep the wireless RF receiver outside metal enclosures, because an aluminum junction box acts as a Faraday shield and cuts control range from 30 meters down to less than 2 meters. A sealed plastic junction box preserves full RF transmission while stopping moisture intrusion.

Multiply your LED tape's rated watts per meter by the total length, then add a 20% safety margin before matching against the controller's amp rating. For example, a 10-meter run of 24V LED strip lights rated at 14.4 W/m draws 144W, which equals 6 amps at 24VDC. Applying the 20% head-room brings your target load to 7.2 amps, meaning an 8-amp or 15-amp receiver will run cool and last years, whereas a 5-amp unit will hit thermal protection and shut down within 20 minutes.

You can wire single color tape to individual negative channels on a multi-channel unit, but you lose dedicated single-zone dimming ergonomics. A dedicated 1-channel dimming unit maps all 4,096 grayscale steps across a single rotary knob, slider, or touch ring, giving you smooth low-end control without hunting across multi-color channel menus. In our sibling ranges like RF RGB (83 models) or RF RGBW (62 models), the microcontrollers prioritize color mixing algorithms rather than ultra-fine single-channel logarithmic dimming curves.

Standard drywall and wood studs cause minimal signal loss, but foil-backed vapor barriers, wire lath, metal stud tracks, and stainless steel appliances absorb 2.4 GHz radio waves heavily. If your wireless RF dimmer sits inside a metal vanity cabinet or behind reinforced concrete, signal penetration drops sharply. Move the receiver to an external plastic enclosure or position another paired receiver midway between the remote and the light fixture to take advantage of automatic mesh packet re-transmission.

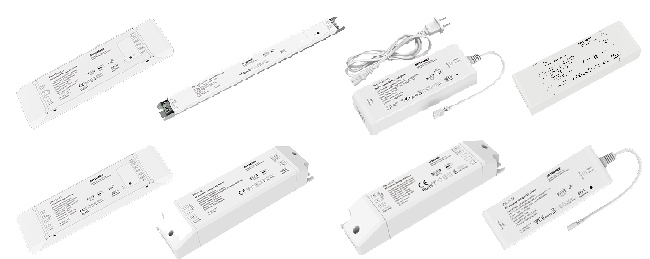

Yes, using an integrated driver receiver eliminates the secondary DC jumper wires between your power supply and external controller. An all-in-one unit like the LPV-150RF-12 integrated driver takes 100-240VAC directly into its input terminals and provides an onboard 2.4 GHz RF receiver that drives 12V LED strip lights directly. This design saves valuable space inside cramped ceiling coves and commercial cabinetry while cutting installation labor down to a single compact enclosure.
