| Select Kit: | LED Strips (Base), LED Strips + Controller |
|---|---|
| Select Length: | 3.28ft (1 meter) (Base) |
| Select PCB Color : | Black Background (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Transparent Heat Shrink Tube IP67 |
| Availability | In Stock |
| Condition | Brand New |
This addressable LED strip light adopts an ultra-narrow 1.0*1.0mm LED chip with the driver IC integrated inside the SMD3210, saving a lot of space and achieving an ultra-narrow LED strip width of 3mm/0.12in.
WS2812B LED strip light supports DC5V low safety voltage input, single LED can be cut (individually addressable), built-in voltage regulator (256 level grayscale adjustment), dual RC oscillation (synchronous line signal transmission), power-on reset circuit (accept data from DIN port)
Serial single-wire cascade interface, data protocol using single-wire communication, stable data transmission, single LED damage will lead to the entire LED strip does not light up.
High LED density achieves 60LED/m, you can easily achieve lighting the whole room, custom length and IP67 waterproof rating, indoor can be used for narrow space backlighting, outdoor can be used for ambient lighting.
Stable data input and output, you can adjust the color temperature, mode and color chasing effect of LED strip by matching with Raspberrypi/Arduino UNO development board or dream color LED controller.

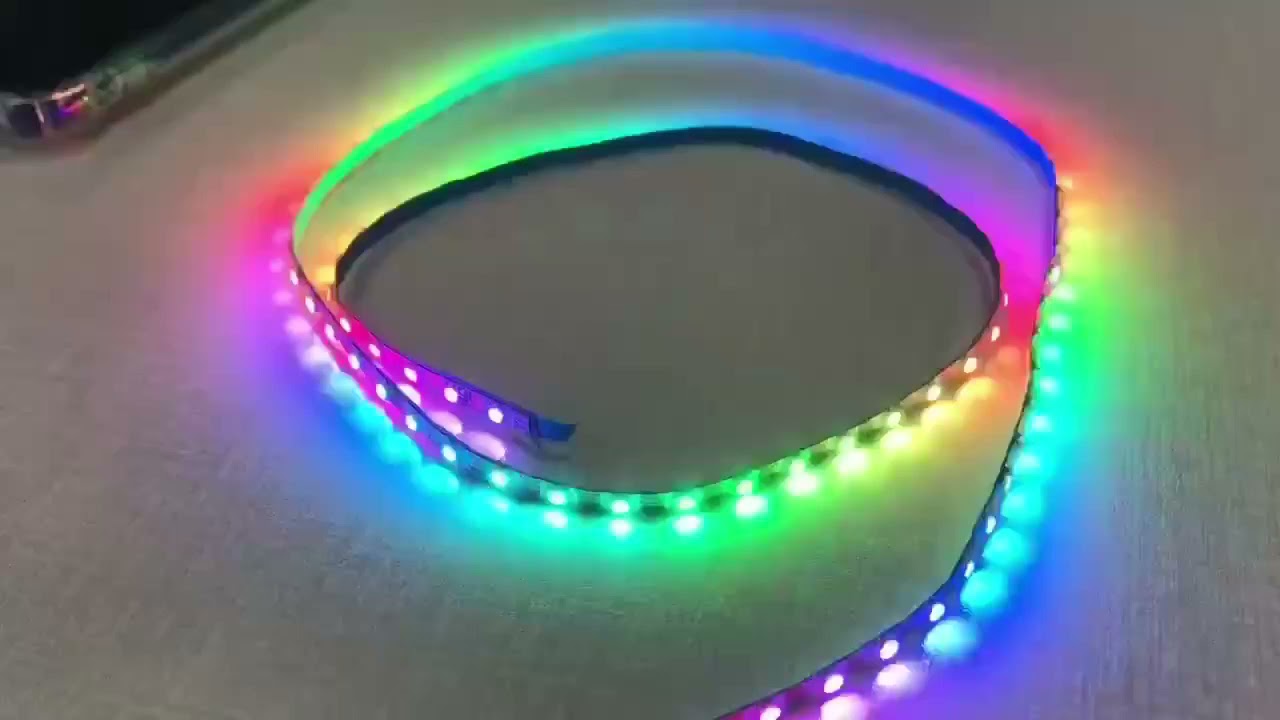

[ VIDEO: Watch on YouTube ]
Features:
3mm/0.12in ultra-narrow led strip light
High density 18LEDs/Ft
Single LED cuttable(Individually addressable)
Internal driver IC
DC5V low voltage input
SMD3210 addressable RGB LED chip
Serial single-wire cascade interface
Customized IP67 waterproof rating
Standards and Certifications
Product Specification
Working Voltage: DC5V;
Power: 12W/Roll;
Length: 3.28Ft/1M;
Light Source: 1010SMD LED;
Plate: FPCB;
IC Model: Addressable RGB built-in IC;
IC Quantity: 60 ICs/M(individually addressable);
LED Quantity: 60LEDs/M, 18LEDs/Ft;
Gray Level: 256 levels;
Beam Angle: 120°;
Waterproof Rating: IP20/IP67;
PCB Wide: 3MM/0.12IN;
Package List:
1*2.95Ft 0.12in Addressable RGB LED strip light
If you choose the LED controller in the kit, we will send you CONFULL-SP107E
Note:
Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
In order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each roll led strip lights.
How to choose the correct LED power supply?
For 0.9m/2.95Ft LED strip light, the power of LED power supply is 22W, to avoid the power load, you need to choose 22*1.2=26.4W LED power supply. You can choose LRS-50-5 or GST60A05
For 2m/6.56Ft LED strip light, the power of LED power supply is 44W, to avoid the power load, you need to choose 44*1.2=52.8W LED power supply. You can choose LRS-75-5
For outdoor environment, you need to choose IP67 LED strip light and don't directly put the LED strip light into the water. You can visit our LPV-35-5 or LPV-60-5 IP67 waterproof LED power supply.
Addressable LED Strip Lights Wiring Diagram
| ►Connection method one: |
*SPI LED Strip lights wiring diagram with 5m*
| ►Connection method two: |
*SPI LED Strip lights wiring diagram with 10m*
| ►How to power addressable LED strip and SPI controller using different voltage power supply? |
| ►How to wire a ultra long addressable led strip lighting? |
*SPI LED Strip lights wiring diagram with 20m+*
