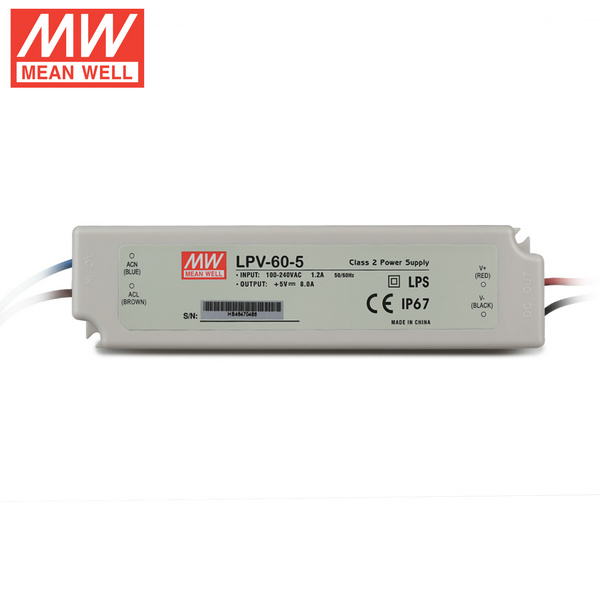

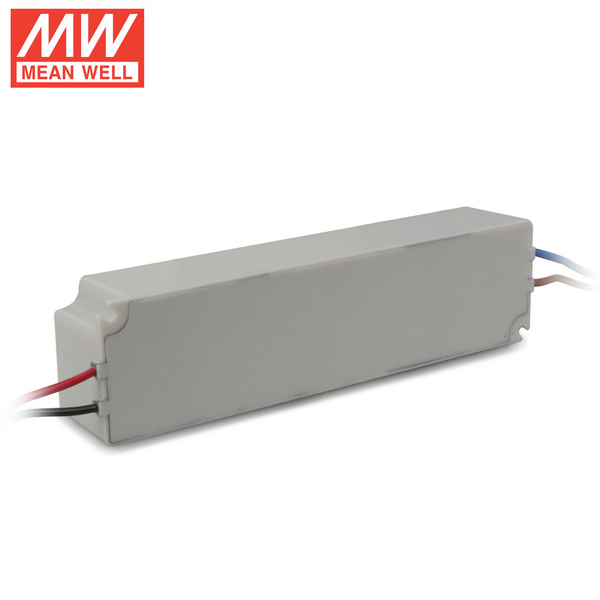

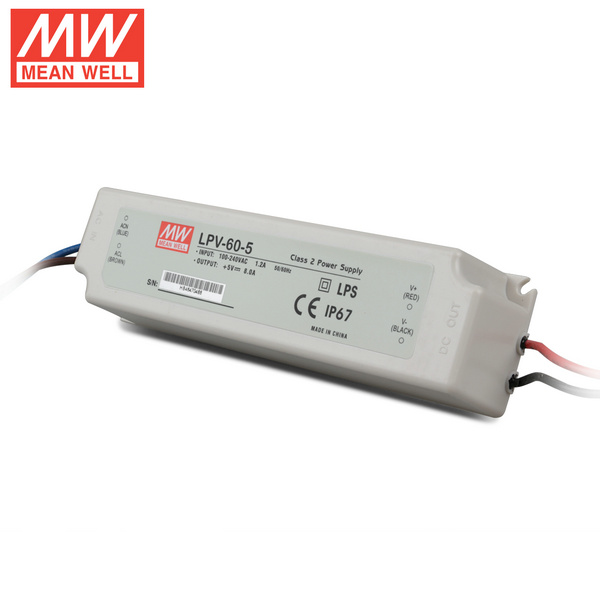

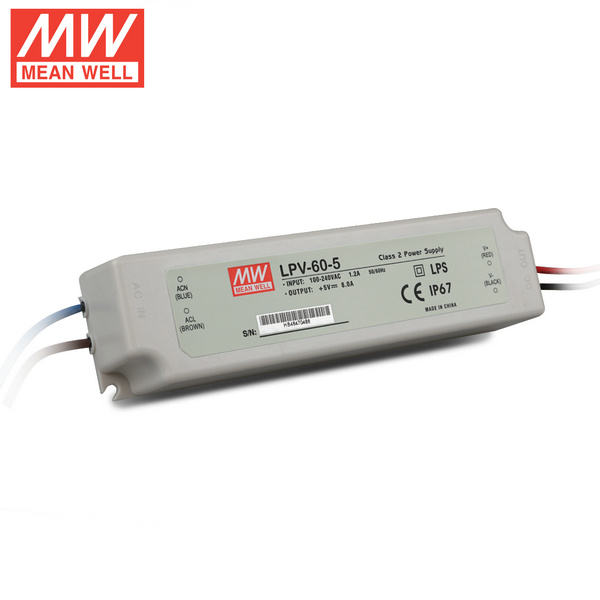

Mean Well LPV-60-5 DC5V 60Watt 12A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
This is DC5V 60W12A Constant Voltage MeanWell High quality waterproof IP67 protection grade power supply for programmable LED strip lights lighting.
Guarantee for LED lights for long time span indoor or outdoors use, Open circuit /short circuit /over voltage /overload /over temperature protection.
100% full load burn-in test, cooling by free air convection, Super long time life span and the product give three years warranty.
Average working no trouble ＞50, 000 hours.
Suitable for LED-based decorative/architectural lighting,LED stage, theater lighting, and LED electronic displays.
2 years warranty.
Products through UL CE and RoHS Certification.

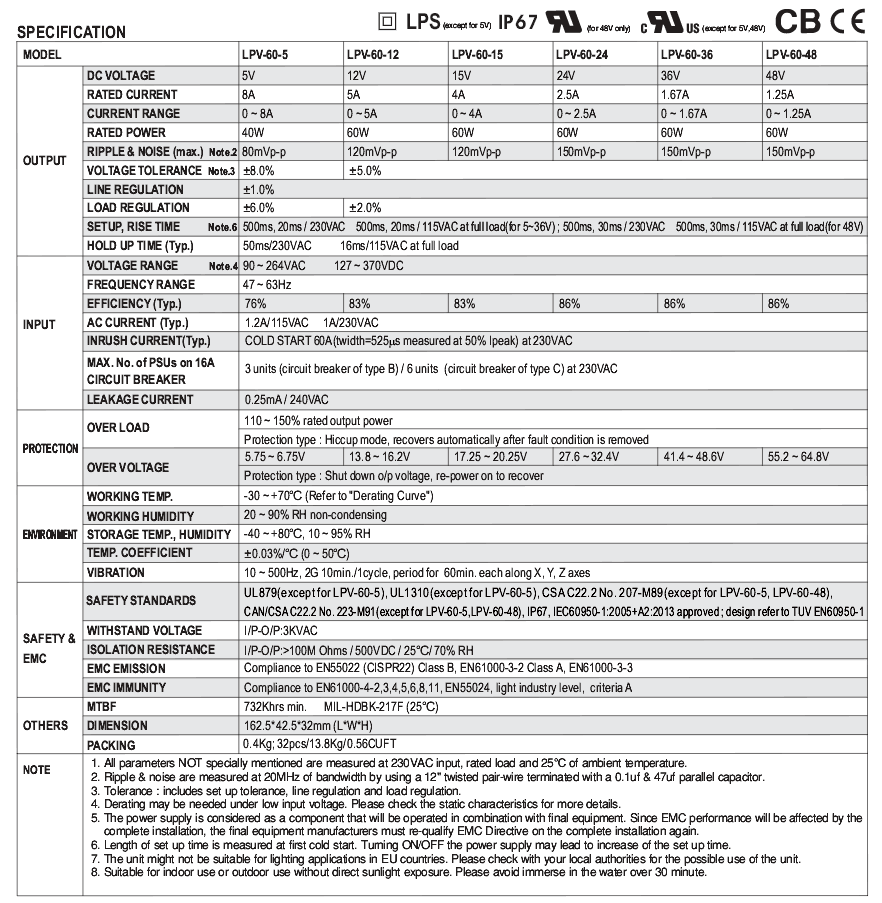

Standards and Certifications
Product Type: MeanWell LED Constant Voltage Waterproof Power Supply
Protect Level： Waterproof IP67
Working Temperature: -30°C~50°C / 20% ~ 90% RH (no frost)
Store Temperature: -40°C~80°C / 10% ~ 95% RH (no frost)
Input Voltage：90-130V / 170-250V
Output Voltage： 5V
Output Current： 12A
DC Output Power: 60W
Output Channels: 1 channel
Certificates: CE&RHOS UL E183223
Average working no trouble: ＞50, 000 hours
Soft Switch Technology: Efficiency>85%.
Protect Function: Short circuit, Surges, Lightning, Overload, Over-temperature,
Input Frequency: 50-60Hz
Overload protection: 105% - 150% rated power, automatic recovery
Cooling method: Aluminum shell heat
1 x 100V-240V to 5V Constant Voltage waterproof IP67 power supply
1 x Product package box
