Spec Sheet - DCFLS-SCNEON-1010X840

Select Installation:	Indoor Use (Base), Outdoor Use
Select Kit:	LED Strips (Base), LED Strips + Controller + Power Adapter, LED Strips + IP67(Controller + Power Supply)
Select Light Color :	Warm White(3000K) (Base), Daylight White(6000K) (Base), Natural White(4000K) (Base), Pink, Warm White(2700K) (Base), Red, Blue, Green, Yellow
Select Mounting Clips:	No (Base), Yes - 2pcs per meter
Type of End Caps:	With Hole (Base), Half With Hole + Half No Hole (Base)
Availability	In Stock
Condition	Brand New

Here is the 10*10mm (0.4*0.4in) square LED neon tube light with various white led color temperatures (2700K warm white, 3000K soft white, 4000K natural white, 6000K pure white) and other solid light colors (red, green, blue, yellow, pink), with soft linear light, no light spot.

This 24V led neon flex outdoor uses food-grade silicone material as housing, can achieve IP67 waterproof rating, suitable for advertising lighting, decorative lighting, and outdoor lighting. IP20 non-waterproof indoor and IP67 waterproof outdoor neon lighting kits are available.

1. Adapt 2835 SMD LEDs, energy-saving, low power consumption, 168 LEDs per meter, high density, super bright.
2. Food grade silicone housing, 120 degrees top lighting, weather resistance, anti-UV, soft and easy bent for installation.

3. Multiple white light color temperatures and led light colors optiona
4. DC24V operation, 10m without voltage drop, good light effects.

5. 95+ high CRI can restore the color and color temperature of the real environment.
6. Achieve IP67 waterproof, arbitrary bending, tear and pull resistance, suitable for making various forms and billboard signs.

LED Neon Light Kit:

1* 5m/16.4Ft LED neon light

If you choose the LED strip + Controller + Power Adapter, we will send you V1 + RT1 LED controller and PSPS-24V-72W LED power supply.

If you choose the LED strip + IP67(Controller + Power Supply), We will send you CONSC-RF161 LED controller and PSWP-24V-100W waterproof LED power supply

If you have requirements for other single color LED controller, you can visit our single color dimmer series.

Standards and Certifications

24VDC

LED Product Type:	10*10mm Waterproof 24V LED Neon Flex Outdoor
LED Chip:	2835 SMD LED
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)
Storage Temperature:	-40°F (-40°C) ~ 176°F (80°C)
Light Colors:	2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow
Max Bending Length:	200mm/7.87in
LED Quantity:	168LEDs/m; 51LEDs/Ft; 840LEDs/Roll
Lifespan:	30,000+hours
Size:	50001010mm
Input Voltage(V):	24 VDC
Working Power:	14W/m, 70W /16.4ft Max
Material:	Food grade silicone
Waterproof Rating:	Waterproof IP67
CRI(Ra>):	95
Beam Pattern:	120 degree
Lumen:	12lm/LED, 614lm/ft

How To Install LED Neon Lights?

1. cut and install led neon sign light:

cut led neon strip lights

There are three installation methods for the led neon strip lights. One is to install with mounting clips. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

Three Ways to Fix LED Neon Tube Lights

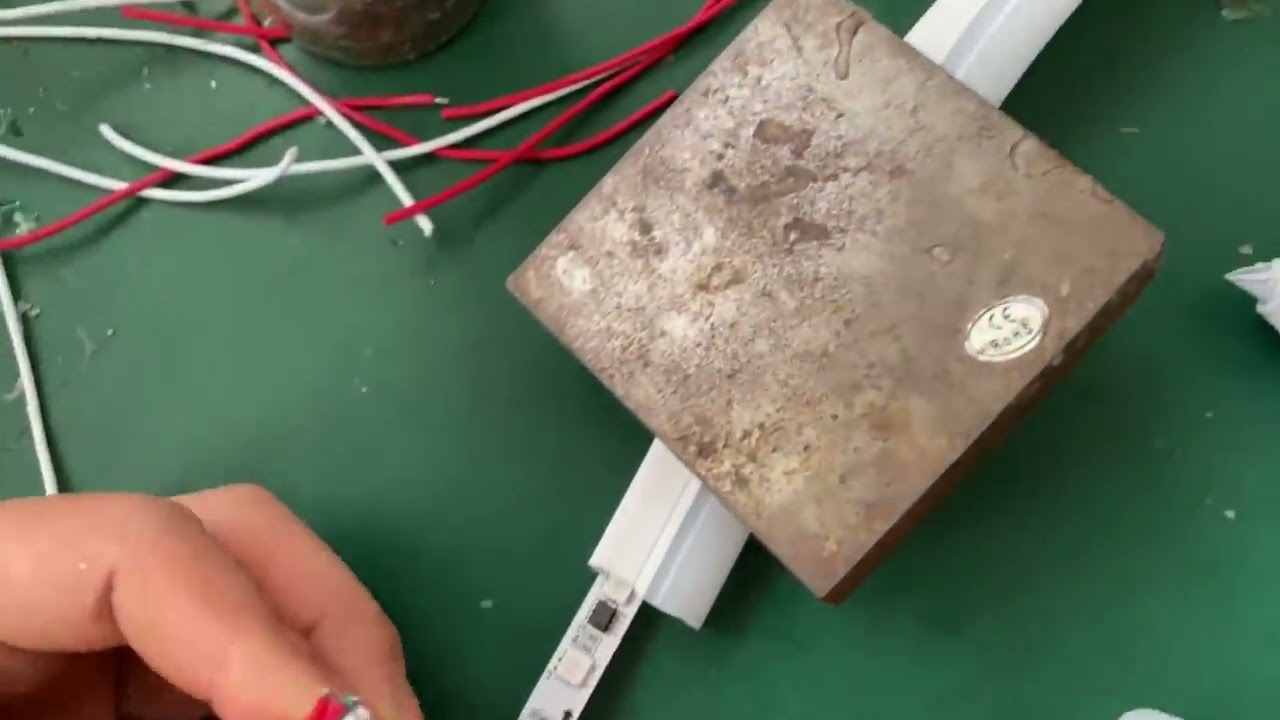

2. How to Make Neon Lights?

[ VIDEO: Watch on YouTube ]

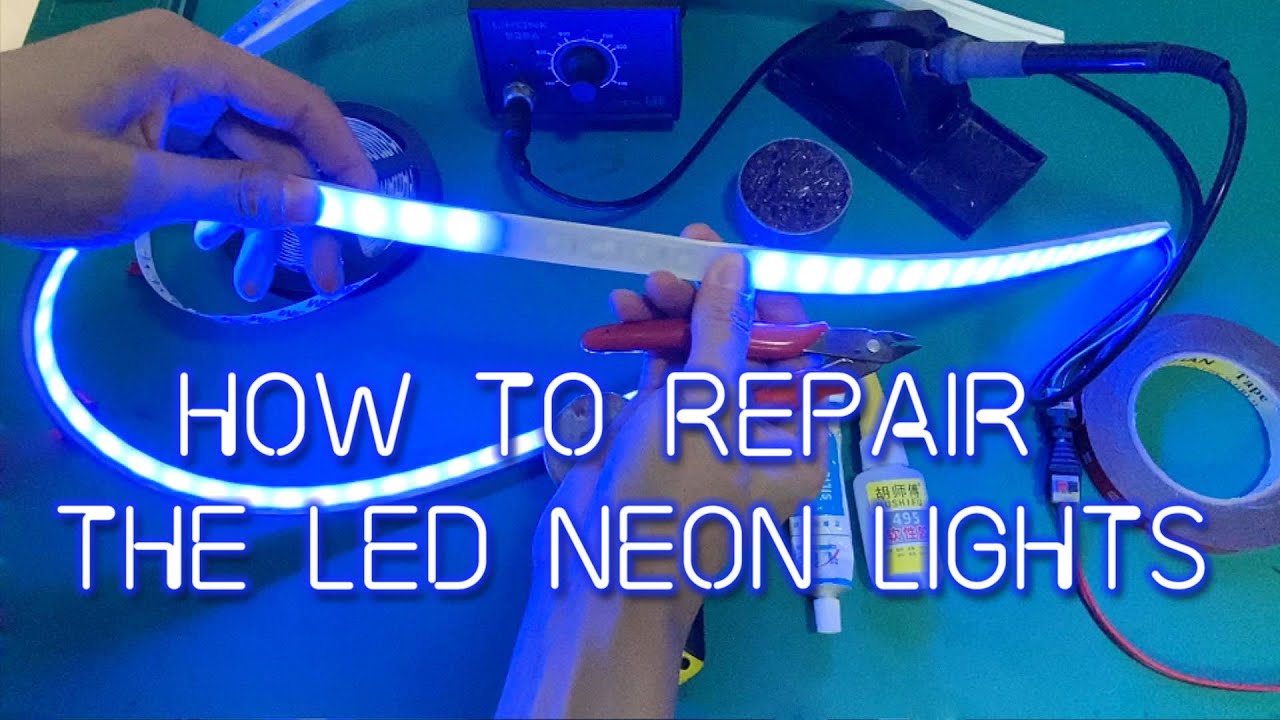

3. How to Repair LED Neon Strip Lights?

[ VIDEO: Watch on YouTube ]

how to install single color led strip and led dimmer

DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
