Product Information
Achieve a clean, professional, and secure installation for your lighting project with our Aluminum/Silicone/Plastic Mounting Brackets, specifically designed for LED neon flex lights. Sold in convenient 10-packs, these sturdy aluminum clips are the ideal solution for affixing neon tubing to walls, ceilings, and other surfaces. With an unparalleled selection of 26 widths, ranging from a slim 4mm to a wide 100mm, you can find the perfect fit for virtually any size of neon flex. These strip light mounting brackets ensure your creative lighting designs, from intricate signage to sleek architectural accents, are held firmly and discreetly in place.
Key Features
Unmatched Compatibility

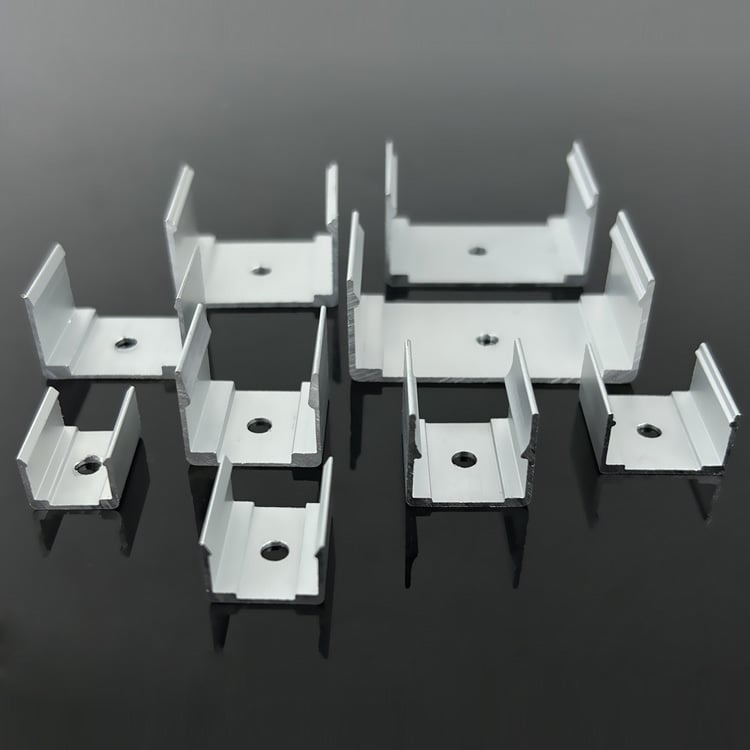

With 26 width options from 4mm to 100mm, these clips are guaranteed to provide a snug fit for your specific LED neon tube.
Sleek & Professional Finish
Screw-mount design for reliable installation on various surfaces.Resistant to environmental factors for indoor and outdoor use.
Convenient 10-Pack
Each pack contains 10 clips, providing ample quantity for straight runs and complex curves in your installation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Aluminum Holder Clip for LED Neon Light Strip |
| Model Number | LEDNEON-ACCOR-01 |
| Material | Aluminum (or Silicone / Plastic for specific models) |
| Quantity Per Pack | 10 pieces |
| Application | Securing LED Neon Flex Tubing |
| Available Widths | 4mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 27mm, 28mm, 30mm, 38mm, 40mm, 50mm, 70mm, 80mm, 100mm |
Application Scenarios
How to Select & Use These Mounting Clips
Measure Your Neon Tube: Before ordering, carefully measure the width of your LED neon tube. This is the most critical dimension for ensuring a proper fit.
Select the Matching Clip Width: In the product options, choose the width that exactly matches your neon tube's measurement. For example:
- - For a front-emitting tube sized W20mm x H10mm, select the '20mm' option.
- - For a side-emitting tube sized W4mm x H10mm, select the '4mm' option.
- - For a 360-degree tube with a 30mm diameter, select the '30mm' option.
Provide Your Model (Optional): If you have previously purchased neon tubing from us, please note your previous order number or the specific tube model in the order comments for a guaranteed match.

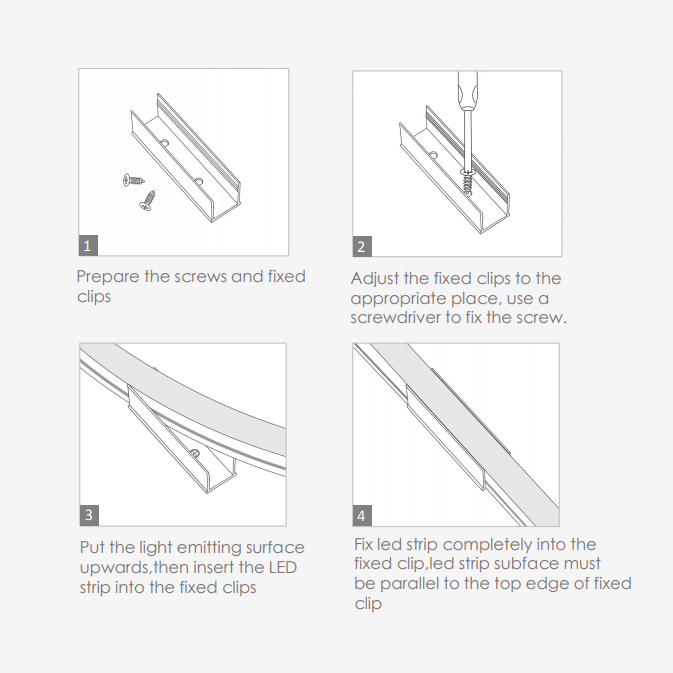

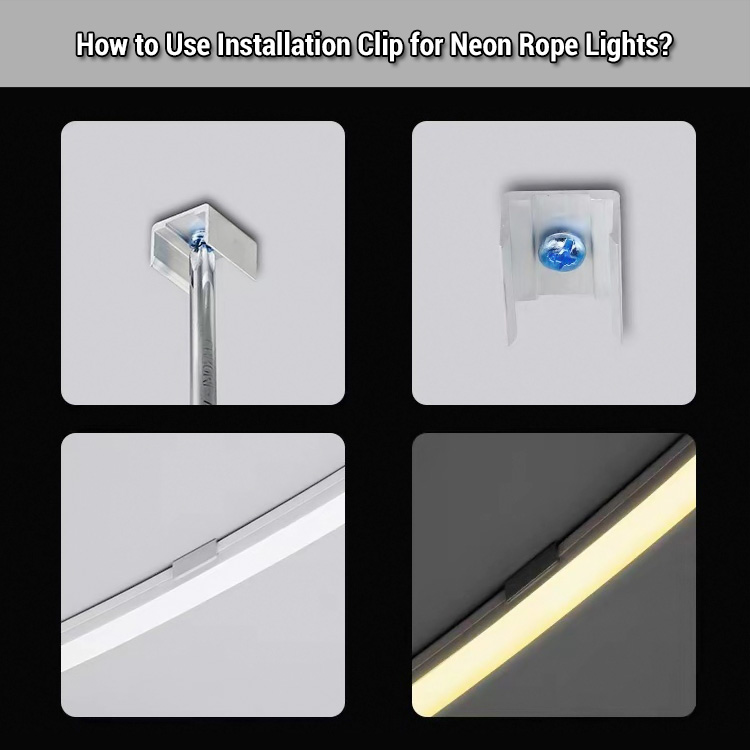

Install the Clips: Determine your desired spacing (we recommend one clip every 12-18 inches). Mark the positions, then use your own screws to fasten each clip securely to the surface. Finally, press the neon tube firmly into the clips until it snaps into place.
- Screws are not included with this product.
- Some specific models of LED neon flex lights are designed to be used only with silicone or plastic clips. If you order for one of these models, we will automatically send the appropriate silicone or plastic clips instead of aluminum.
- These clips are designed for the specific profiles of neon flex and are not suitable for flat, non-jacketed LED tape lights.
What's in the Box
- ✓10 x Mounting Clips for LED Neon Light (Size as selected)
Frequently Asked Questions
Q: How do I choose the correct size clip for my neon light?
A:Measure the width of your neon tube at its widest point and select the identical size from the dropdown menu. For example, a 12mm wide neon tube requires the '12mm' clip option.
Q: Are mounting screws included in the package?
A:No, screws are not included as the required type and length will vary depending on the surface you are mounting to.
Q: Can I use these clips for regular, flat LED tape lights?
A:No, these clips are specifically shaped to hold the profile of silicone-jacketed LED neon flex lights and will not properly secure standard flat LED tape.
Q: How many clips should I use for my installation?
A:For a secure installation on a straight run, we recommend placing one clip every 12 to 18 inches (30 to 45 cm). For curves and corners, place clips closer together to maintain the desired shape.
