| Select Aluminum Profile: | Forward+Flange(Silver) (Base), Forward(Silver) (Base), 90° Light-emitting(Silver)*Recommend* (Base), Forward(Black) (Base), Forward+Flange(Black) (Base), 90° Light-emitting(Black) (Base), No |
|---|---|
| Select Controller type: | ES32 (Base) |
| Select Electrical Enclosure: | No (Base), Yes - Package controller and power supply |
| Select Emitting Color: | Multicolor Chasing RGB - SMD LED (Base), Multicolor Chasing RGB - Dotless COB LED |
| Select Operating Voltage: | DC 12V (one pixel per 50mm) (Base), DC 24V (100mm/pixel SMD, 50mm/pixel COB) (Base) |
| Select Plug Type: | US (Base), UK (Base), EU (Base), AU (Base) |
| Select Smart AC Switch: | Yes - For Timer, No (Base) |
| Select Stair Width: | 1.96ft (0.6meter) (Base), 1.64ft (0.5 meter), 2.62ft (0.8meter), 3ft (0.9 meter), 3.28ft (1 meter), Length of Each Step Light Strip (Base), 3.77ft (1.15m), Customized length, Note when placing an order |
| Select Steps Number: | 8, 10, 12, 14, 16, 18, 20 (Base), 22, 24, 26, 28, 30, 32, 6 |
| Select Waterproof Rating: | IP20 Indoor Use (Base) |
| Availability | In Stock |
| Condition | Brand New |
Use energy-saving addressable LED strip lights to light up your indoor stairs. Adapt intelligent motion senser technology, the stair lights automatically turn on when you approach the staircase, free your hands. This indoor stair lighting kit is to create colorful stair light effects. Every 10m/32.8ft length addressable stair strips should be powered on both ends. A smart APP-controlled AC switch is available to allow the whole stairway light system to be time controlled to achieve the purpose of not working during the day and working at night.
Why choose superlightingled.com to purchase stair lights?
1. Use ES32 LED stair lighting controller, PIR senser, intelligent control.
2. Use addressable RGB light strips as stair light sources, with rich colors and adjustable stair effects. <Red, Orange, Yellow, Green, Cyan, Blue, Purple, White, Color Queue (7 Color + White), Color Chase (7 Color + White), Color Fade ( Color Fade), Rxxx Gxxx Bxxx (User Define)>
3. The number of stair steps is optional.
4. You can choose whether to match aluminum profiles for your stair light strips.
5. The width of stairs (length of led strips) is optional.
6. Complete LED stair lights kit, no need to buy additional items.
What lights to use for stairs?
The use of LED strip lights for staircase lighting has the following advantages:
LED lights are energy-saving;
High applicability, can be used for different types of stairs;
Easy installation;
Up to 50,000 hours of service life;
Linear light, illuminates every corner of the stairs;
LED high brightness, providing sufficient illumination.
How do you put lights on stairs?
The LED strip lights used in our stair lights kit are wrapped in angular aluminum channels and fixed to the surface of the stair treads by mounting clips. You can also choose to stick the light strips directly on the stair tread without installing the aluminum profile housing.
1) LED corner channel: 16*16mm size, 90-degree lighting emitting, the choice of most people.
2) Surface mount led channel: 17.4mm*7.6mm size (Forward), the led aluminum channel fixed on the stair surface by mounting brackets or adhensive tapes.
3) Recessed LED channel: 24.8mm*7.5mm size (Forward + Flange), the led channel profile recessed in the stair, need to reserve size first.
1 ES32 Motion Sensor Controller with one 3-pin JST SM Quick Connector
2 PIR Sensors
2 x 5-meter PIR Sensor Extension Cables
1 Daylight sensor
1 Smart Wi-Fi Alexa-compatible AC switch (optional)
DC12V SMD5050 / DC12V COB stair lighting strips or DC24V SMD5050 / DC24V COB stair lighting strips in specified lengths, with 50cm JST quick-connect connectors on both ends for daisy-chaining LEDs
Aluminum profiles in specified lengths and models (Optional)
If you choose the aluminum profile LED type, the profile length will vary slightly. This is determined by the fact that the light strips can be cut every 50mm or every 100mm:
| Your selected profile length | Actual profile length | Number of ICs per strip |
| 0.5 meters (1.64ft) | 0.52 meters (1.7ft) | 10 (COB, DC12V SMD) / 5 (DC24V SMD) |
| 0.6 meters (1.97ft) | 0.62 meters (2ft) | 12 (COB, DC12V SMD) / 6 (DC24V SMD) |
| 0.8 meters (2.6ft) | 0.82 meters (2.7ft) | 16 (COB, DC12V SMD) / 8 (DC24V SMD) |
| 0.9 meters (2.95ft) | 0.92 meters (3ft) | 18 (COB, DC12V SMD) / 9 (DC24V SMD) |
| 1 meter (3.28ft) | 1.02 meters (3.35ft) | 20 (COB, DC12V SMD) / 10 (DC24V SMD) |
| 1.15 meters (3.8ft) | 1.12 meters (3.67ft) | 22 (COB, DC12V SMD) / 11 (DC24V SMD) |
1 x 5-meter JST extension cable (to connect the first stair strip light to the ES32 controller)
1 DC 12V / DC 24V Mean Well power supply
1 AC plug
1 Waterproof enclosure (optional; please note that the dimensions of this enclosure only allow the controller and power supply to be stacked; if this is a concern, please do not select this option)
When there are an excessive number of stair treads, we will add additional power supply configurations as needed to ensure your custom stair tread kit operates perfectly.
Standards and Certifications
| Product Type: | Motion Sensor Indoor LED Stair Light Kit |
| LED Strip: | DC24V or DC12V Addressable RGB LED Strip |
| Stair Controller: |
ES32  |
| LED Strip Housing: | Aluminum Channel or Not |
| Light Color: | Multi-Color RGB Chasing |
| Step Width: | 0.6m/2ft, 0.5m/1.64ft, 0.8m/2.26ft, 0.9m/3ft, 1m/3.28ft, 1.2m/4ft |
| Stair Steps: | 20, 6, 8, 10, 12, 14, 16, 18, 22, 24, 26, 28, 30, 32 PCS |
| Waterproof Rating: | Non-waterproof(IP20) |
What includes in the motion sensor stair lights kit?

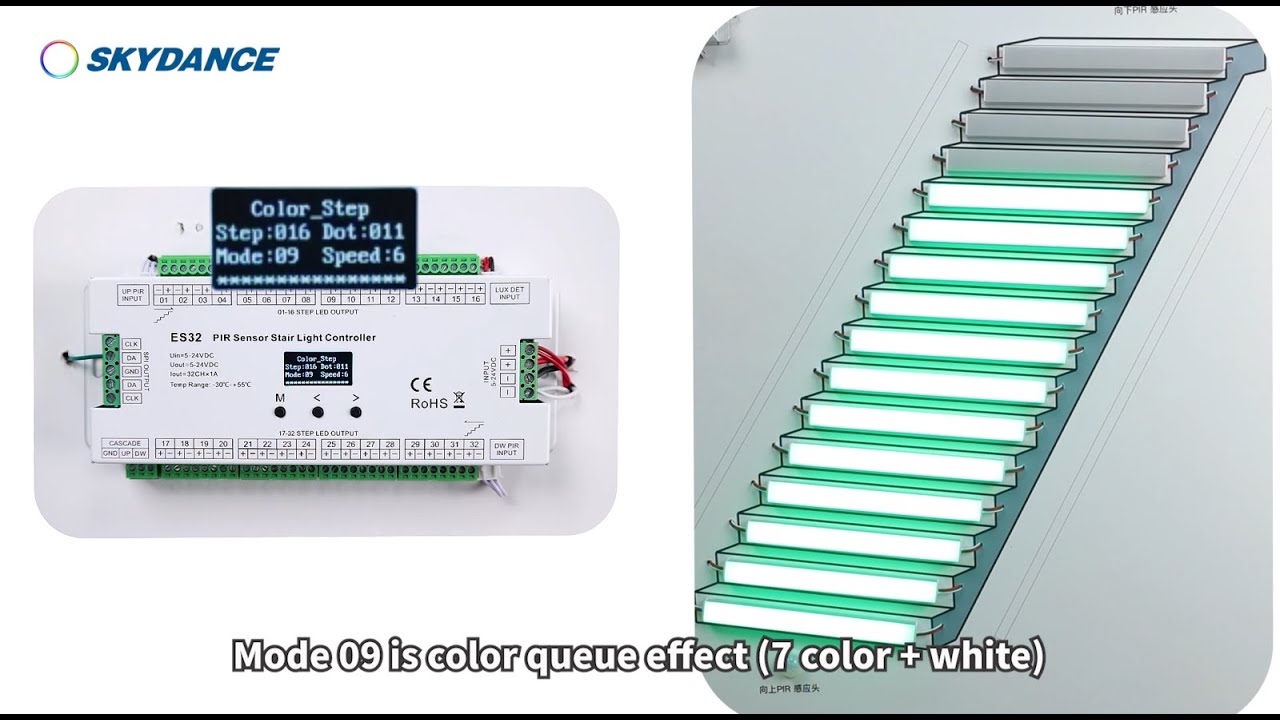

ES32 LED Stair Lighting Controller With 2 PIR Sensors and 1 Daylight Sensor

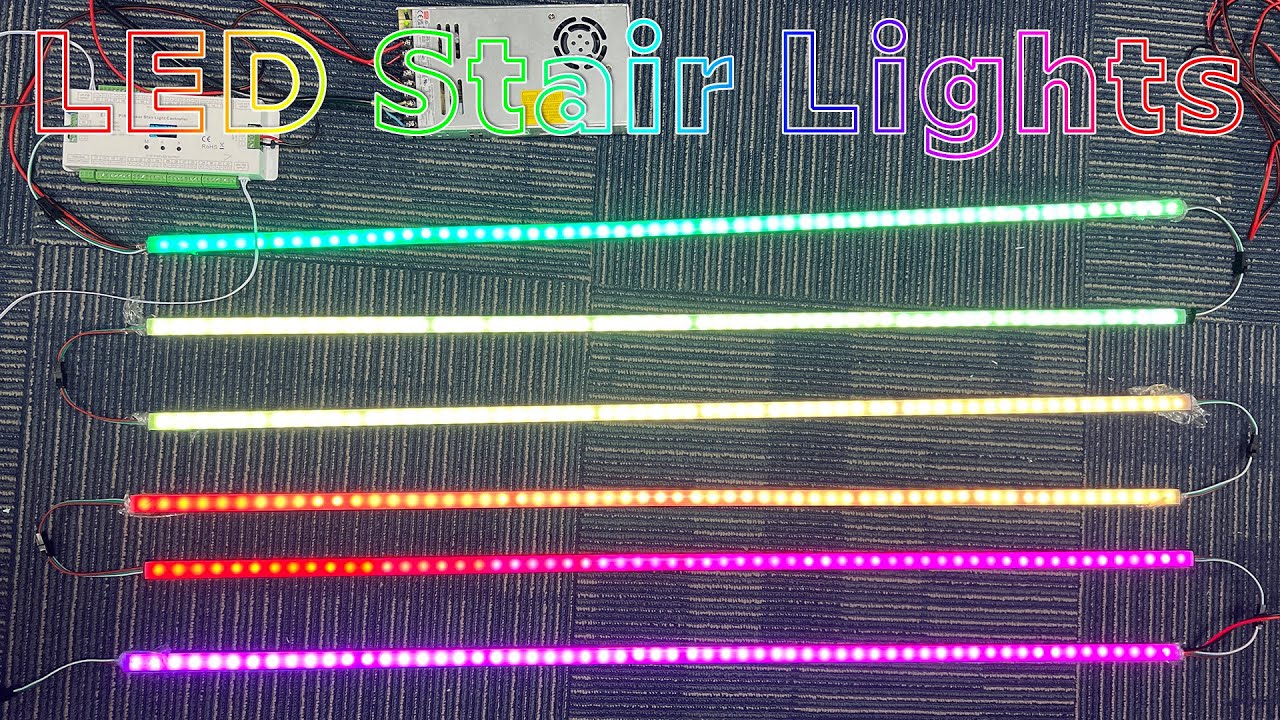

RGB Addressable LED Strip Lights With Aluminum Channel Housing Or Not
UL-Listed Power Supply + AC Plug
Motion Sensor Extensiion Cord

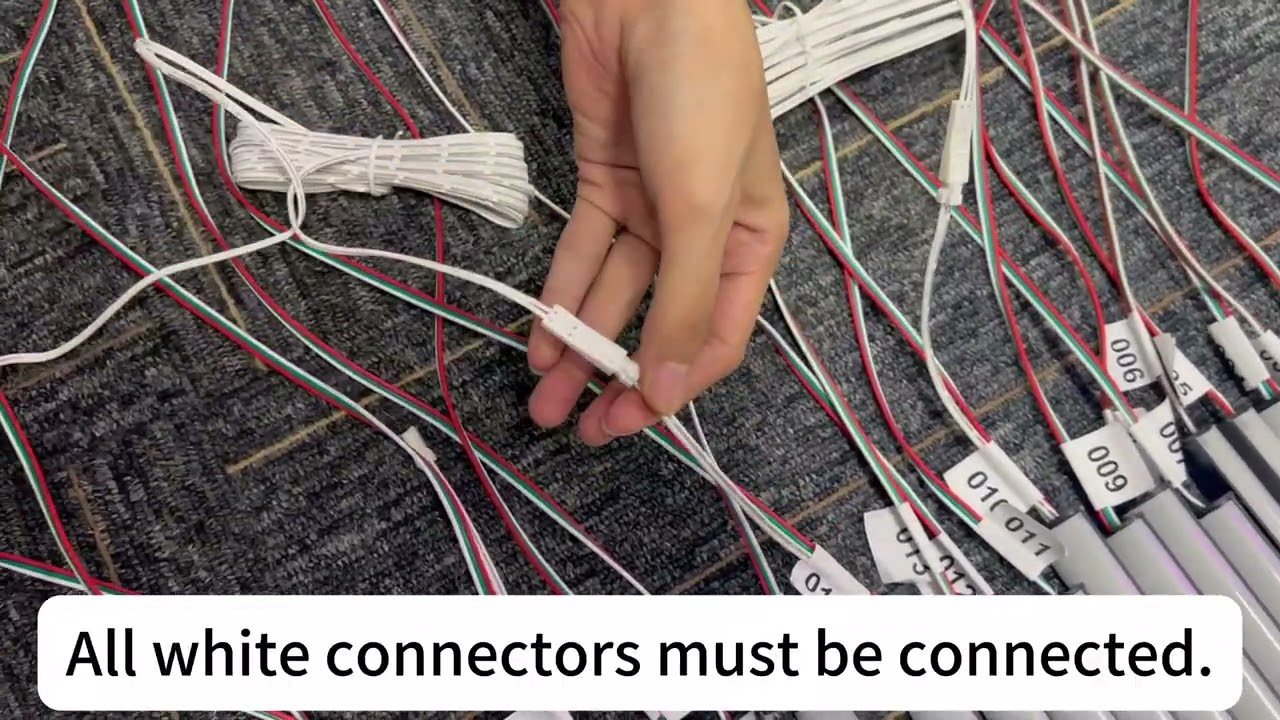

LED Step Light Extension Cord
