PIR Sensor LED Stair Lights Controller ES32 With Stair Lighting Kit
- $79.98 $69.9813% off
- $190.00 $159.9816% off
- $59.98 $19.9867% off
- $30.00 $25.9813% off
$79.98 $69.9813% off

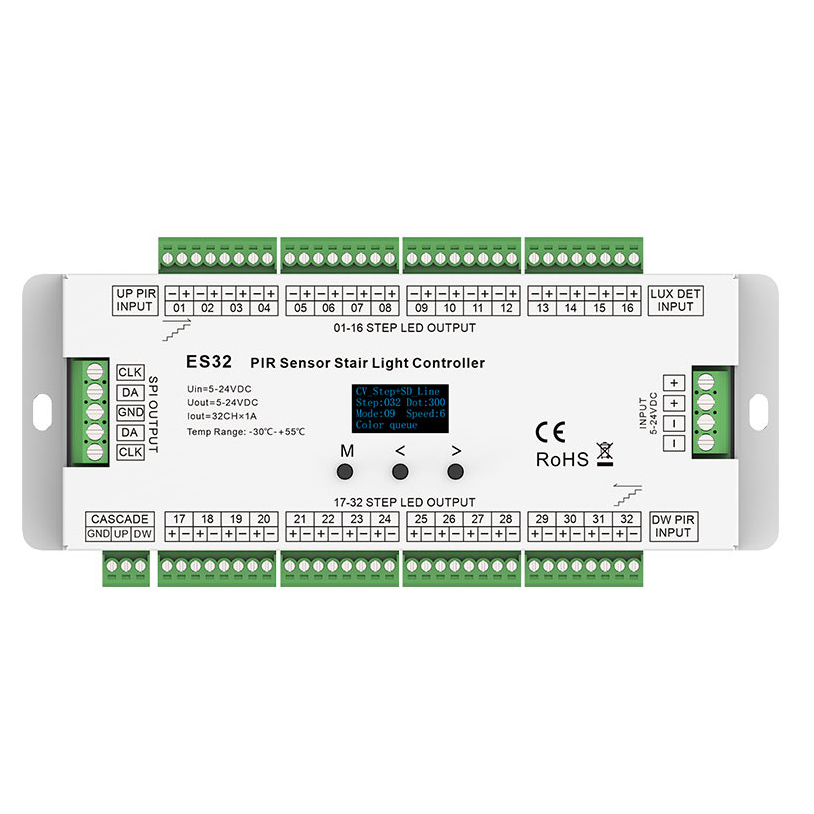

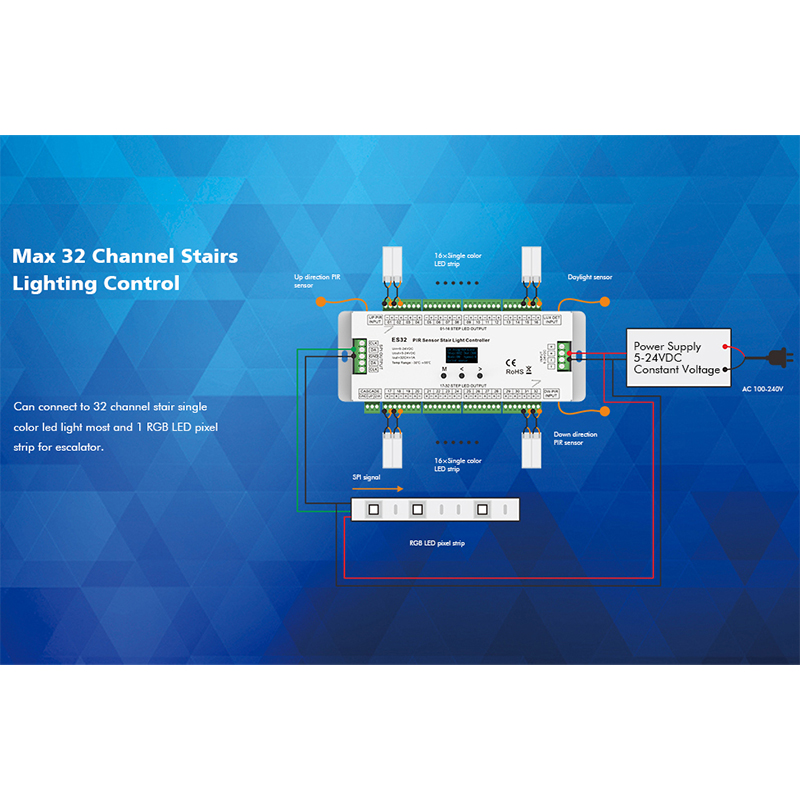

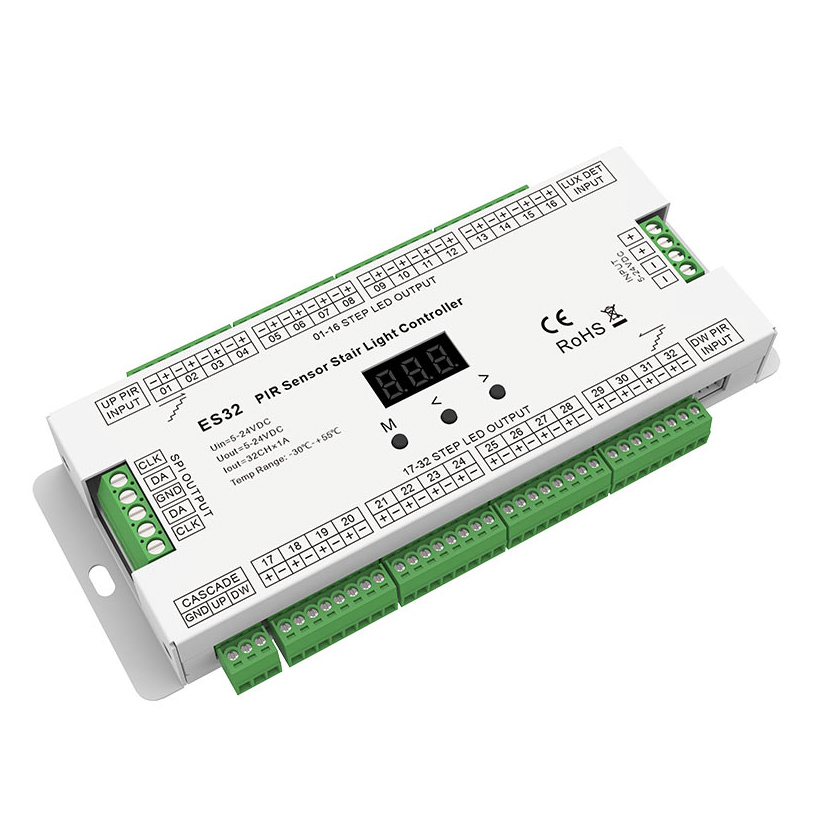

This led product is a PIR sensor stair light controller for DIY stairway lighting, suitable for stair lights indoor decor. The motion sensor stair lights can automatically get the human body induction, and then automatically turn on the stair lighting, after a few seconds, the staircase lighting will disappear, it is an intelligent stair lighting system. This ES32 controller for stairway lights supports control 32 groups of single color led stair lights and 2 groups of addressable dream color staircase lights. The stair light mode can be set.

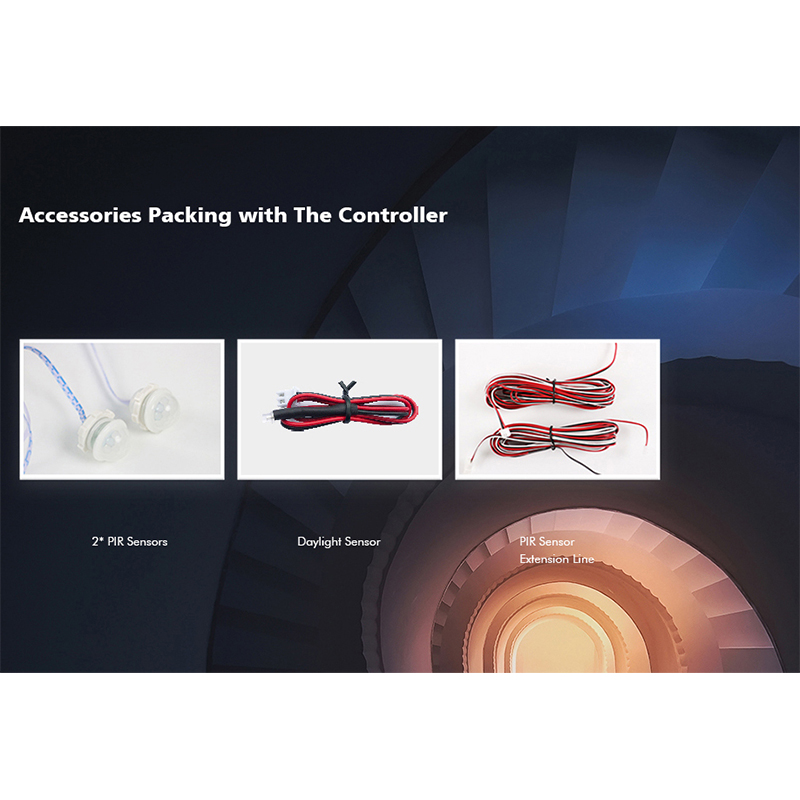

You can select the options to get a complete led stair lighting kit, including COB led strips, an ES32 controller with two PIR sensors, a power supply, an AC plug, extension cords to connect the led step lights and the controller, aluminum channel to protect the stair lights or not.
►PIR sensor stair light controller with daylight sensor.
►32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
►2 groups SPI(TTL) signal output drive 27 kinds IC digtial RGB LED strip, IC type and R/G/B order can be set.

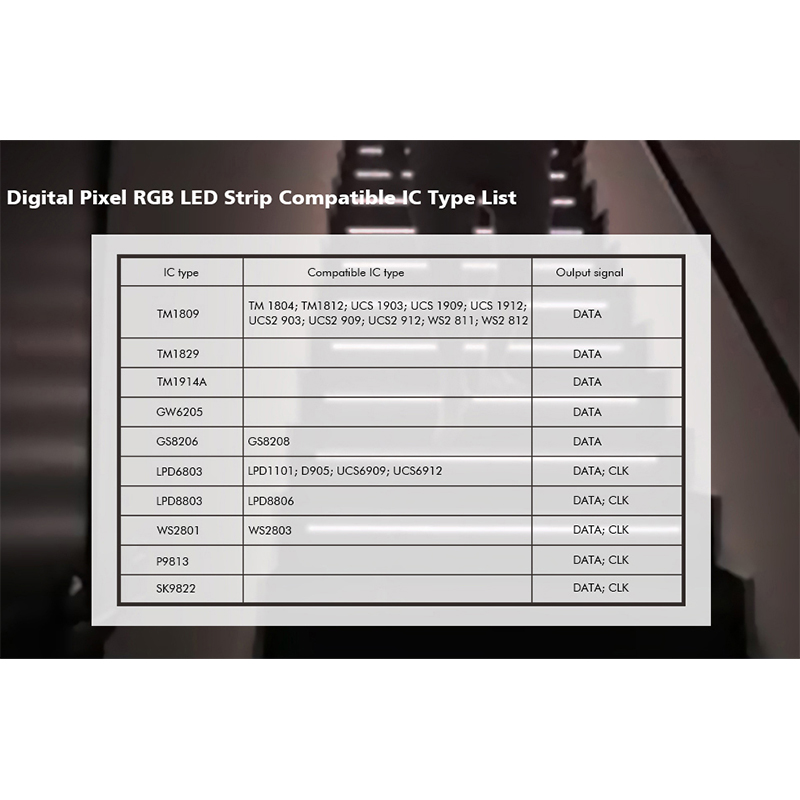

►Compatible ICS: TM1803, TM1804, TM1809,TM1812, TM1903,UCS1909,UCS1912.UCS2903,UCS2909,UCS2912,WS2811,WS2812,TM1829,TM1914A,GW6205.GS8206,LPD6803,

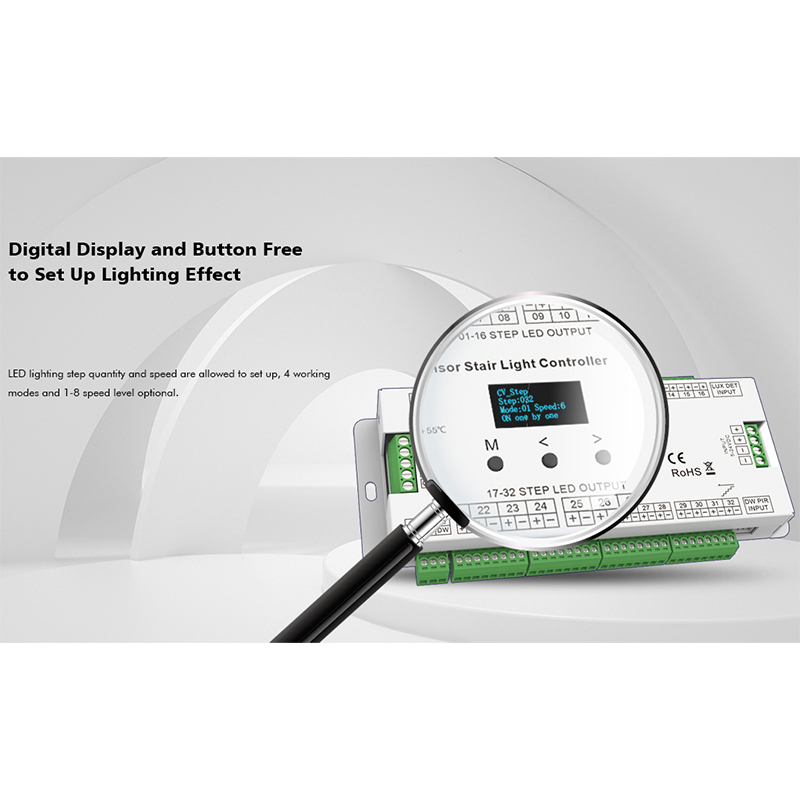

►Easy operation with OLED display and 3 buttons.

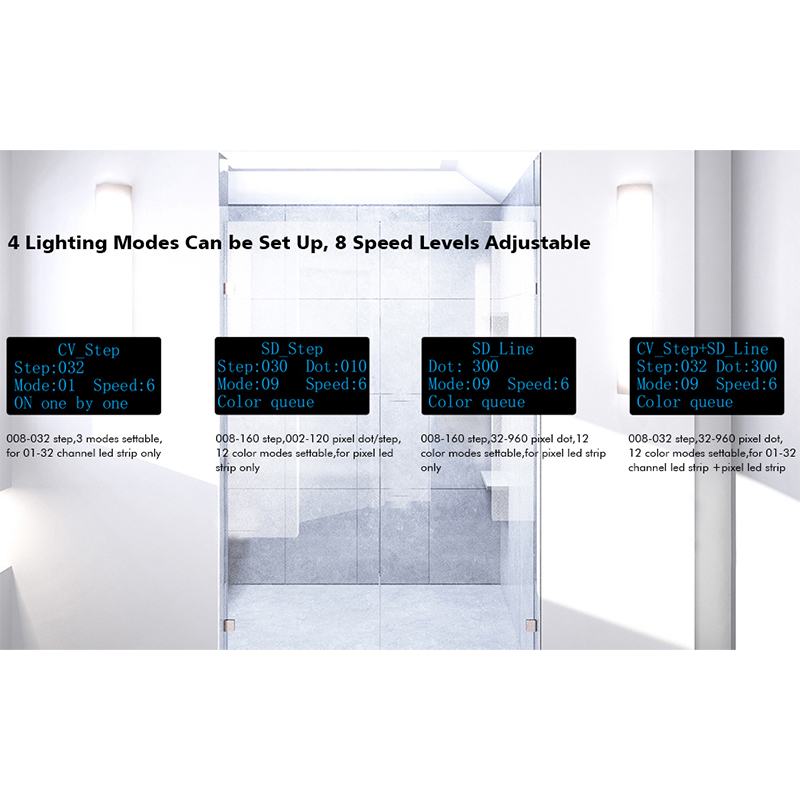

►Four work light mode selectable.

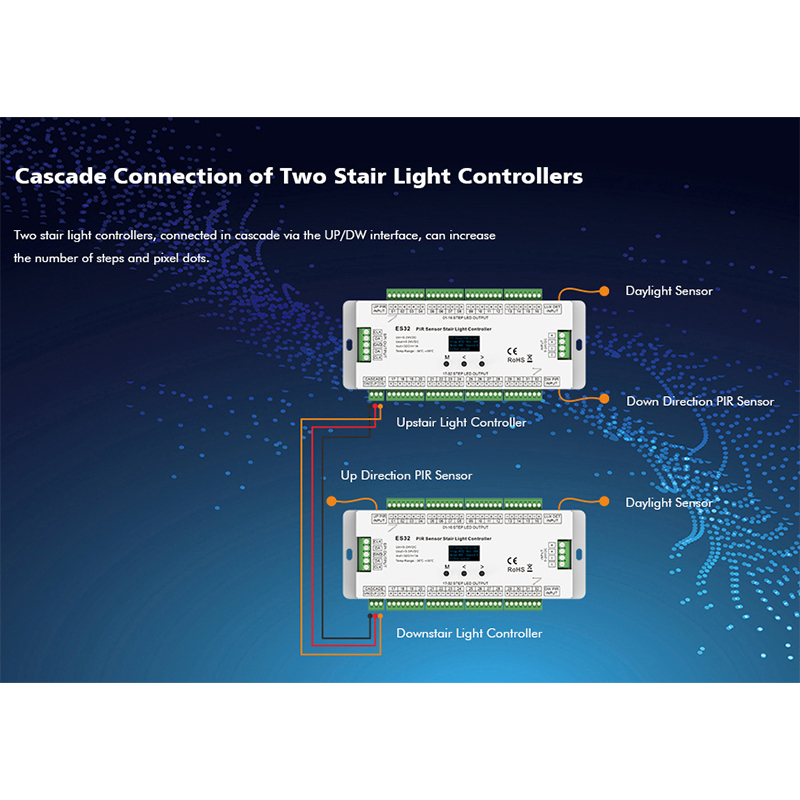

►Two stair light controller can cascade.
►Built-in multiple color mode, speed 1-8 grade adjustable.

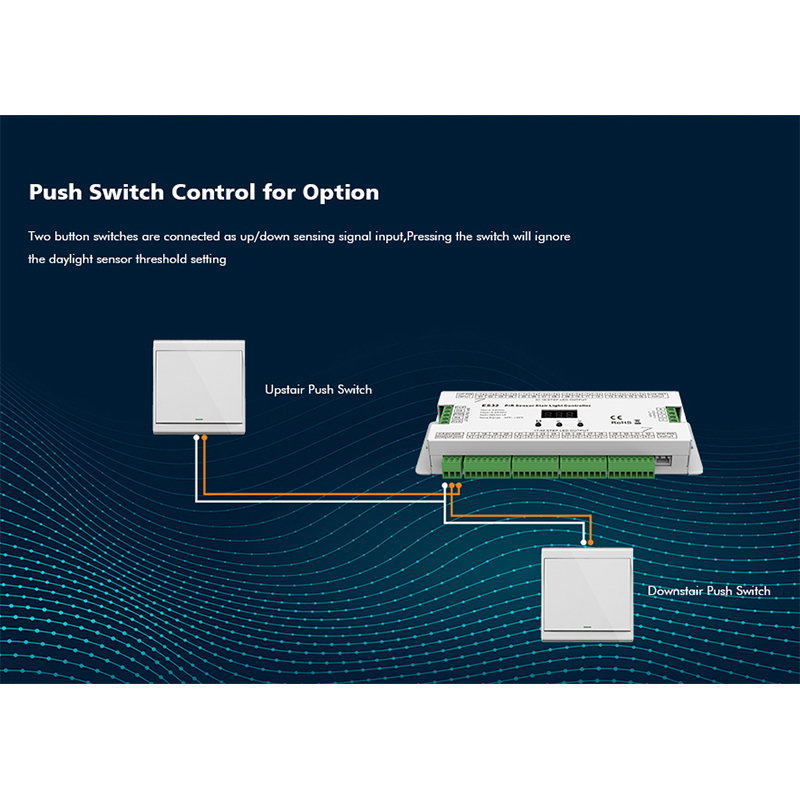

►Push switch can also be as induction signal input.
►With fast self-testing function.
Standards and Certifications
Input Voltage: 5-24VDC
Output Voltage: 32*(5-24)VDC
Output Power: 32*(5-24)W
Output current: 32CH,1A/CH
Output type: Constant voltage+SPI(TTL)
Case temperature(MAX.): Tc:+85℃
IP rating: IP20
|By : Tod Daniels Date Added: 06/30/2022|
|These are really cool. They’ve added a lot to our stairs leading down to our home theater. The motion detection at the top doesn’t register as well as the bottom but it doesn’t affect their usefulness. The lights eventually catch up to your steps.|
|By : Susan Mumm Date Added: 06/30/2022|
|Great lights. Working good so far. Everything you need to install is included. They are a hit with everyone who see them, including me.|
|By : Daniel Navarrete Date Added: 06/30/2022|
|These lights are awesome and easy to install.|
|By : Jan Kutarnia Date Added: 06/30/2022|
|Installation took 3 hours for 15 steps. But it turned out to be pretty good in the end. Love the cascading effect. My stairs now are lit.|
