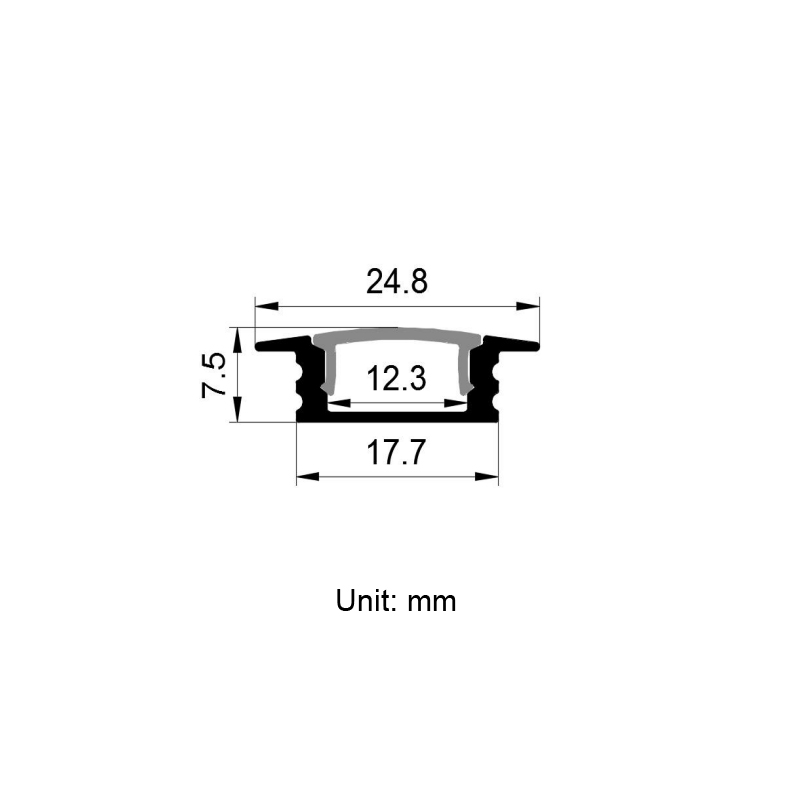

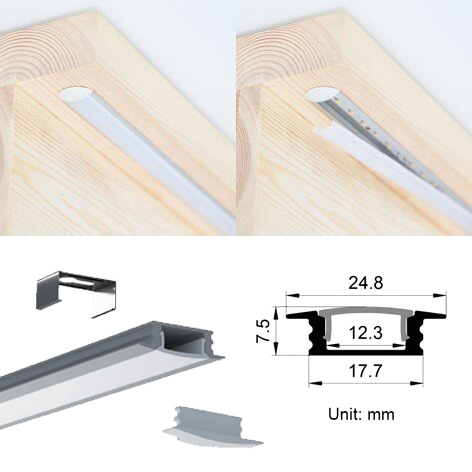

Recessed LED Aluminum Channel With Flange For 12mm LED Light Strips

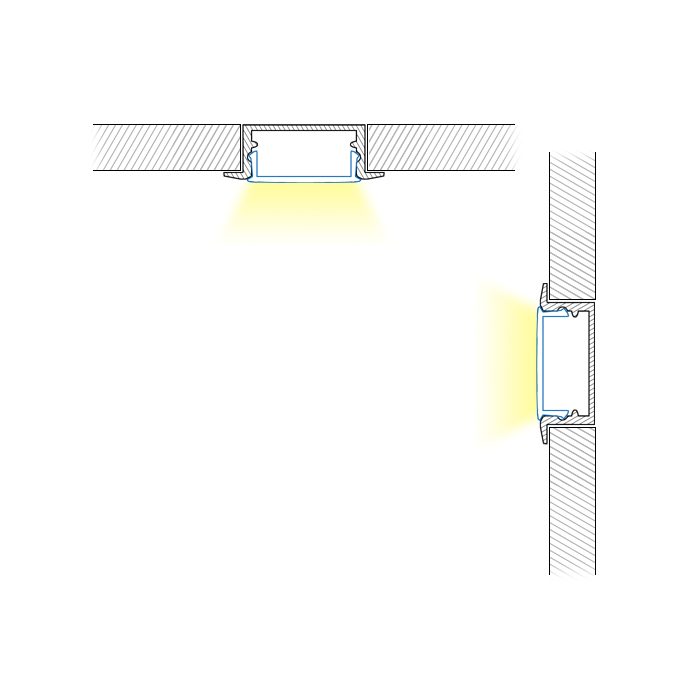

This recessed aluminum channel with flange covers gaps when embedded the led channel to walls or plasters, suitable for 8mm, 10mm, or 12mm 2216 led lights strips. Aluminum profiles for led strip lighting act as an LED light diffuser, smooth led light output, and achieve good heat dissipation effects. It also plays a role in led strip protection from dust and external damage.
One 1m LED strip diffuser channel contains a 1m led aluminum channel, a PC led diffuser cover, one end cap without hole, one end cap with wire hole, and two mounting clips. Differernt led light strip diffusers emit differernt led lighting effect for your LED project. Right led channel color will be more suitable for your decoration style, silver, white, or black aluminum profile. Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting. With mounting clips, the led aluminum channels can be easily mounted in walls, furniture, or other indoor led linear lighting projects.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

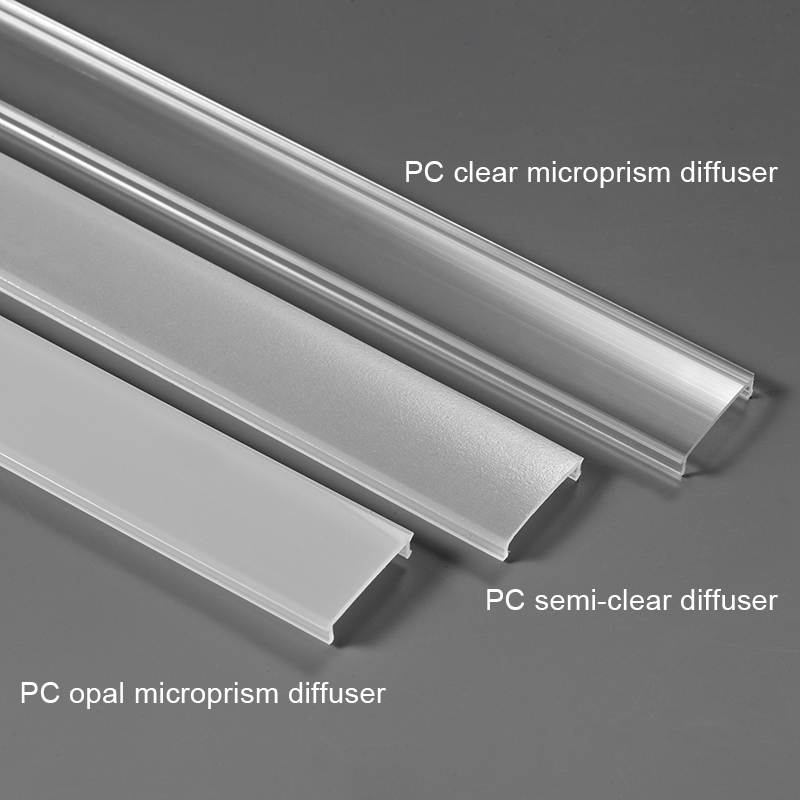

|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||8mm, 10mm, or 12mm 5050/2216/5630/5730 flexible led strip lights|
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
