Product Information
This is a 24V programmable 8mm narrow RGB chip on board LED strip, with a high density of 720 LEDs per meter. Controlled by WS2811 out-built IC, the signal transmission is via a single line. With chip on board design, this multi color LED tape light has an excellent luminous effect, no spot or strobe, perfect for both commercial and residential lighting projects.
The width of this digital COB LED strip is 8mm (0.31in), and the length is 5m (16.4ft). 20 ICs are securely mounted on the board per meter, and each IC manages a 50mm (1.96in) section, which is also the smallest cutting segment. This LED RGB WS2811 COB tape light has lots of black lines to guide your cut, making it convenient to measure the proper cutting position without using a ruler. Using scissors, you can customize lengths according to your needs.
This addressable COB LED strip is flexible. Like other strips, it can be bent into different shapes. Both straight lines and circular arcs can fit tightly. The brightness of the 24V WS2811 color changing LED tape light is adjustable with a controller. RGB colors can produce thousands of colors. Despite the absence of W beads, it can also produce a white color. However, this white light is a mixed RGB effect and will look slightly bluish to the naked eye.
Features
1.Working under a 24V voltage, safe and stable.
2.RGB color, controlled by WS2811 IC, able to display detailed, dynamic color changes.
3.COB technology ensures continuous and smooth lighting without dots.
4.High density of 720 LEDs per meter, 3600 LEDs per roll. (5m/16.4ft)
5.Flexible, cuttable every 50mm (1.96in) for precise length control.
6.Adhesive backing, installation within a few minutes.
We also provide you with an eco 8mm 576LED/m 60W RGB+IC led version.
Standards and Certifications
Product Specification
|
LED Strip Type:
|
SuperLightingLED Digital Multi Color RGB COB LED Light Strip
|
| IC Chip: | WS2811 (20 ICs/m) |
| Input Voltage: | DC 24V |
| PCB Width: | 8mm / 0.31in |
| Power: | 21W/m, 105W/16.4ft |
| LED Color: | RGB |
| LED Quantity: | 720 LEDs/m |
| Dimensions: |
L5m/16.4ft x W8mm x H2.2mm (IP20); W10mm x H6mm (IP67 IP68) |
| Cut Length: | 50mm / 1.96in |
| Beam Angle: | 180° |
| Lumen: | 1080 lm/m |
| Connector: | 3-pin JST SM connectors |
|
Waterproof Rating:
|
IP20 Non-waterproof/ IP67 IP68 Outdoor Waterproof
|
| Installation: | Adhesive backing or mounting brackets |
| Lead Time (excluding shipping): | 1-2 days (IP20 IP67); 4-5 days (IP68) |
Kit Options

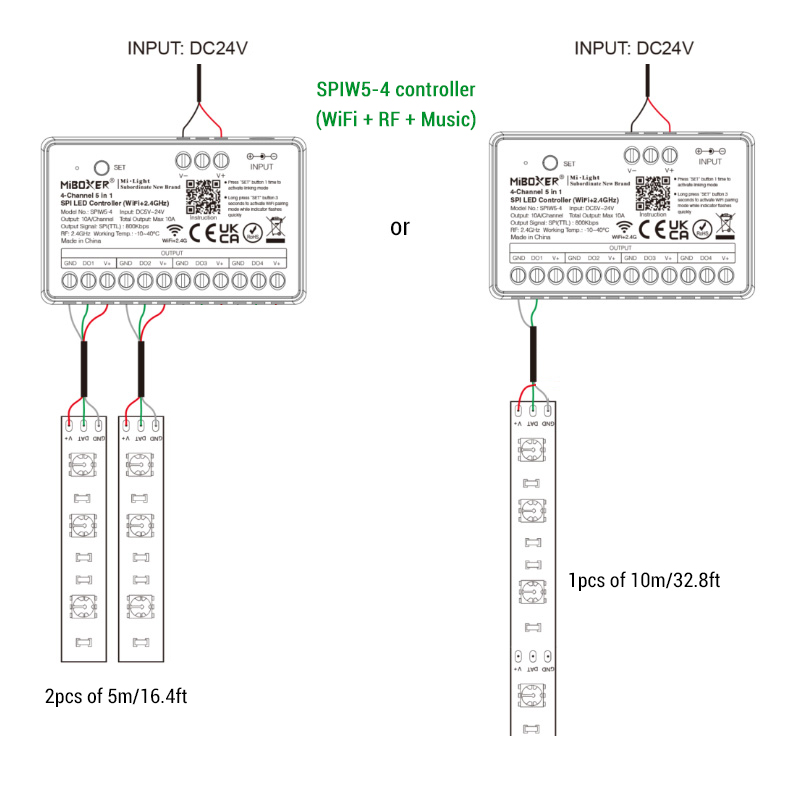

If you choose the 5m/16.4ft COB led strip light kit, you will receive a RGB smart slim COB led strip, an SPIW5-4 four-channel controller (not contain RF remote), and a LRS-150-24 UL-listed power supply.
If you choose the 10m/32.8ft COB led strip light kit, you will receive a RGB smart slim COB led strip, an SPIW5-4 four-channel controller, and a LRS-350-24 UL-listed power supply.
If you want to create your own lighting modes, check out this latest ESP32 WS2811 WLED controller for quick and easy programming.
