| Select Kit: | LED Strips (Base), LED Strips + Controller, LED Strips + Controller + Power Adapter |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select PCB Width: | 10mm (0.39in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets |
| Availability | In Stock |
| Condition | Brand New |
The two-wire design dim to warm led strip consists of two sets of different color temperature SMD2216 LED lights 1800K amber light and 3000K warm white light, the led temperature is adjustable by dim LED lights.
Unlike the three-wire 3000K to 6000K tunable white LED lighting, dim to warm lighting allows for color temperature and brightness changes via low voltage 24V PWM dimmer, Triac dimming power supply and Triac dimmer, and 0-10V dimming power supply and 0-10V dimmer.

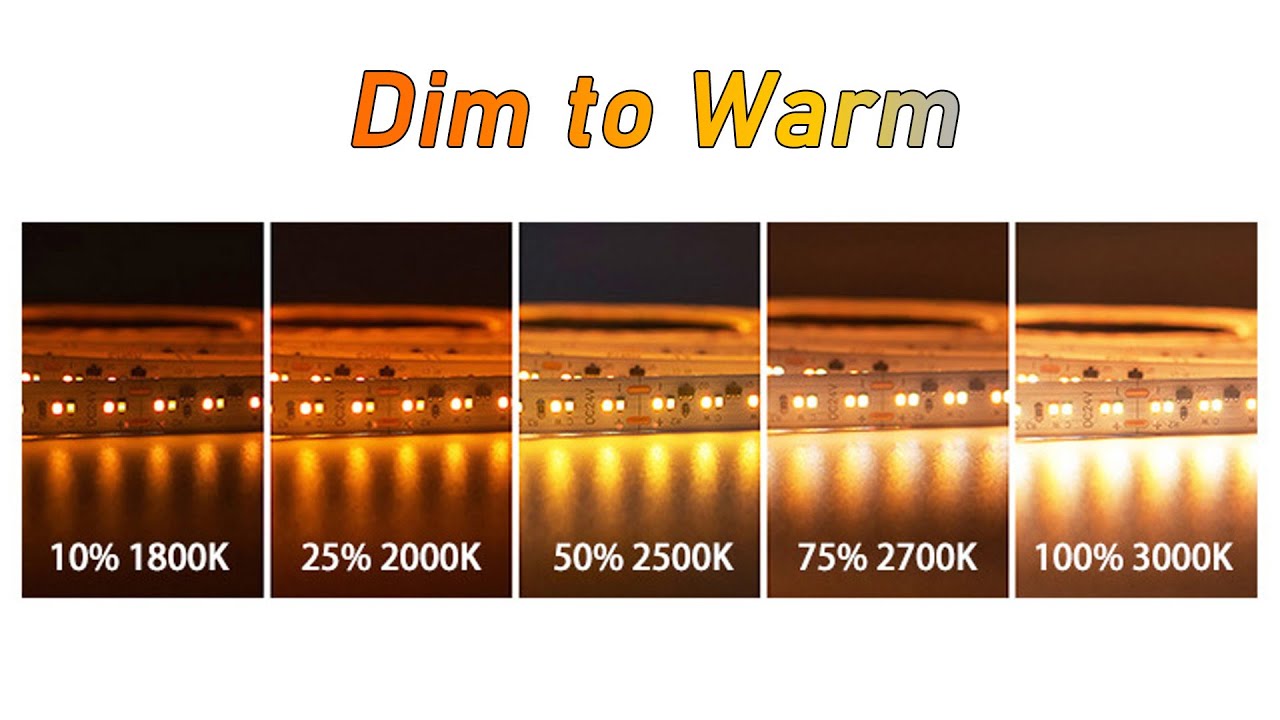

When dimming this 2216 dim to warm led tape light, the light moves toward an extremely warm amber light at 1800K; When brightening, the light moves toward a brighter warm light at 3000K. Delivering a lighting illumination similar to incandescent light.
The high density 224 lights per meter dim to warm LED arrangement provides a seamless lighting effect for your application. Light diffusion is even better when used with LED aluminum profiles. 90+ CRI index, human eye friendly.
Note: Must use special 2-wire CCT controller such as V2-S, V2-S(WZ), LC2-RF, LC2-ZR to control this light strip, not compatible with common 3-wire CCT controllers.
V2-S + RT2 wireless RF remote controller and AC DC24V 5A power adapter in the kit.
Product Specification
| LED Strip Type: | Dim to Warm LED Strip |
| LED Chip: | SMD 2216 |
| Input Voltage: | 24VDC |
| PCB Width: | 10mm/0.4" |
| Light Color: | 1800K amber light to 3000K warm white |
| Dimension: | 16.4ft/roll, every 14 PCS LED can be cut |
| LED Quantity: | 224 LEDs per meter (112+112) |
| Cut Segment: | 62.5mm/2.46" |
| Working Power: | 15W/m, 75W/16.4ft |
| Lumen: | 1350lm/m, 411lm/ft |
| CRI: | 90+ |
| Lifespan: | 36,000+hours |
| Beam Angle: | 120 degrees |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
| Working Temp.: | -20 ~ 50 ℃ |
| Warranty: | 2 years |
