0/1-10V Dimming Series

Skydance 0/1-10V series products perfectly solves the problem of compatibility between fluorescent dimming system and LED lighting, have built-in high-performance MCU, supporting five-in-one dimming, 0~100% dimming range, logarithmic dimming, compatible with various brands of 0/1-10V dimmers and control systems on the market, such as Lutron, EVITIN, Schneider, etc.

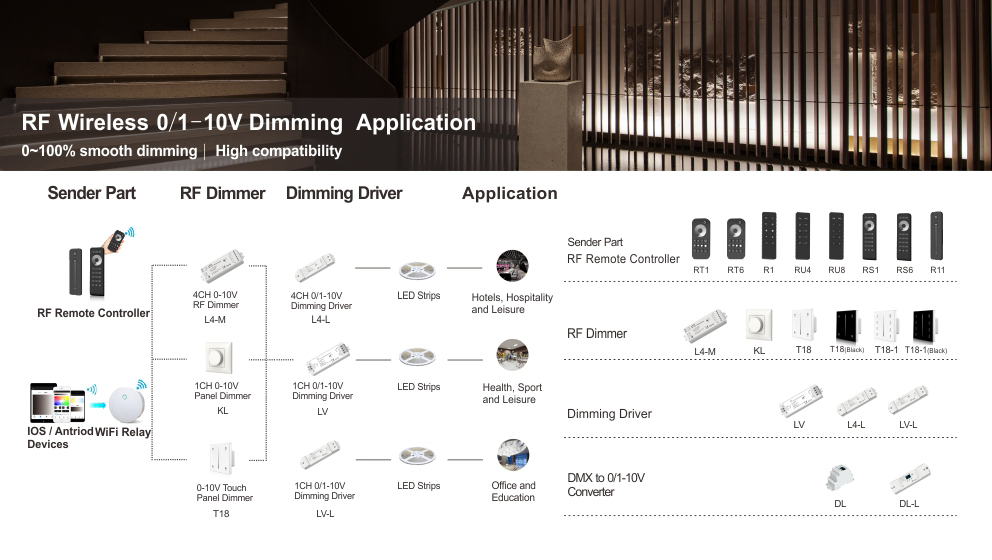

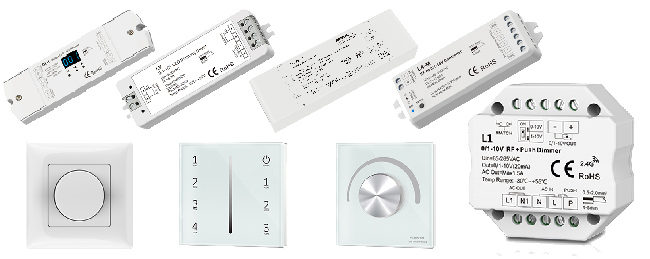

Skydance 0/1-10V series includes 0/1-10V panel dimmer, RF or DMX to 0/1-10V converter, 0/1-10V DC dimming driver, 0/1-10V dimmable constant voltage LED driver, 0/1-10V dimmable constant current LED driver, providing a complete 0/1-10V lighting control solution.

Things You Need To Know About 0-10V Dimmer & Dimming

Shop By 0/1-10V Dimming Type

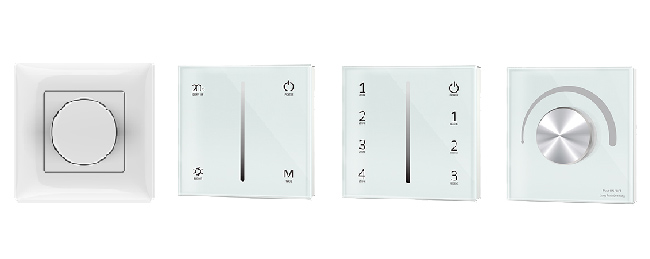

  • 0/1-10V Panel Dimmer0/1-10V Panel Dimmer

    1. Includes knob panel and touch panel(white&black glass).

    2. AC100-240V power input, output 1/4 channel active 0/1-10V signal.

    3. 256 levels 0-100% dimming smoothly without any flash.

    4. With high voltage AC relay output.

    5. Can be matched with RF remote control, up to 10 remote control.

    Things You Need To Know About 0-10V Dimmer & Dimming

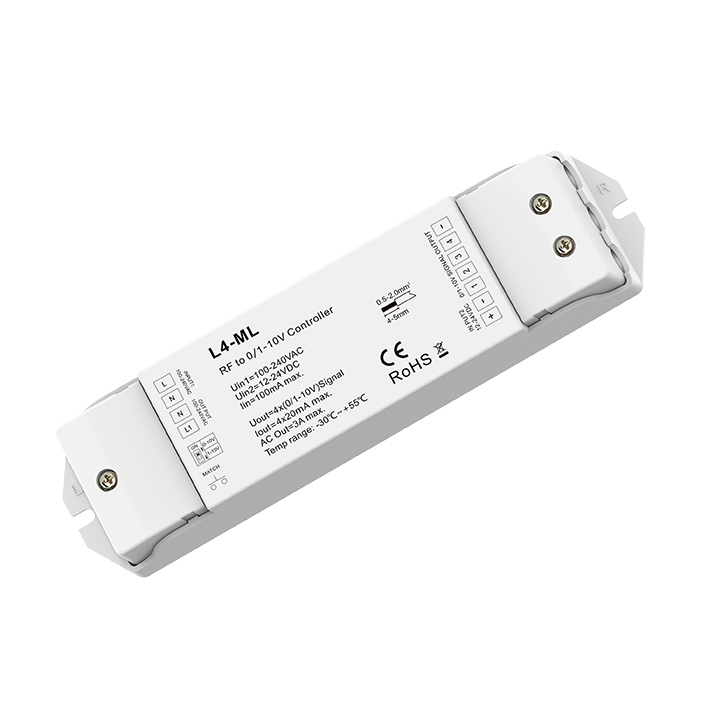

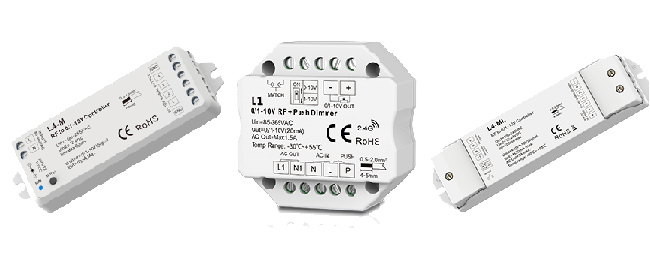

  • 0/1-10V Signal Converter0/1-10V Signal Converter

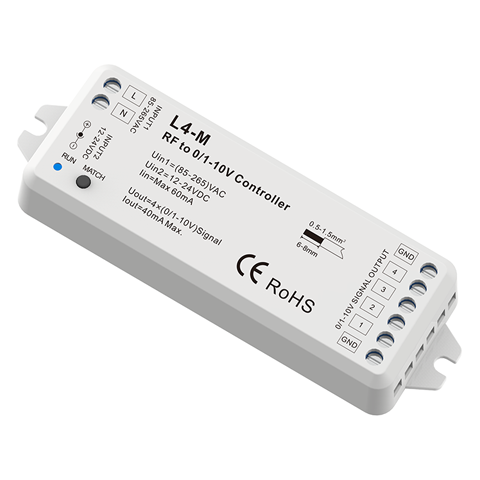

    1. Includes RF 0/1-10V dimmer and DMX 0/1-10V decoder.

    2. The RF 0/1-10V dimmer output 1 or 4 channel 0/1-10V signal, which is matched with the RF dimming remote control.

    3. The DMX 0/1-10V decoder output 4 channel 0/1-10V signal, compatible with DMX512/RDM standard protocol, andset the DMX address by digital tube display key.

    Things You Need To Know About 0-10V Dimmer & Dimming

  • 0/1-10V DC Dimming Driver0/1-10V DC Dimming Driver

    1. DC12/24/36V power input, 1/4 channels 0/1-10V signal input, 1/4 channels PWM constant voltage output.

    2. 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.

    3. Compatible with active and passive 0/1-10V dimmer, can be connected to fluorescent dimming system.

    4. Connect with external push switch to achieve on/off and 0-100% dimming function.

    5. Work with power repeater to expand output unlimitedly.

    Things You Need To Know About 0-10V Dimmer & Dimming

  • 0/1-10V CV LED Driver0/1-10V CV LED Driver

    1. AC100-240V input, DC12/24V output, 1 channel PWM constant voltage.

    2. Output power 12-150W.

    3. Dimming interface: 0-10V, 1-10V, 10V PWM, Resistance, AC Push-Dim.

    4. If use 0/1-10V dimmer with RF function, the 0/1-10V dimmable driver can be RF remoted.

    5. Over-heat / Over-load / Short circuit protection, recover automatically.

    6. 5 Year, 50,000hr warranty.

    Things You Need To Know About 0-10V Dimmer & Dimming

  • 0/1-10V CC LED Driver0/1-10V CC LED Driver

    1. AC100-240V input, DC10-52V, 150-1750mA output, 1 channel PWM constant current.

    2. Output power 12-50W.

    3. Dimming interface: 0-10V, 1-10V, 10V PWM, Resistance, AC Push-Dim.

    4. If use 0/1-10V dimmer with RF function, the 0/1-10V dimmable driver can be RF remoted.

    5. The output current can be selected by the DIP switch.

    6. Over-heat / Over-load / Short circuit protection, recover automatically.

    7. 5 Year, 50,000hr warranty.

    Things You Need To Know About 0-10V Dimmer & Dimming
